RIGHT HANDLE SWITCH (MODEL E,MODEL G E17,E18,E22)

TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

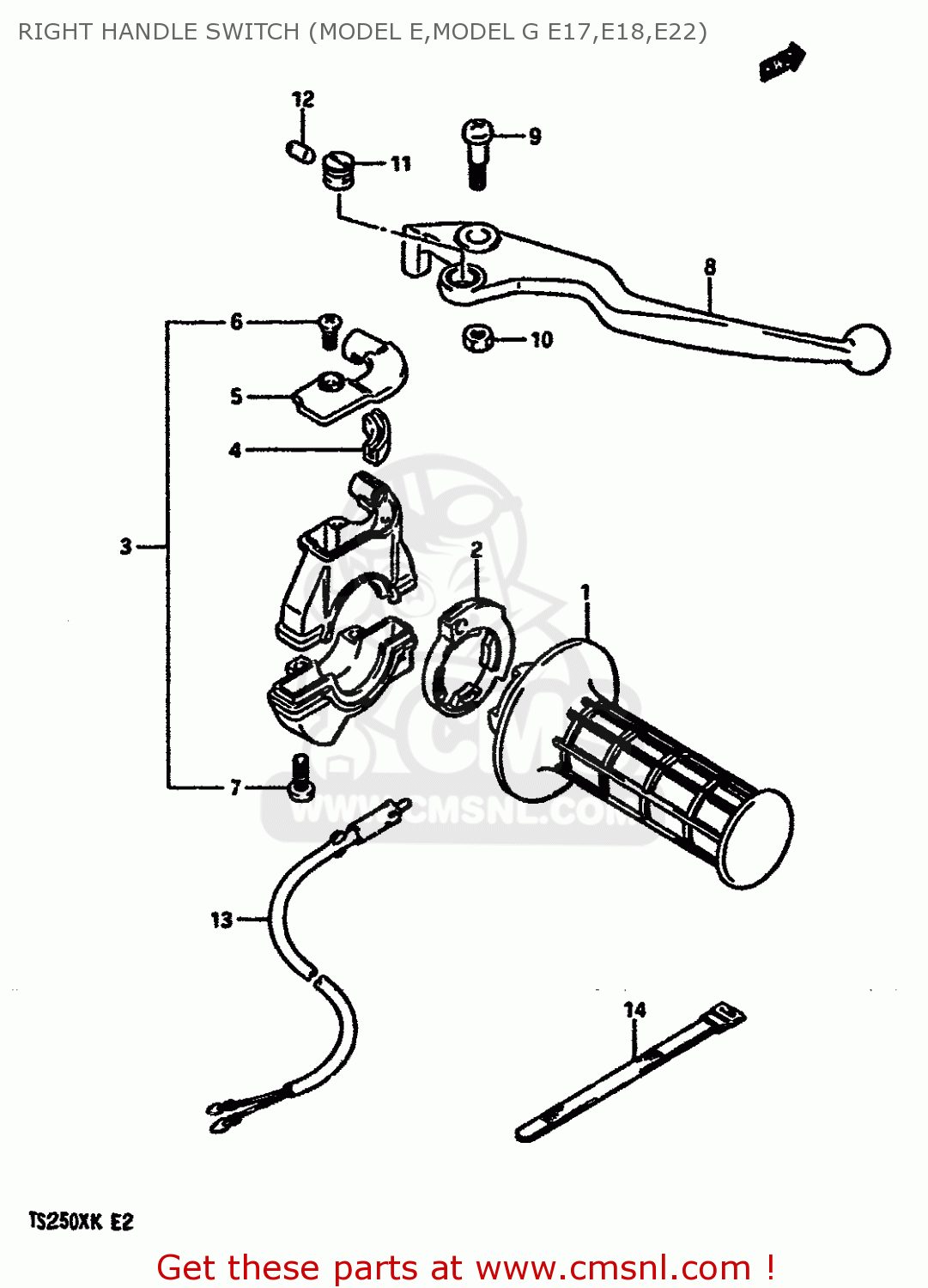

Right handle switch (model e,model g e17,e18,e22) diagram TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

5711014300
ref: 1

GRIP,THROTTLE

€ 25.00

5711420410
ref: 2

ROTOR,THROTTLE GRIP

€ 6.00

5710020411
ref: 3

CASE ASSY,THROTTLE

€ 53.50

5712220410
ref: 4

GUIDE PIECE,THROTTLE

€ 4.50

5712920411
ref: 5

COVER,THROTTLE CASE

€ 8.50

0213204068
ref: 6

SCREW

€ 2.50

0211205168
ref: 7

SCREW

€ 2.50

5742113A00
ref: 8

LEVER,BRAKE

€ 19.00

5743113010
ref: 9

SCREW

€ 5.50

0831921068
ref: 10

NUT 6MM

€ 2.00

5744313A00
ref: 11

ADJUSTER

€ 8.00

5744413A00
ref: 12

ROD,PUSH

€ 6.50

5746013001
ref: 13

SWITCH ASSY,STOP

€ 18.00

0940712402
ref: 14

CLAMP(L:120)

€ 3.00
