BATTERY

TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

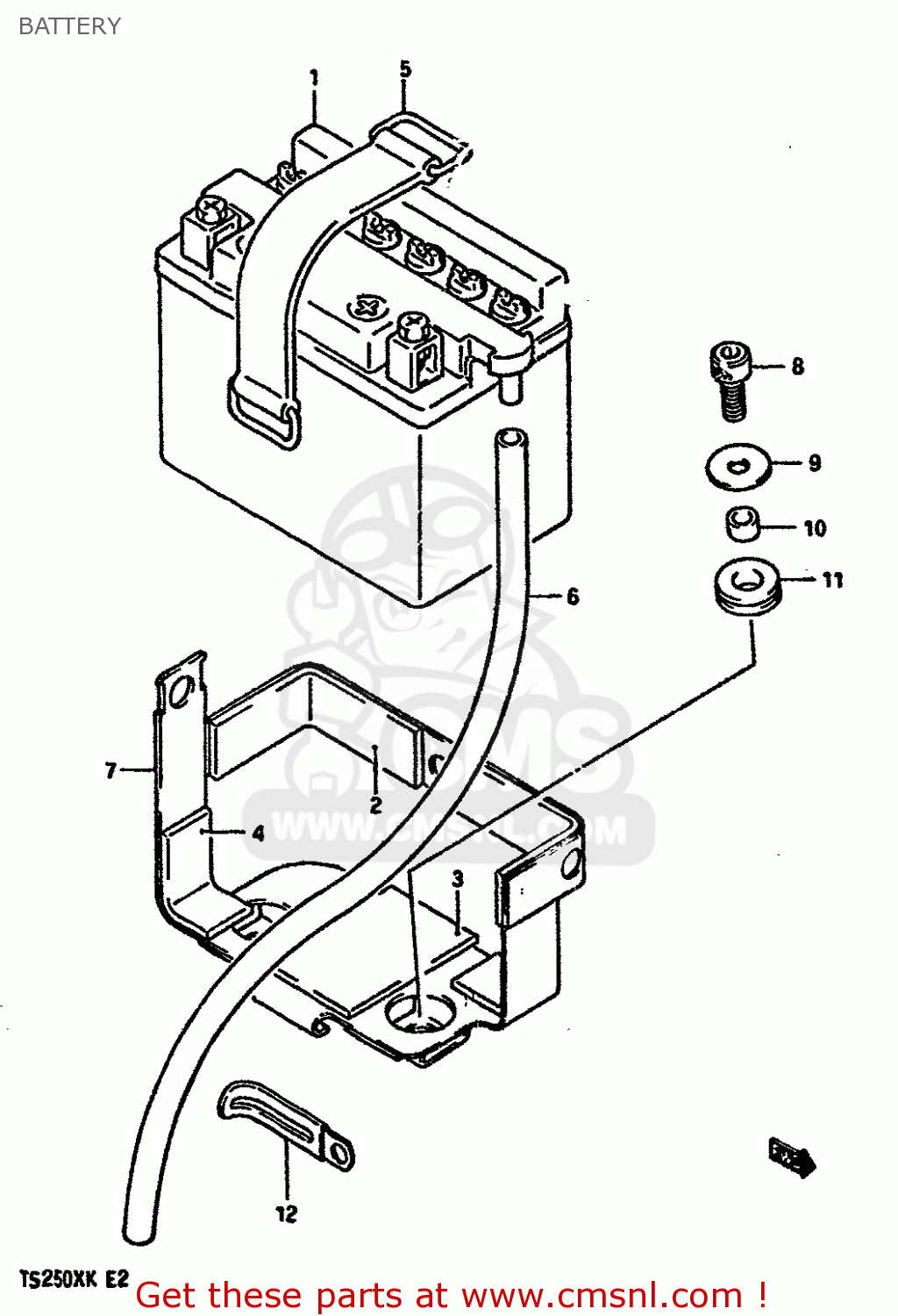

Battery diagram TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

3361002500
ref: 1

BATTERY ASSY(YB4L-B,12V4.2AH)

€ 26.50

3365201A00
ref: 2
20X130-20X40

PROTECTOR,BATTERY

€ 5.00

3365208410
ref: 3

PROTECTOR,BATTERY

€ 5.00

3365229100
ref: 4

PROTECTOR,20X9

€ 5.00

0946200046
ref: 5

BAND

€ 4.50

3368031003
ref: 6
L:600-500

HOSE,BATTERY EXHAUST

€ 4.50

4154013A01
ref: 7

HOLDER,BATTERY

€ 15.00

0110706167
ref: 8

BOLT

€ 3.00

0916006027
ref: 9

WASHER (6.5X20X1.2)

€ 2.00

0918006073
ref: 10

SPACER

€ 2.00

0932008030
ref: 11

CUSHION

€ 3.00

12-1

0940406404
ref: 12-1
MODEL E/G/H

CLAMP

€ 3.00

12-2

0940406422
ref: 12-2
MODEL J/K

CLAMP

€ 2.50
