HEADLAMP HOUSING-FRONT FENDER (MODEL J/K)

TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

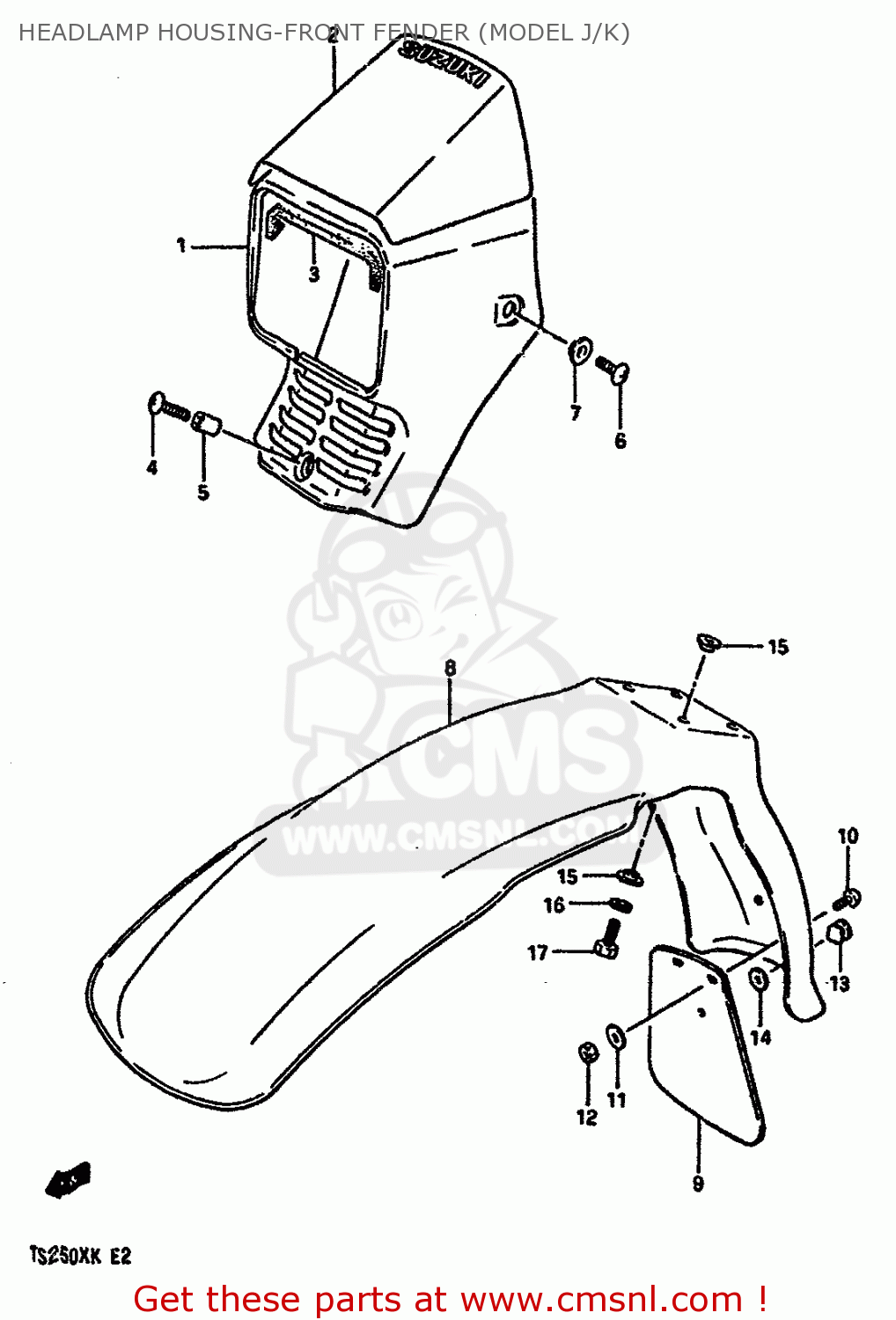

Headlamp housing-front fender (model j/k) diagram TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

HEADLAMP HOUSING-FRONT FENDER (MODEL J/K) TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)
HEADLAMP HOUSING-FRONT FENDER (MODEL J/K) TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)
HEADLAMP HOUSING-FRONT FENDER (MODEL J/K) TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
5181013A1021C
ref: 1-1
COVER,HEADLAMP (BLACK)
€ 85.00
1-2
5181013A1014L
ref: 1-2
MODEL J
COVER,HEADLAMP (WHITE)
€ 85.00
1-3
5181013A1030H
ref: 1-3
MODEL K
COVER,HEADLAMP (WHITE)
€ 85.00
1-4
5181013A1025Y
ref: 1-4
COVER,HEADLAMP (YELLOW)
€ 85.00
2-1
6872513A109EP
ref: 2-1
FOR 14L,25Y,30H
TAPE SET
€ 23.50
2-2
6872513A107TC
ref: 2-2
FOR 21C
TAPE SET
€ 0.00
3
4854213A00
ref: 3
CUSHION
€ 0.00
4
0214206357
ref: 4
SCREW
0214206357
€ 2.00
5
0918006036
ref: 5
SPACER(6.8X10X24.2)
0918006036
€ 2.50
6
0214206127
ref: 6
SCREW 6X12
0214206127
€ 1.50
7
0916906010
ref: 7
WASHER
0916906010
€ 3.00
8-1
531111450221C
ref: 8-1
FENDER, FRONT (BLACK)
€ 79.00
8-2
531111450214L
ref: 8-2
MODEL J
FENDER, FRONT (WHITE)
€ 79.00
8-3
531111450230H
ref: 8-3
MODEL K
FENDER,FRONT (WHITE)
€ 79.00
8-4
531111450225Y
ref: 8-4
FENDER,FR
531111450225Y
€ 79.00
8-5
531111453121C
ref: 8-5
E15,E16,E17,E22
FENDER,FRONT (BLACK)
€ 79.00
8-6
531111453114L
ref: 8-6
MODEL J E15,E16,E17,
FENDER,FRONT (WHITE)
€ 79.00
8-7
531111453130H
ref: 8-7
MODEL K E16,E17,E22
FENDER,FRONT (WHITE)
€ 79.00
8-8
531111453125Y
ref: 8-8
E15,E16,E17,E22
FENDER,FRONT (YELLOW)
€ 79.00
9
5331113A00
ref: 9
E15,E16,E17,E22
MUD FLAP
5331113A00
€ 21.00
10
0214205104
ref: 10
E15,E16,E17,E22
SCREW 5X10
0214205104
€ 2.50
11
0916005013
ref: 11
E15,E16,E17,E22
WASHER(5.2X16X1)
0916005013
€ 1.50
12
0831022056
ref: 12
E15,E16,E17,E22
NUT 5MM
0831022056
€ 2.50
13
0932106024
ref: 13
E15,E16,E17,E22
CUSHION
0932106024
€ 2.00
14
0916106013
ref: 14
E15,E16,E17,E22
WASHER
€ 2.50
15
0916906053
ref: 15
WASHER
0916906053
€ 2.00
16
0832121067
ref: 16
MODEL J
WASHER,LOCK
0832121067
€ 2.50
17-1
0110706167
ref: 17-1
MODEL J
BOLT
0110706167
€ 3.00
17-2
0113406168
ref: 17-2
MODEL K
BOLT
€ 2.50
13
0932106024
ref: 13
E15,E16,E17,E18,E22
CUSHION
0932106024
€ 2.00
14
0916106013
ref: 14
E15,E16,E17,E18,E22
WASHER
€ 2.50
15
0916906053
ref: 15
WASHER
0916906053
€ 2.00
16
0832121067
ref: 16
WASHER,LOCK
0832121067
€ 2.50
17
0110706167
ref: 17
BOLT
0110706167
€ 3.00
