CYLINDER (MODEL E)

TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

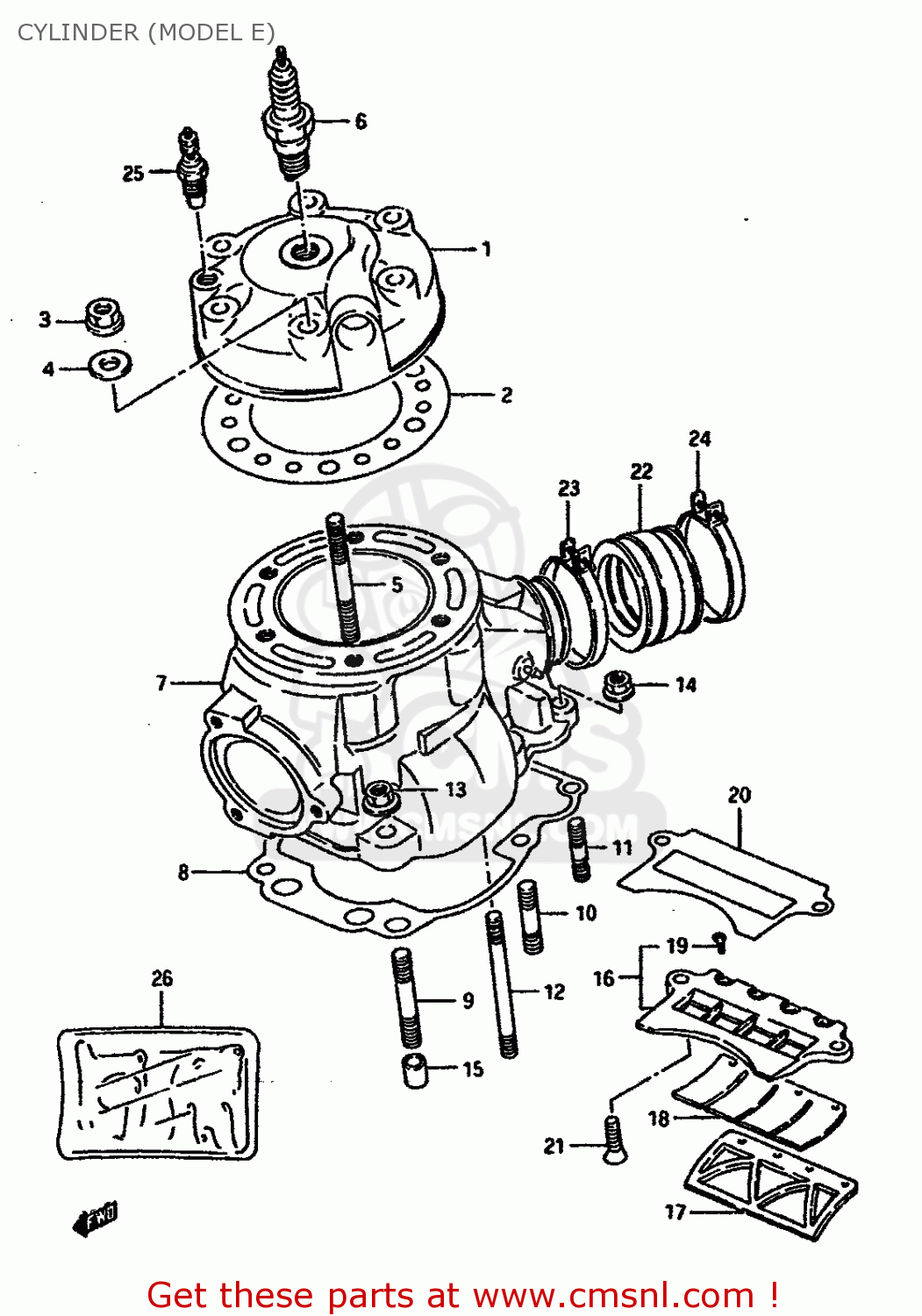

Cylinder (model e) diagram TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

CYLINDER (MODEL E) TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)
CYLINDER (MODEL E) TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)
CYLINDER (MODEL E) TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
1111113A02
ref: 1
HEAD,CYLINDER
€ 128.00
2
1114113A01
ref: 2
GASKET,CYLINDER HEAD (NAS)
€ 39.50
3
0831616085
ref: 3
NUT 8MM
0831616085
€ 3.00
4
0916008053
ref: 4
WASHER (8.5X19X2.3)
0916008053
€ 2.00
5
0910808105
ref: 5
STUD
0910808105
€ 4.00
6-1
0948200208
ref: 6-1
PLUG,SPARK(NGK B-8EN)
0948200208
€ 16.00
6-2
0948200325
ref: 6-2
E4,E17,E18,E21
SPARK PLUG (NGK,BR8EV)
€ 81.50
7
1121013A04
ref: 7
CYLINDER
€ 570.50
8-1
1124119A00
ref: 8-1
GASKET,CYLINDER
1124119A00
€ 14.00
8-2
1124119A00H17
ref: 8-2
E17
GASKET,CYLINDER (NAS)
1124119A00H17
€ 14.00
9
0910808161
ref: 9
STUD
€ 3.50
10
0142108255
ref: 10
STUD BOLT (8X25)
€ 2.50
11
0142106205
ref: 11
STUD BOLT L:20
0142106205
€ 2.50
12
0142106605
ref: 12
STUD BOLT
€ 2.50
13
0831616085
ref: 13
NUT 8MM
0831616085
€ 3.00
14
0831616064
ref: 14
NUT 6MM
0831616064
€ 2.50
15
0421111169
ref: 15
PIN
0421111169
€ 2.00
16
1315013A00
ref: 16
VALVE ASSY,REED
1315013A00
€ 110.50
17
1315213A00
ref: 17
STOPPER,REED VALVE
€ 110.50
18
1315313A00
ref: 18
VALVE,REED
€ 110.50
19
1315413A00
ref: 19
SCREW,REED VALVE
1315413A00
€ 2.00
20-1
1315613A00
ref: 20-1
GASKET,REED VALVE (MCA)
1315613A00
€ 5.00
20-2
1315613A00H17
ref: 20-2
E17
GASKET,REED VALVE (NAS)
1315613A00H17
€ 5.00
21
0212206208
ref: 21
SCREW
0212206208
€ 2.00
22
1311113A00
ref: 22
PIPE,INTAKE
€ 27.00
23
0940252306
ref: 23
CLAMP
0940252306
€ 6.00
24
0940254306
ref: 24
CLAMP
€ 4.00
25
3485038400
ref: 25
GAUGE ASSY,WATER TEMPERATURE
€ 104.00
26
1140013861
ref: 26
OPT EXCEPT E17
GASKET SET
€ 92.00
