CUSHION LEVER

TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

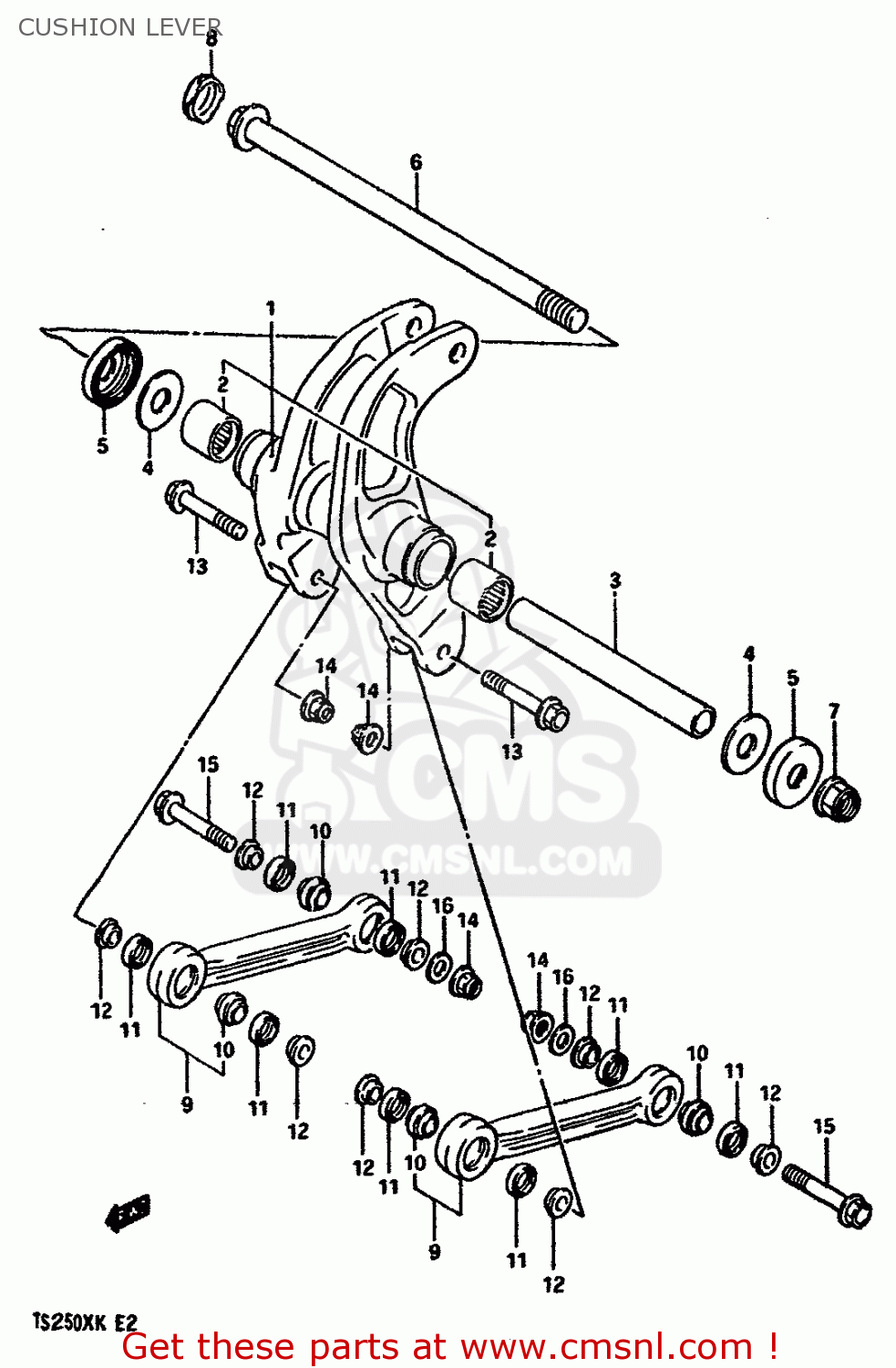

Cushion lever diagram TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

CUSHION LEVER TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

CUSHION LEVER TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

6260013871
ref: 1

LEVER SET,REAR CUSHION

€ 0.00

2

0926317018
ref: 2

BEARING(17X25X20)

€ 36.00

3

6262313A00
ref: 3

SPACER

€ 0.00

4

0821112283
ref: 4

WASHER

€ 3.00

5

6262448700
ref: 5

DUST SEAL,REAR CUSHION,LEFT

€ 5.50

6

6262114105
ref: 6

SHAFT,REAR CUSHION LEVER

€ 16.50

7

0831931128
ref: 7

NUT 12MM

€ 4.00

8-1

6122213A10019
ref: 8-1
MODEL E/G

CAP,LEVER (BLACK)

€ 0.00

8-2

6122213A1019F
ref: 8-2
MODEL E/G/H/J/K

CAP,LEVER (BLUE)

€ 0.00

9

6260013880
ref: 9

ROD SET,CUSHION LEVER

€ 0.00

10

0926908002
ref: 10

BEARING(8X18X11)

€ 39.50

11

6264713A00
ref: 11

DUST SEAL

€ 4.00

12

6268413A00
ref: 12

SPACER

€ 7.50

13

6231313A00
ref: 13

BOLT

€ 2.50

14

0831931087
ref: 14

NUT

€ 2.50

15

0910308068
ref: 15

BOLT 8X45

€ 4.50

16

0916008042
ref: 16
MODEL E

WASHER

€ 2.50
