OIL TANK

TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

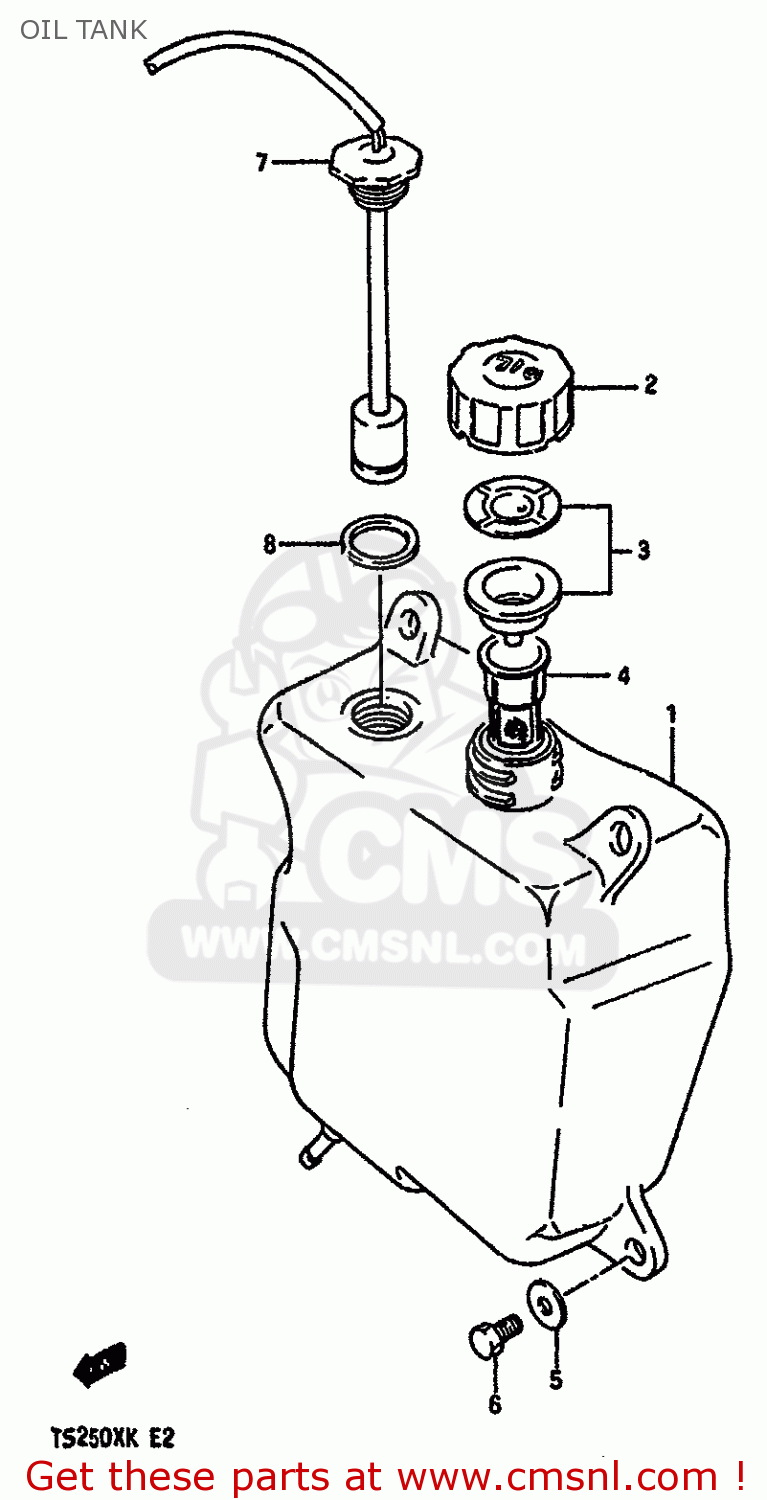

Oil tank diagram TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1-1

4461113A00
ref: 1-1
MODEL E

TANK,OIL

€ 44.00

1-2

4461113A01
ref: 1-2
MODEL G/H/J/K

TANK,OIL

€ 44.00

4465105003
ref: 2

CAP,OIL TANK

€ 4.00

4460030832
ref: 3

GASKET SET (NAS)

€ 6.00

4466513A00
ref: 4

NET,OIL TANK

€ 0.00

0916006007
ref: 5
MODEL E/G/H/J

WASHER

€ 2.00

6-1

0110706167
ref: 6-1
MODEL E/G/H/J

BOLT

€ 3.00

6-2

0911606006
ref: 6-2
MODEL J

BOLT(6X16)

€ 2.00

7-1

3788043001
ref: 7-1
MODEL E

SWITCH ASSY, OIL LEVEL

€ 34.50

7-2

3788013A00
ref: 7-2
MODEL G/H/J/K

SWITCH ASSY, OIL LEVEL

€ 34.50

4464331000
ref: 8

GASKET (NAS)

€ 2.50
