BATTERY

VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

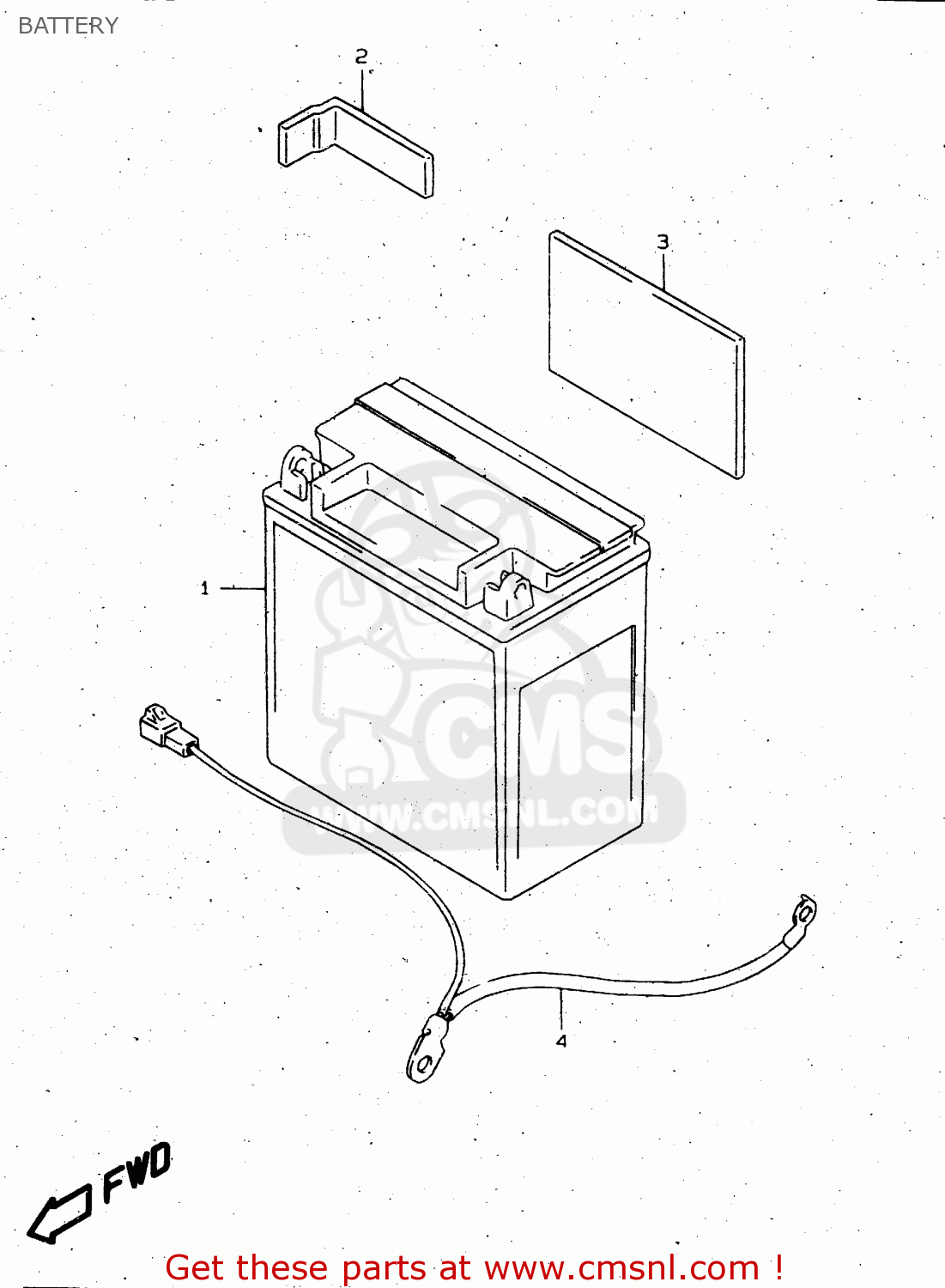

Battery diagram VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

BATTERY VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

BATTERY VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

3361038B50
ref: 1
FTH16-BS-1

BATTERY ASSEMBLY 12V14AH,F

€ 74.50

2

3365207D00
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(80X80X2)

€ 4.50

3

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

4

3386038B00
ref: 4

WIRE,BATTERY MINUS LEAD

€ 14.00
