STARTING MOTOR

VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

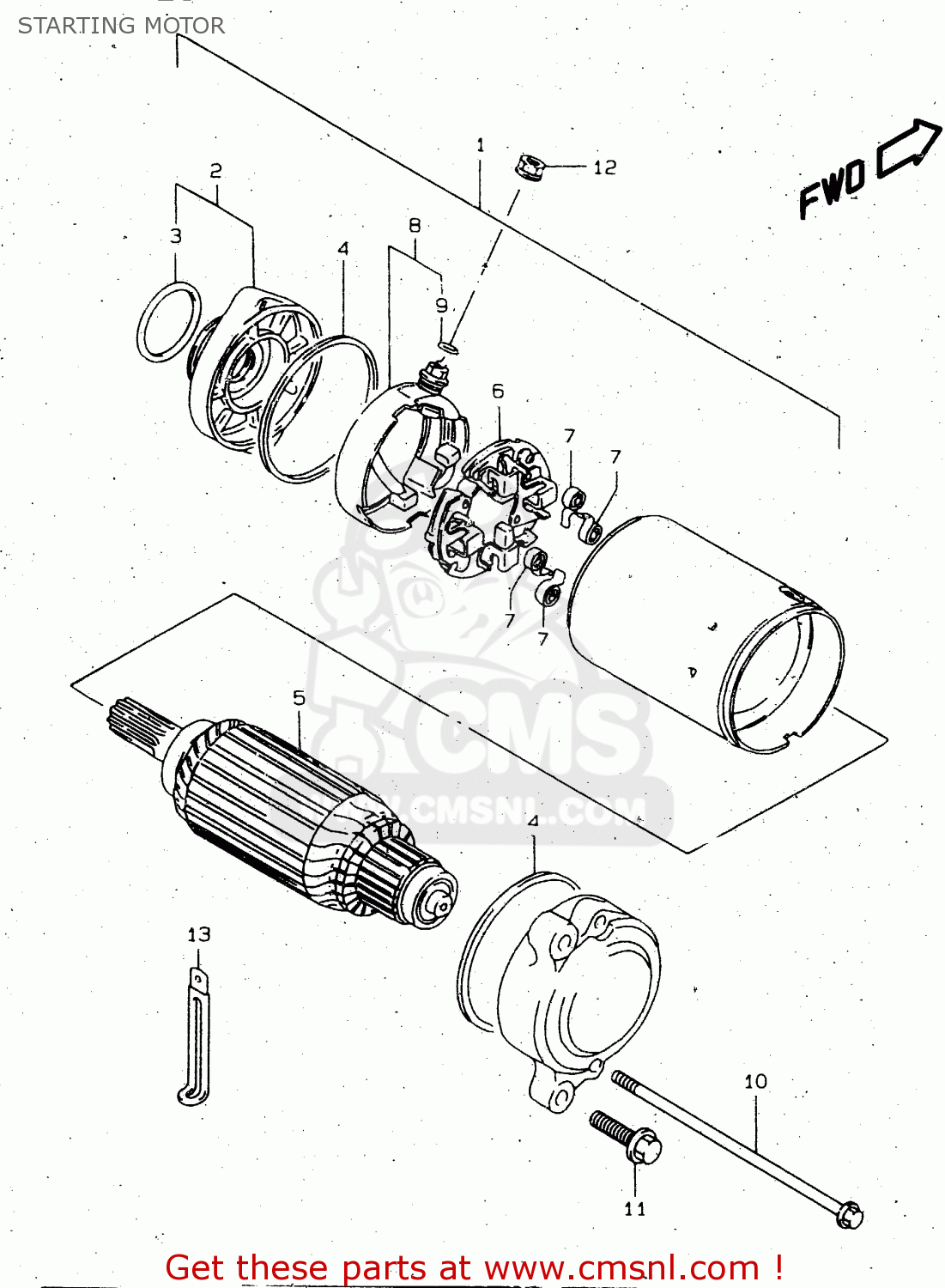

Starting motor diagram VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

STARTING MOTOR VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

STARTING MOTOR VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

3110038B01
ref: 1
MODEL T/V/W

MOTOR ASSEMBLY,STARTING

€ 973.50

1

3110038B02
ref: 1
MODEL X

MOTOR ASSY,STARTING

€ 973.50

2

3115038B00
ref: 2

BRACKET SET

€ 114.50

3

3115638B00
ref: 3

O-RING

€ 9.50

4

3126432E00
ref: 4
<-31264-31300

SQUARE RING

€ 7.50

5

3131038B01
ref: 5

ARMATURE

€ 278.50

6

3113238B00
ref: 6

HOLDER SET,BRUSH

€ 45.00

7

3113538B00
ref: 7

SPRING,BRUSH

€ 3.50

8

3113038B00
ref: 8

TERMINAL SET,BRUSH

€ 45.00

9

3114349040
ref: 9

O RING

€ 3.00

10

3128124B10
ref: 10

BOLT

€ 5.00

11

0154706257
ref: 11

BOLT

€ 2.50

12

0836135068
ref: 12

NUT

€ 2.00

13

0940406432
ref: 13
<-09404-06429

CLAMP(L:65)

€ 2.50
