CRANKCASE

VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

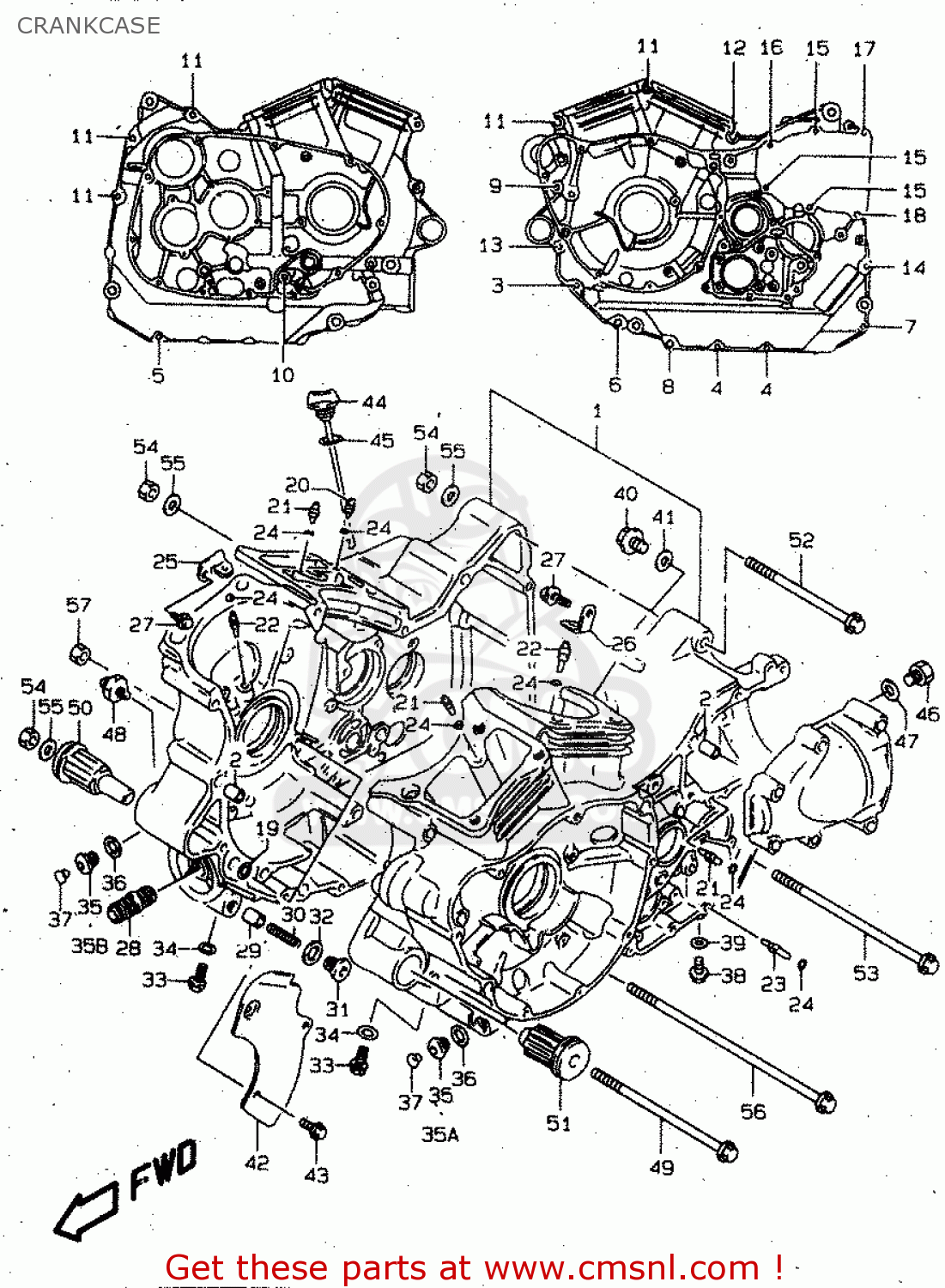

Crankcase diagram VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

CRANKCASE VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
CRANKCASE VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
CRANKCASE VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
1130138815
ref: 1
MODEL T/V
CRANKCASE SET
€ 3,421.50
1
1130138815
ref: 1
MODEL W, ~E.NO.17156
CRANKCASE SET
€ 3,421.50
1
1130138816
ref: 1
MODEL W, E.NO.171566
CRANKCASE SET
€ 3,421.50
1
1130138840
ref: 1
MODEL X
CRANKCASE SET
€ 2,516.00
2
0920611017
ref: 2
PIN(8.4X11X20)
0920611017
€ 6.50
3
0155006557
ref: 3
BOLT
0155006557
€ 2.50
4
0155006657
ref: 4
BOLT
0155006657
€ 3.00
5
0155006857
ref: 5
BOLT
0155006857
€ 3.50
6
0155008557
ref: 6
BOLT
0155008557
€ 3.00
7
0155008657
ref: 7
BOLT
€ 3.00
8
0910308215
ref: 8
BOLT(8X70)
€ 3.50
9
0155008907
ref: 9
BOLT
0155008907
€ 3.50
10
0910308098
ref: 10
BOLT(8X115)
0910308098
€ 3.00
11
0910308164
ref: 11
BOLT(8X95)
0910308164
€ 3.50
12
0910308214
ref: 12
BOLT(8X50)
€ 4.50
13
0910308215
ref: 13
BOLT(8X70)
€ 3.50
14
0910308216
ref: 14
BOLT(8X80)
€ 4.50
15
0155008407
ref: 15
BOLT
0155008407
€ 3.50
16
0155008507
ref: 16
BOLT
0155008507
€ 3.50
17
0155008557
ref: 17
BOLT
0155008557
€ 3.00
18
0155008657
ref: 18
BOLT
€ 3.00
19
0928012009
ref: 19
O RING(D:1.9,ID:12.6)
0928012009
€ 2.50
20
0949344002
ref: 20
JET(2.2)
€ 12.00
21
0949328010
ref: 21
JET,AIR(14)
0949328010
€ 10.50
22
0949380009
ref: 22
JET,PISTON COOLING(0.8)
€ 14.00
23
0949324011
ref: 23
JET,MISSION OIL(1.4)
€ 9.00
24
0928004004
ref: 24
O RING(D:1.2,ID:4)
0928004004
€ 2.00
25
1643838B00
ref: 25
PLATE,PISTON JET FR
€ 1.50
26
1643938B00
ref: 26
PLATE,PISTON JET RR
€ 2.00
27
0155006103
ref: 27
MODEL T/V/W
BOLT
0155006103
€ 2.50
27
0910606075
ref: 27
MODEL X
BOLT(6X12)
0910606075
€ 2.50
28
1659106B00
ref: 28
UNION,OIL STAND
1659106B00
€ 6.00
29
1644234301
ref: 29
PLUNGER,OIL CONTROLL
1644234301
€ 16.00
30
0944009030
ref: 30
SPRING
€ 3.00
31
0924816008
ref: 31
MODEL T/V
PLUG
0924816008
€ 4.00
31
0924816010
ref: 31
MODEL W/X
PLUG
0924816010
€ 4.50
32
0916816002
ref: 32
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
33
0155008127
ref: 33
BOLT
0155008127
€ 3.50
34
0916808015
ref: 34
GASKET(8.2X14X1).6 (NAS)
0916808015
€ 2.50
35
0924814005
ref: 35
~E.NO.171565
PLUG,14X12
0924814005
€ 5.00
35A
0924814005
ref: 35A
E.NO.171566~
PLUG,14X12
0924814005
€ 5.00
35B
0924714027
ref: 35B
E.NO.171566~
PLUG(14X11.5)
€ 2.00
36
0916814002
ref: 36
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
37
0925008014
ref: 37
~E.NO.162132
CAP(OD:12)
0925008014
€ 3.50
38
0155006103
ref: 38
BOLT
0155006103
€ 2.50
39
0916806024
ref: 39
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
40
0924712006
ref: 40
PLUG(12X10)
0924712006
€ 2.50
41
0916812002
ref: 41
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
42
1152138B01
ref: 42
PLATE,OIL SEPARATOR
€ 4.00
43
0154706123
ref: 43
BOLT
0154706123
€ 2.00
44
1197038B01
ref: 44
MODEL T/V/W
GAUGE,OIL LEVEL
1197038B01
€ 17.50
44
1197038B10
ref: 44
MODEL X
GAUGE,OIL LEVEL
1197038B10
€ 20.50
45
0928017003
ref: 45
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
46
0155012203
ref: 46
~E.NO.171959
BOLT
€ 3.00
46
0924712106
ref: 46
E.NO.171960~
PLUG,12X20
0924712106
€ 2.50
47
0916812002
ref: 47
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
48
3782033D00
ref: 48
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
49
0910310169
ref: 49
BOLT(10X155)
0910310169
€ 16.00
50
1166038B00
ref: 50
BUSH,ENGINE MOUNTING,R
1166038B00
€ 33.00
51
1166038A00
ref: 51
BUSH,ENGINE MOUNTING
1166038A00
€ 29.00
52
0910310168
ref: 52
BOLT(10X135)
€ 10.50
53
0910310170
ref: 53
BOLT(10X180)
0910310170
€ 13.00
54
0915910064
ref: 54
NUT
0915910064
€ 8.50
55
0832201107
ref: 55
MODEL T
WASHER
0832201107
€ 2.50
55
0832201103
ref: 55
MODEL V/W/X
WASHER
0832201103
€ 2.50
56
0910310205
ref: 56
BOLT(10X225)
0910310205
€ 9.50
57
0915910047
ref: 57
NUT
0915910047
€ 7.50
