CARBURETOR (REAR)

VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

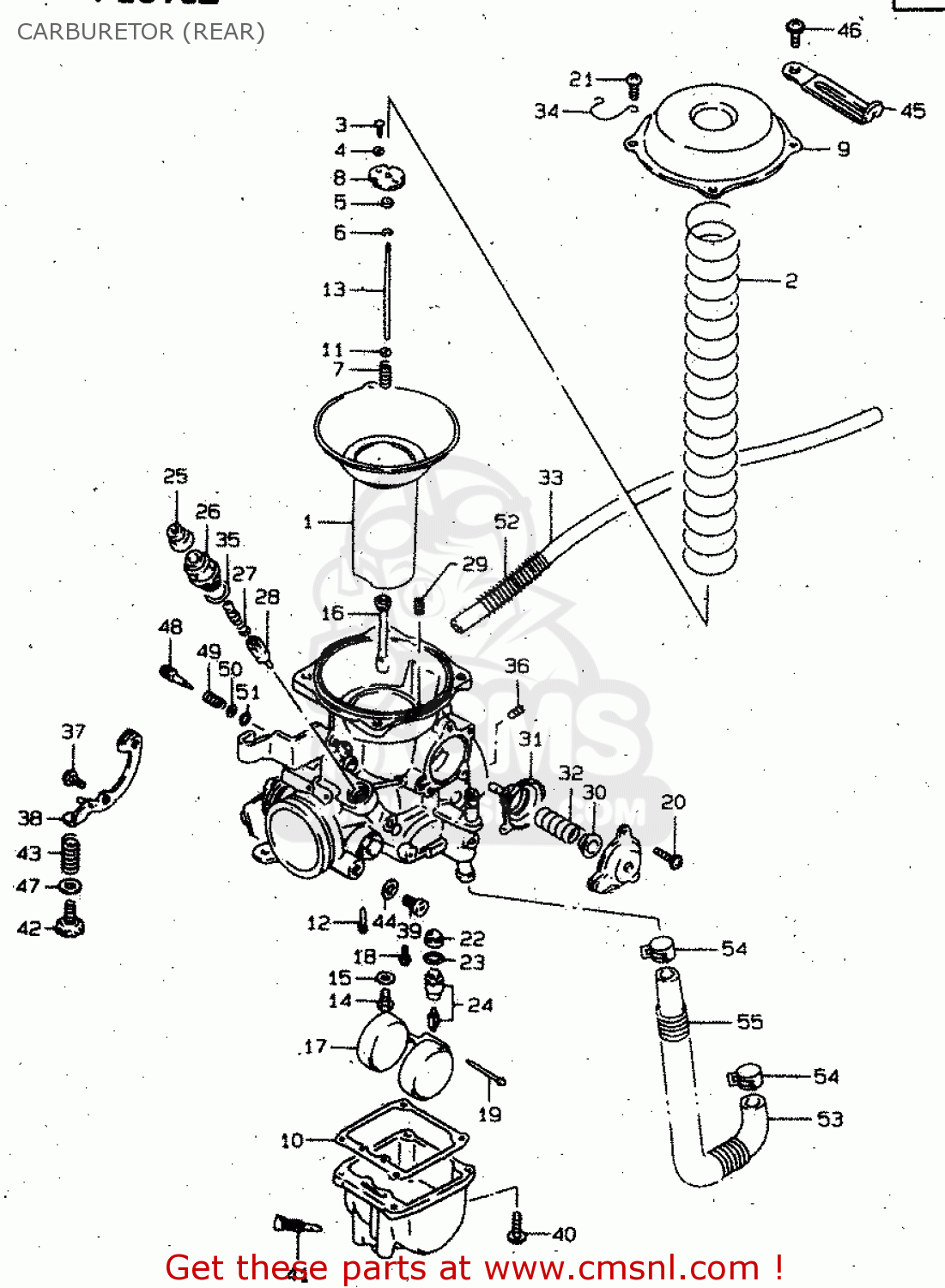

Carburetor (rear) diagram VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

CARBURETOR (REAR) VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
CARBURETOR (REAR) VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
CARBURETOR (REAR) VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
0
1322038BB0
ref: 0
CARBURETOR ASSY,RR
€ 777.00
0
1322038BC0
ref: 0
E17, E22
CARBURETOR ASSY,RR
€ 634.00
0
1322038B90
ref: 0
E24
CARBURETOR ASS
€ 731.50
0
1322038BD0
ref: 0
E37, P37
CARBURETOR ASSY, REAR
€ 0.00
1
1350038B10
ref: 1
DIAPHRAGM ASSY
1350038B10
€ 231.00
2
1350305A10
ref: 2
SPRING,DIAPHRAGM
1350305A10
€ 12.00
3
0211203063
ref: 3
SCREW
0211203063
€ 2.00
4
0832121033
ref: 4
WASHER,LOCK
0832121033
€ 1.50
5
1338747010
ref: 5
RING
1338747010
€ 7.50
6
1339410010
ref: 6
CLIP
1339410010
€ 4.50
7
1338844030
ref: 7
SPRING
1338844030
€ 6.00
8
1338937400
ref: 8
PLATE
1338937400
€ 5.50
9
1350238A10
ref: 9
COVER,DIAPHRAGM
€ 37.50
10
1325138A10
ref: 10
GASKET,FLOAT CHAMBER (NAS)
1325138A10
€ 8.00
11
1338244030
ref: 11
WASHER
1338244030
€ 3.50
12
0949255014
ref: 12
JET,PILOT(55)
0949255014
€ 16.50
12
0949257004
ref: 12
E24
JET,PILOT
0949257004
€ 10.50
13
1338338B80
ref: 13
NEEDLE,JET
1338338B80
€ 17.50
14
0949126011
ref: 14
JET,MAIN(130)
0949126011
€ 11.50
14
0949128010
ref: 14
E24
JET,MAIN(140)
0949128010
€ 8.50
15
1338203110
ref: 15
<-13332-44080
WASHER
1338203110
€ 2.50
16
0949400856
ref: 16
JET,NEEDLE(P-3)
0949400856
€ 37.00
17
1325223010
ref: 17
FLOAT
1325223010
€ 19.00
18
1360205A10
ref: 18
SCREW
1360205A10
€ 4.00
19
1325492311
ref: 19
PIN,FLOAT
1325492311
€ 2.00
20
0211204107
ref: 20
SCREW
0211204107
€ 2.00
21
0211204083
ref: 21
SCREW
€ 2.00
22
1337684110
ref: 22
FILTER
€ 6.50
23
1337444080
ref: 23
O-RING,NEEDLE VALVE
1337444080
€ 6.00
24
1337039A00
ref: 24
VALVE ASSY,NEEDLE
1337039A00
€ 67.50
24
1337038E00
ref: 24
E37, P37
VALVE ASSY,NEEDLE(NI)
€ 67.50
25
1368104010
ref: 25
CAP
1368104010
€ 3.00
26
1341843410
ref: 26
HOLDER,GUIDE
1341843410
€ 6.50
27
1341722010
ref: 27
SPRING
1341722010
€ 3.00
28
1341101400
ref: 28
PLUNGER,STARTER
1341101400
€ 11.50
29
0949331001
ref: 29
JET,AIR(1.55)
€ 12.00
29
0949338002
ref: 29
E24
JET,AIR(1.9)
0949338002
€ 10.00
30
1348237300
ref: 30
E24
PLATE
€ 0.00
31
1348005A10
ref: 31
DIAPHRAGM ASSY
1348005A10
€ 54.50
32
1348138B40
ref: 32
SPRING
1348138B40
€ 5.50
33
0935250823600
ref: 33
L:600->175
HOSE(5X8.2X600)
0935250823600
€ 13.00
34
1369202500
ref: 34
CLIP
€ 7.00
35
1327847090
ref: 35
O RING
1327847090
€ 2.00
36
0949240018
ref: 36
JET,PILOT(40)
0949240018
€ 16.00
36
0949260012
ref: 36
E24
JET,AIR(60)
0949260012
€ 7.50
37
1360205A30
ref: 37
SCREW
1360205A30
€ 4.50
38
1355445C20
ref: 38
LEVER ASSY
1355445C20
€ 38.50
38
1355438B00
ref: 38
E24
LEVER ASSEMBLY
1355438B00
€ 38.50
39
1360573000
ref: 39
SCREW
1360573000
€ 10.50
40
1360104148
ref: 40
SCREW
1360104148
€ 2.50
41
1324713A00
ref: 41
SCREW,DRAIN
1324713A00
€ 5.50
42
1326739E50
ref: 42
ADJUSTER
1326739E50
€ 13.00
42
1326738A10
ref: 42
E24
ADJUSTER
1326738A10
€ 13.00
43
1327193011
ref: 43
SPRING
1327193011
€ 4.50
44
1324978100
ref: 44
WASHER
1324978100
€ 4.00
45
0940406432
ref: 45
<-09404-06431
CLAMP(L:65)
0940406432
€ 2.50
45
0940406433
ref: 45
E24
CLAMP(L:80)
0940406433
€ 3.00
46
0214204083
ref: 46
SCREW
0214204083
€ 1.50
47
1327737100
ref: 47
WASHER
1327737100
€ 2.00
48
1327947070
ref: 48
SCREW,PILOT
1327947070
€ 11.50
48
1327947070
ref: 48
E17, E22
SCREW,PILOT
1327947070
€ 11.50
48
1327947070
ref: 48
E24
SCREW,PILOT
1327947070
€ 11.50
49
1326847070
ref: 49
SPRING
1326847070
€ 5.00
50
1329129900
ref: 50
WASHER
1329129900
€ 2.00
51
1329529900
ref: 51
O RING,PILOT AIR SCREW
1329529900
€ 4.00
52
1344638B00
ref: 52
SPRING
€ 8.50
53
1580138B00
ref: 53
HOSE,FUEL PUMP & CARBURETOR
€ 14.50
54
0940111407
ref: 54
CLIP
0940111407
€ 2.50
55
0944014030
ref: 55
SPRING
0944014030
€ 25.00
