CLUTCH

VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

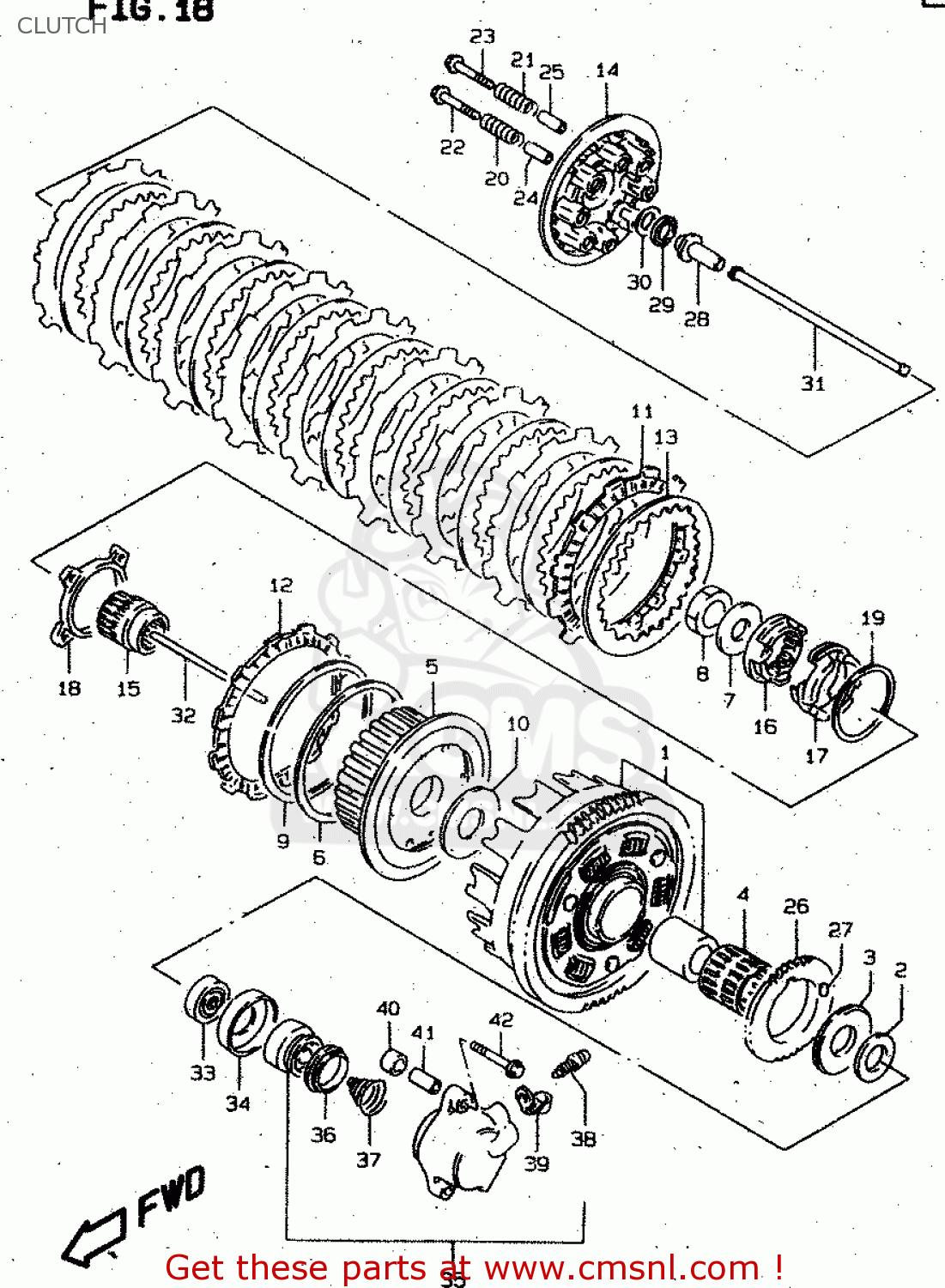

Clutch diagram VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

CLUTCH VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
CLUTCH VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
CLUTCH VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
2120038823
ref: 1
<-21200-38821
GEAR ASSY,PRI DRIVEN
€ 468.00
1
2120038823
ref: 1
MODEL W/X
GEAR ASSY,PRI DRIVEN
€ 468.00
2
0916025066
ref: 2
WASHER(25X38X2.5)
0916025066
€ 6.00
3
0916025067
ref: 3
MODEL T/V/W
WASHER(25X54X2.5)
0916025067
€ 9.00
3
0916025037
ref: 3
MODEL X
WASHER(25X54X2.5)
0916025037
€ 9.00
4
0926335017
ref: 4
BEARING(35X40X35.8)
0926335017
€ 36.50
5
2141038B00
ref: 5
HUB,CLUTCH SLEEVE
2141038B00
€ 136.00
6
2147137400
ref: 6
SEAT,WAVE WASHER(T:1.4)
2147137400
€ 8.00
7
0916422008
ref: 7
WASHER
€ 8.00
8
0914022011
ref: 8
NUT
0914022011
€ 9.00
9
0916400004
ref: 9
WASHER
0916400004
€ 9.00
10
0916025065
ref: 10
WASHER(25X60X2.5)
€ 15.50
11
2144112D01
ref: 11
<-21441-07A02
PLATE,CLUTCH DRIVE (NAS)
2144112D01
€ 16.50
12
2144237401
ref: 12
PLATE,CLUTCH DRIVE(T:3.5) (NAS)
2144237401
€ 11.50
13
2145105A00
ref: 13
PLATE,CLUTCH DRIVEN (NAS)
2145105A00
€ 9.00
14
2146238B00
ref: 14
DISC,CLUTCH PRESSURE
2146238B00
€ 51.50
15
2162138B00
ref: 15
SPACER,CLUTCH SLEEVE HUB
2162138B00
€ 70.00
16
2611138B03
ref: 16
<-26111-38B02
CAM,CLUTCH NO.1
2611138B03
€ 54.50
17
2611238B02
ref: 17
<-26112-38B01
CAM,CLUTCH NO.2
2611238B02
€ 70.50
18
2161338B00
ref: 18
MODEL T/V
SLIDER,CLUTCH SPRING
€ 65.50
18
2161338B01
ref: 18
MODEL W/X
SLIDER,CLUTCH SPRING
2161338B01
€ 65.50
19
0916054002
ref: 19
WASHER(54X62X1)
0916054002
€ 9.50
20
0944014021
ref: 20
SPRING
0944014021
€ 5.00
21
0944014022
ref: 21
SPRING
0944014022
€ 5.00
22
0911606135
ref: 22
BOLT(6X40)
0911606135
€ 3.00
23
0155006353
ref: 23
BOLT
0155006353
€ 2.50
24
0918006177
ref: 24
SPACER(6.4X10X22)
0918006177
€ 7.50
25
0918006276
ref: 25
<-09180-06192
SPACER(6.5X9X24.1)
0918006276
€ 6.50
26
1632138B00
ref: 26
GEAR,OIL PUMP DRIVE
1632138B00
€ 62.50
27
0926106002
ref: 27
PIN(6X6)
0926106002
€ 1.50
28
2312138B00
ref: 28
PIECE,CLUTCH PUSH
2312138B00
€ 25.00
29
0926315003
ref: 29
BEARING(15X28X2)
0926315003
€ 7.00
30
0916015045
ref: 30
WASHER(15.5X28X1)
0916015045
€ 4.00
31
2311038B00
ref: 31
ROD,CLUTCH PUSH,R
2311038B00
€ 19.00
32
2311124A01
ref: 32
ROD,CLUTCH PUSH,L
2311124A01
€ 15.00
33
0928506017
ref: 33
SEAL,OIL(6X34X11)
0928506017
€ 11.00
34
2311738A00
ref: 34
RETAINER,CL PUSH ROD OIL SEAL
2311738A00
€ 6.00
35
2316038B00
ref: 35
CYLINDER,CLUTCH RELEASE
2316038B00
€ 122.50
36
2316306B00
ref: 36
CUP
2316306B00
€ 5.50
37
2316405A00
ref: 37
SPRING,CLUTCH CYLINDER
2316405A00
€ 3.50
38
5912101A00
ref: 38
BLEEDER
5912101A00
€ 8.50
39
5912201A00
ref: 39
CAP,BLEEDER
5912201A00
€ 4.50
40
0918009019
ref: 40
SPACER(9X16X11)
€ 7.50
41
0920609011
ref: 41
PIN(6.4X9X23)
0920609011
€ 7.50
42
0155006403
ref: 42
BOLT
0155006403
€ 2.00
