WIRING HARNESS

VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

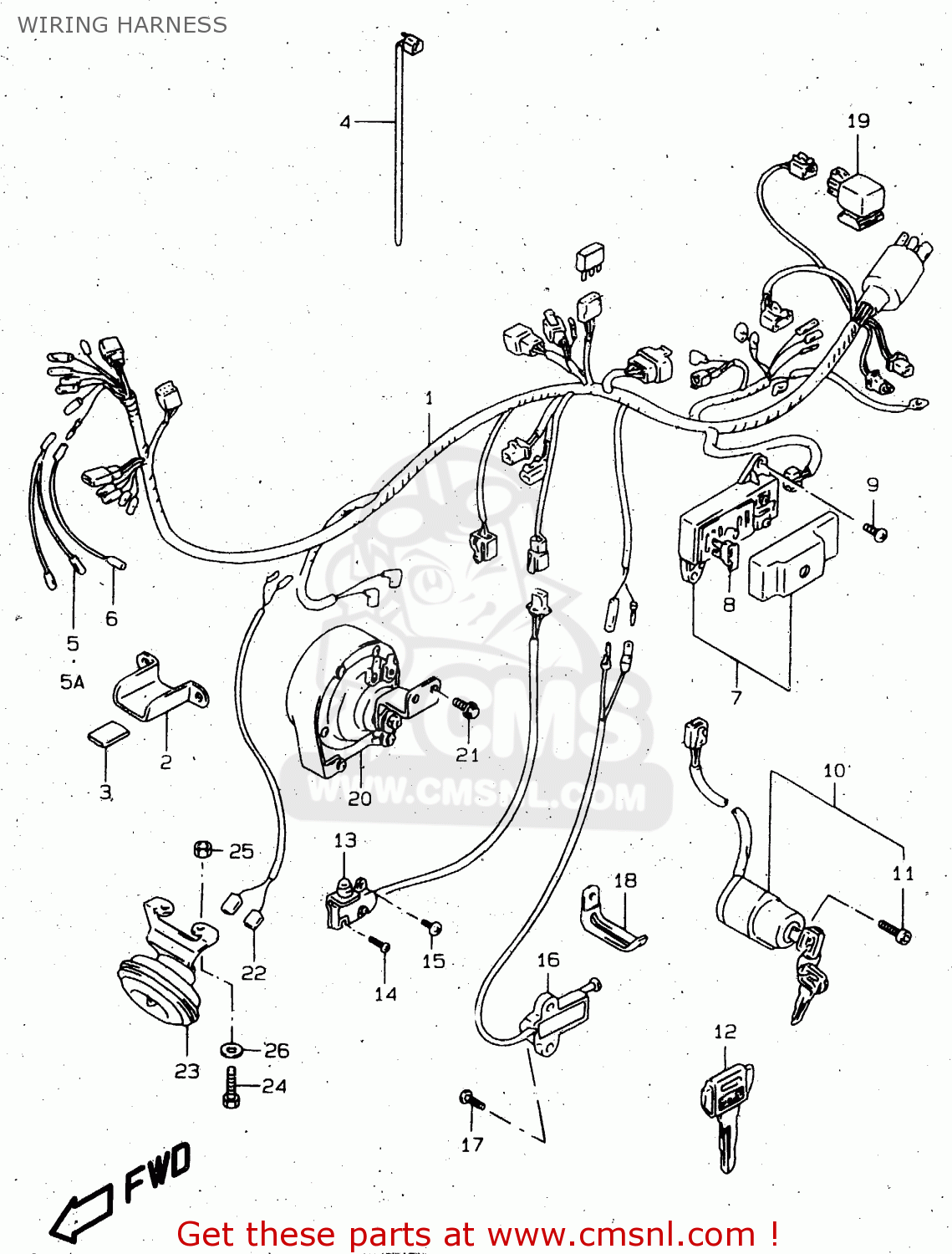

Wiring harness diagram VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

WIRING HARNESS VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
WIRING HARNESS VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
WIRING HARNESS VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
3661038BA0
ref: 1
HARNESS,WIRING
€ 323.50
1
3661038BB0
ref: 1
E4, E17, E34, E37, P
HARNESS,WIRING
€ 393.00
2
3661938B00
ref: 2
GUIDE,WIRING HARNESS
3661938B00
€ 6.50
3
3692038B00
ref: 3
CUSHION
€ 4.50
4
0940714403
ref: 4
CLAMP(L:125)
0940714403
€ 2.50
4
0940714407
ref: 4
CLAMP(L:145)
0940714407
€ 4.00
4
0940718403
ref: 4
CLAMP L:165
€ 2.50
5
3685238B10
ref: 5
WIRE,CLUTCH SW CONNECTOR
3685238B10
€ 5.50
5A
3685238B10
ref: 5A
WIRE,CLUTCH SW CONNECTOR
3685238B10
€ 5.50
6
3685339B00
ref: 6
E24
WIRE, LIGHTING SWITCH
€ 0.00
7
3674019C00
ref: 7
BOX ASSY,FUSE
3674019C00
€ 88.00
8
0948125103
ref: 8
<-09481-25101
FUSE(25A)
0948125103
€ 2.50
8
0948110101
ref: 8
FUSE(10A)
0948110101
€ 2.50
9
0214206163
ref: 9
SCREW
0214206163
€ 2.50
10
3711038B03
ref: 10
<-37110-38B02
SWITCH ASSY,IGNITION
3711038B03
€ 71.50
11
0713005163
ref: 11
BOLT
€ 2.00
12
3714603A00
ref: 12
OPT
KEY,BLANK(TYPE:C)
3714603A00
€ 6.00
12
3714603A10
ref: 12
OPT
KEY,BLANK(TYPE:D)
3714603A10
€ 6.00
12
3714603A20
ref: 12
OPT
KEY,BLANK(TYPE:E)
3714603A20
€ 6.00
12
3714603A30
ref: 12
OPT
KEY,BLANK(TYPE:F)
3714603A30
€ 6.00
13
3774038B00
ref: 13
SWITCH ASSY,STOP LAMP
3774038B00
€ 79.00
14
0211204163
ref: 14
SCREW 4X16
0211204163
€ 1.00
15
0214204063
ref: 15
SCREW
€ 1.50
16
3784039A22
ref: 16
SWITCH ASSY,SIDE STAND
3784039A22
€ 87.50
17
0211276203
ref: 17
SCREW
€ 2.50
18
0940406432
ref: 18
<-09404-06206, <-094
CLAMP(L:65)
0940406432
€ 2.50
19
3874024X50
ref: 19
RELAY ASSY
3874024X50
€ 37.50
20
3850038B01
ref: 20
HORN ASSY
3850038B01
€ 112.50
21
0155006123
ref: 21
BOLT
0155006123
€ 2.50
22
3859538B10
ref: 22
E4, E17, E34, E37, P
WIRE,HORN LEAD
€ 8.00
23
3850038B10
ref: 23
E4, E17, E34, E37, P
HORN ASSY
3850038B10
€ 83.00
24
0155006303
ref: 24
E4, E17, E34, E37, P
BOLT
0155006303
€ 2.50
25
0831000063
ref: 25
E4, E17, E34, E37, P
NUT 6MM
0831000063
€ 2.00
26
0832201063
ref: 26
E4, E17, E34, E37, P
WASHER
0832201063
€ 2.00
