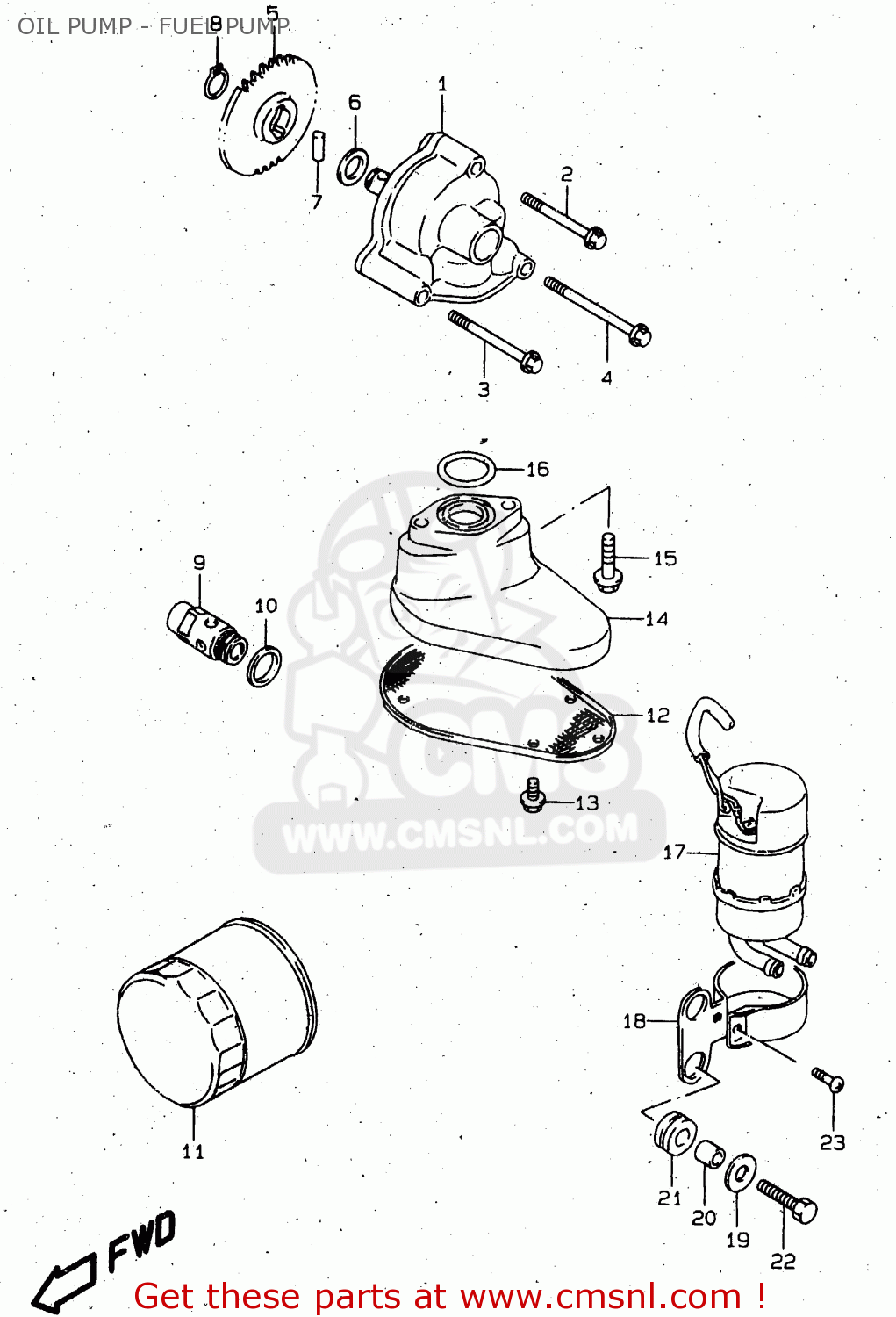

OIL PUMP - FUEL PUMP - VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

ref

part #

description

quantity

1

1640038B00
ref: 1

PUMP ASSY,ENGINE OIL

€ 244.50

2

0154706453
ref: 2

BOLT

€ 3.00

3

0154706553
ref: 3

BOLT

€ 3.00

4

0154706653
ref: 4

BOLT

€ 2.00

5

1633138B00
ref: 5
~E.NO.171553

GEAR,OIL PUMP DRIVEN

€ 61.50

5

1633138B01
ref: 5
E.NO.171554~

GEAR,OIL PUMP DRIVEN

€ 61.50

6

0822112205
ref: 6
~E.NO.162131

SHIM

€ 1.50

6

0918112158
ref: 6
E.NO.162132~

SHIM(12X20X0.5)

€ 2.00

7

0926105006
ref: 7

PIN(5X18)

€ 1.50

8

0833131126
ref: 8

CIRCLIP,12 MM

€ 2.00

9

1644024A01
ref: 9

VALVE ASSY,OIL RELIEF

€ 52.00

10

0916816002
ref: 10

GASKET(16X22X2) (NAS)

€ 2.00

11

1651006B01
ref: 11
MODEL T/V

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

11

1651034E00
ref: 11
MODEL W/X

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

12

1652038B10
ref: 12

STRAINER,ENGINE OIL

€ 21.00

13

0155005103
ref: 13

BOLT

€ 2.50

14

1652538B10
ref: 14

HOLDER,OIL STR

€ 24.00

15

0155006253
ref: 15

BOLT

€ 2.50

16

0928022008
ref: 16

O RING(D:3.1,ID:22.7)

€ 2.50

17

1510038A00
ref: 17

PUMP ASSY,FUEL

€ 238.50

18

1511038B01
ref: 18

BRACKET,FUEL PUMP

€ 9.00

19

0916006088
ref: 19

WASHER(6.5X20X1.6)

€ 2.00

20

0918006317
ref: 20
MODEL T, <-09180-061

SPACER (6.5X10X9.4)

€ 2.00

20

0918006286
ref: 20
MODEL V/W/X

SPACER(6.5X10X9.4)

€ 2.50

21

0932010015
ref: 21

CUSHION

€ 2.50

22

0150006253
ref: 22

BOLT

€ 2.50

23

0214204167
ref: 23

SCREW

€ 2.00

OIL PUMP - FUEL PUMP

all assemblies
