SEAT (MODEL T E22)

VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

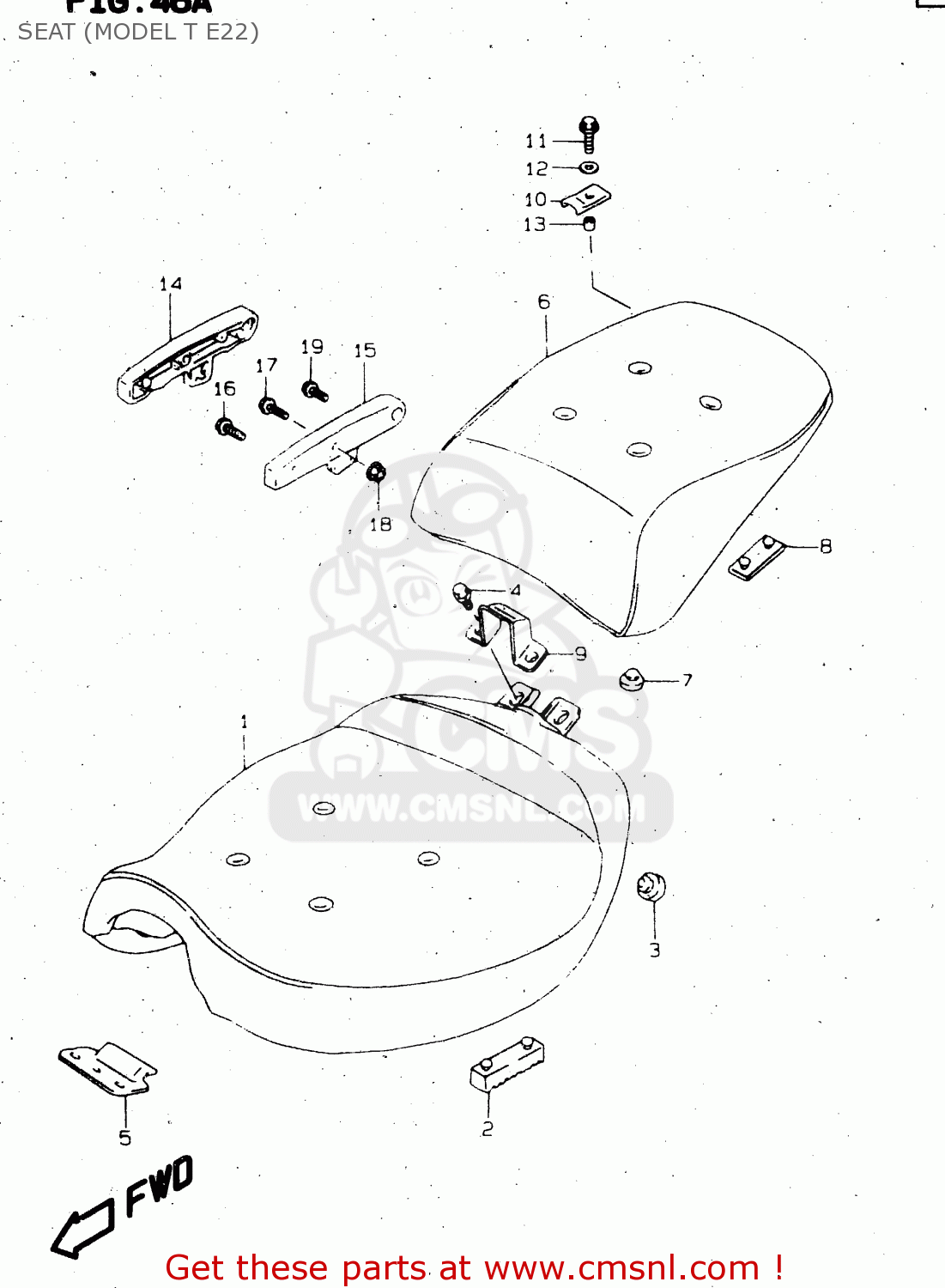

Seat (model t e22) diagram VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

4510038B60E7T
ref: 1

SEAT ASSY

€ 945.00

4514838B01
ref: 2

CUSHION,SEAT

€ 8.50

0932110012
ref: 3

CUSHION

€ 3.00

0157006203
ref: 4

BOLT

€ 2.50

4521038B00
ref: 5

BRACKET,SEAT FR

€ 12.00

4530038B60E7T
ref: 6

SEAT ASSY,PILLION

€ 393.50

0932110022
ref: 7

CUSHION

€ 2.00

4514938B00
ref: 8

CUSHION,PILLION SEAT RR

€ 6.50

4511938B00
ref: 9

BRACKET,PILLION SEAT FR

€ 5.50

4511838B00
ref: 10

PLATE,PILLION SEAT RR

€ 13.50

0150006167
ref: 11

BOLT

€ 3.00

0916006084
ref: 12

WASHER(6.5X18X1.6)

€ 2.00

0918006135
ref: 13

SPACER(6.5X8.5X5.8)

€ 2.00

4621238B22
ref: 14

HANDLE,PILLION RIDER,R

€ 118.00

4621338B22
ref: 15

HANDLE,PILLION RIDER,L

€ 141.50

0158006403
ref: 16

BOLT, FRONT

€ 2.00

0158008453
ref: 17

BOLT

€ 4.00

0831610083
ref: 18

NUT

€ 3.00

0158006203
ref: 19

BOLT, REAR

€ 2.50
