HEADLAMP (E4, E17, E22, E34, E37, P37)

VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

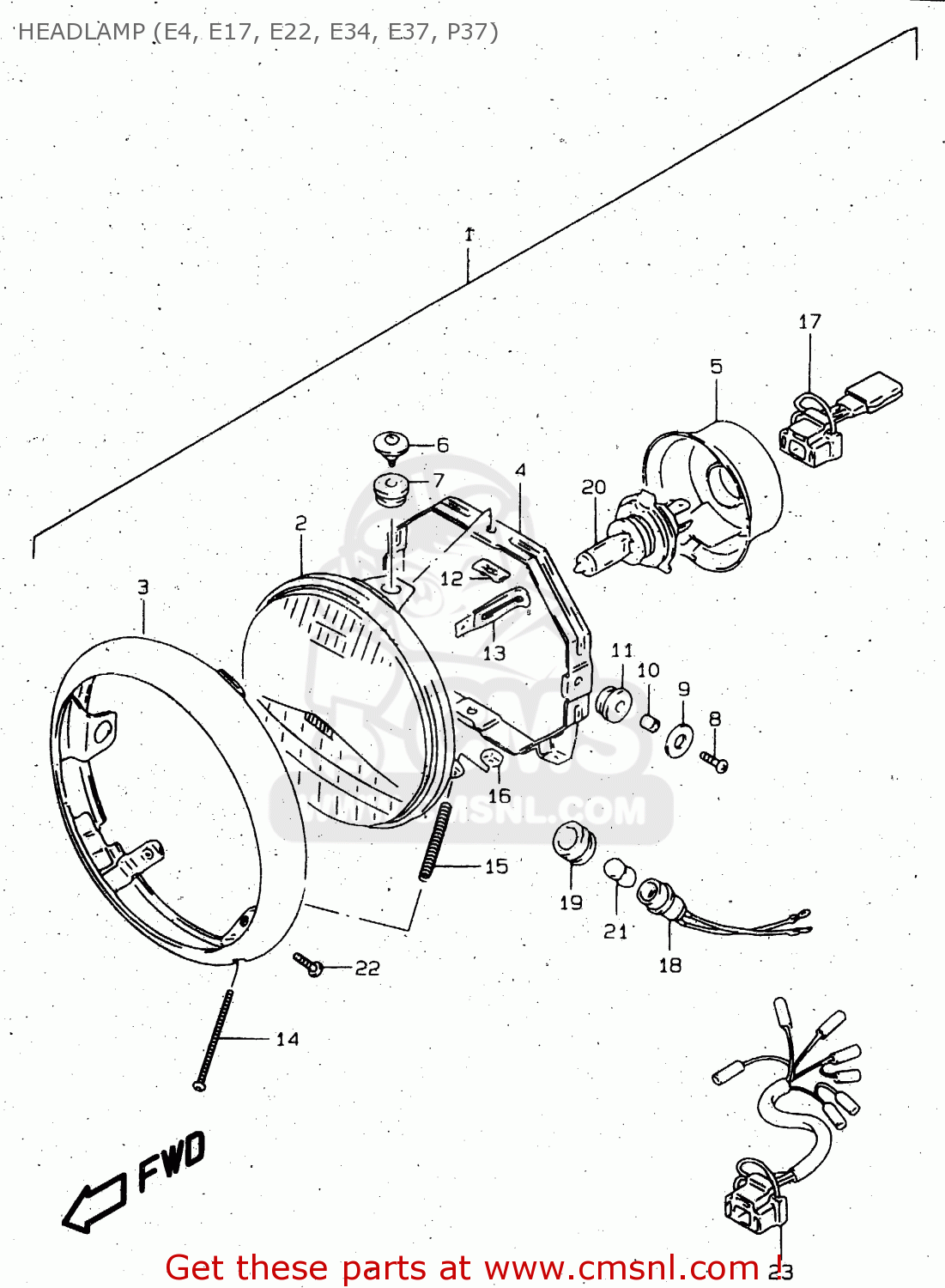

Headlamp (e4, e17, e22, e34, e37, p37) diagram VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

3510038A51999
ref: 1

HEADLAMP ASSY

€ 216.50

3512138A41
ref: 2

UNIT

€ 126.50

3511138A00
ref: 3

RIM

€ 27.00

3513038A00
ref: 4

RING,MOUNTING

€ 15.00

3517338A00
ref: 5

COVER,SOCKET

€ 12.50

3513638A00
ref: 6

SCREW,MOUNTING

€ 2.50

3513945230
ref: 7

CUSHION

€ 1.50

0211205163
ref: 8

SCREW

€ 2.00

0916005045
ref: 9

WASHER(5.5X18X1)

€ 2.00

3513345230
ref: 10

SPACER

€ 2.00

3513945230
ref: 11

CUSHION

€ 1.50

3515548510
ref: 12

NUT

€ 2.00

0940406432
ref: 13
<-09404-06429

CLAMP(L:65)

€ 2.50

3515138A00
ref: 14

SCREW,ADJUSTING(4X50)

€ 2.50

3515431300
ref: 15

SPRING

€ 2.00

3513545600
ref: 16

NUT

€ 3.00

3685338A00
ref: 17

SOCKET

€ 10.00

3611849320
ref: 18

SOCKET

€ 12.00

3611622630
ref: 19

JOINT,RUBBER

€ 5.00

0947112060
ref: 20

BULB(12V60/55W,H4)

€ 8.00

0947112063
ref: 21

BULB(12V4W)

€ 6.00

0212205127
ref: 22

SCREW

€ 2.50

3685338B10
ref: 23

WIRE,HEADLAMP LEAD

€ 20.50
