GEAR SHIFTING

VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

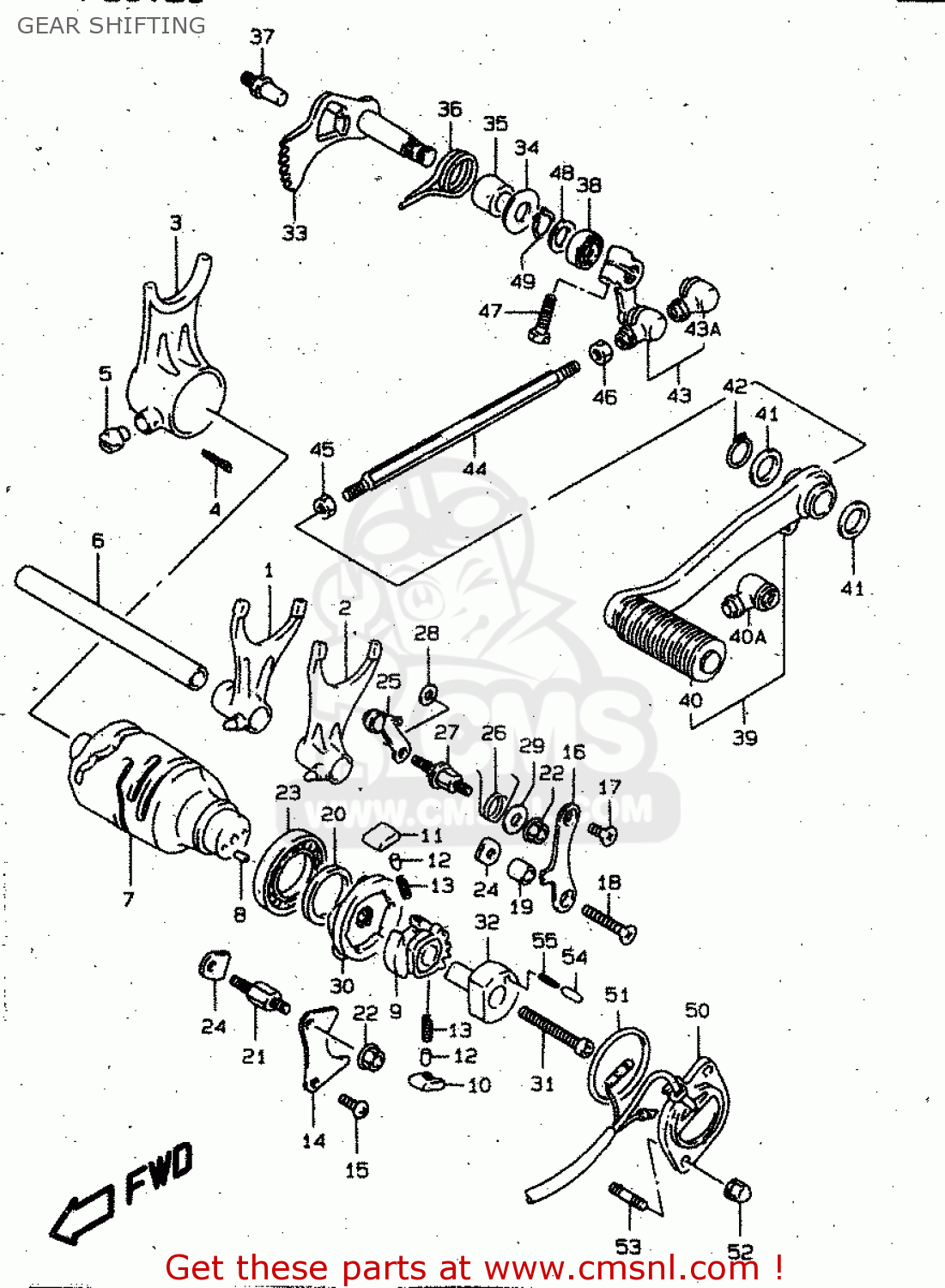

Gear shifting diagram VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

GEAR SHIFTING VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
GEAR SHIFTING VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
GEAR SHIFTING VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
2521138B11
ref: 1
<-25211-38B10
FORK,GEAR SHIFT NO.1
2521138B11
€ 83.00
2
2522138B10
ref: 2
FORK,GEAR SHIFT NO.2
2522138B10
€ 83.00
3
2523138B10
ref: 3
FORK,GEAR SHIFT NO.3
2523138B10
€ 168.00
4
0411125308
ref: 4
PIN, COTTER
0411125308
€ 1.50
5
0920910002
ref: 5
PIN
0920910002
€ 8.50
6
2541138B01
ref: 6
SHAFT,GEAR SHIFT FORK(L:152)
2541138B01
€ 20.00
7
2531038B10
ref: 7
CAM,GEAR SHIFT
€ 213.50
8
0422104089
ref: 8
PIN
0422104089
€ 1.50
9
2532231310
ref: 9
<-25322-31302
GEAR,GEAR SHIFT CAM DRIVEN
2532231310
€ 14.50
10
2532334201
ref: 10
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
11
2532434201
ref: 11
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
12
0926105003
ref: 12
PIN(5X8)
0926105003
€ 1.50
13
0944004003
ref: 13
SPRING
0944004003
€ 1.50
14
2533138B00
ref: 14
LIFTER,GEAR SHIFT POLE
2533138B00
€ 5.00
15
0211206123
ref: 15
SCREW
0211206123
€ 1.50
16
2534138B00
ref: 16
GUIDE,GEAR SHIFT CAM
2534138B00
€ 7.00
17
0212206123
ref: 17
SCREW
0212206123
€ 3.00
18
0212206303
ref: 18
SCREW
0212206303
€ 2.00
19
0918006293
ref: 19
<-09180-06169
SPACER(6.5X10X14)
0918006293
€ 2.00
20
0916025059
ref: 20
WASHER(25X32X3)
0916025059
€ 5.00
21
2533238A00
ref: 21
BOSS,SHIFT PAWL LIFTER
€ 3.50
22
0831610063
ref: 22
NUT
0831610063
€ 2.50
23
0926225006
ref: 23
BEARING(25X47X8)
0926225006
€ 24.00
24
2474121A00
ref: 24
RETAINER
2474121A00
€ 2.00
25
2535038B00
ref: 25
STOPPER,GEAR SHIFT CAM
2535038B00
€ 13.00
26
0944817024
ref: 26
SPRING
0944817024
€ 5.00
27
2535612C00
ref: 27
SUPPORT,CAM STOPPER ARM
2535612C00
€ 9.50
28
0821106141
ref: 28
WASHER
0821106141
€ 2.50
29
0916006013
ref: 29
WASHER (6.5X18X2)
0916006013
€ 10.50
30
2538038B00
ref: 30
PLATE,GEAR SHIFT CAM
2538038B00
€ 15.00
31
0713006403
ref: 31
BOLT
0713006403
€ 3.50
32
2531238B01
ref: 32
HOLDER,NEUTRAL SWITCH
2531238B01
€ 21.00
33
2551038B00
ref: 33
SHAFT,GEAR SHIFT
2551038B00
€ 94.00
34
0916012091
ref: 34
<-09160-12063
WASHER(12.5X28X1.2)
€ 2.50
35
0918012068
ref: 35
SPACER(12X20X15.3)
0918012068
€ 3.00
36
0944426021
ref: 36
SPRING
0944426021
€ 5.00
37
2567138B00
ref: 37
STOPPER,SHIFT ARM
2567138B00
€ 3.00
38
0928512002
ref: 38
OIL SEAL
0928512002
€ 7.00
39
2560038B01
ref: 39
LEVER ASSY,GEAR SHIFT
2560038B01
€ 78.00
40
2565238B00
ref: 40
RUBBER,GEAR SHIFT PEDAL
2565238B00
€ 7.50
40A
2552647000
ref: 40A
COVER,DUST
2552647000
€ 3.50
41
0916014054
ref: 41
<-09160-14003
WASHER(14.5X22X1)
0916014054
€ 1.00
42
0833131146
ref: 42
CIRCLIP
0833131146
€ 2.00
43
2552038B00
ref: 43
ARM,GEAR SHIFT LINK
2552038B00
€ 39.50
43A
2552647000
ref: 43A
COVER,DUST
2552647000
€ 3.50
44
2552538B00
ref: 44
ROD,GEAR SHIFT LINK
2552538B00
€ 21.00
45
0914006011
ref: 45
NUT
0914006011
€ 1.50
46
0831000067
ref: 46
NUT
0831000067
€ 2.50
47
0150006207
ref: 47
BOLT
0150006207
€ 2.00
48
0918112167
ref: 48
SHIM(12X20X1)
0918112167
€ 2.50
49
0833131126
ref: 49
CIRCLIP,12 MM
0833131126
€ 2.00
50
3772038B00
ref: 50
E24
BASE ASSY,NEUTRAL SW TERMINAL
3772038B00
€ 94.50
50
3772038B10
ref: 50
E2, E4, E22, E34, E3
BASE ASSY,GEAR SHIFT TERMINAL
3772038B10
€ 92.50
51
0928035006
ref: 51
O RING(D:2.4,ID:35.5)
0928035006
€ 4.00
52
0831320053
ref: 52
NUT
0831320053
€ 1.50
53
0910805010
ref: 53
BOLT,STUD
0910805010
€ 2.50
54
0920904021
ref: 54
PIN
0920904021
€ 9.00
55
0944002003
ref: 55
SPRING
0944002003
€ 12.00
