Buy Suzuki VS Parts Online


FRONT FORK

VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

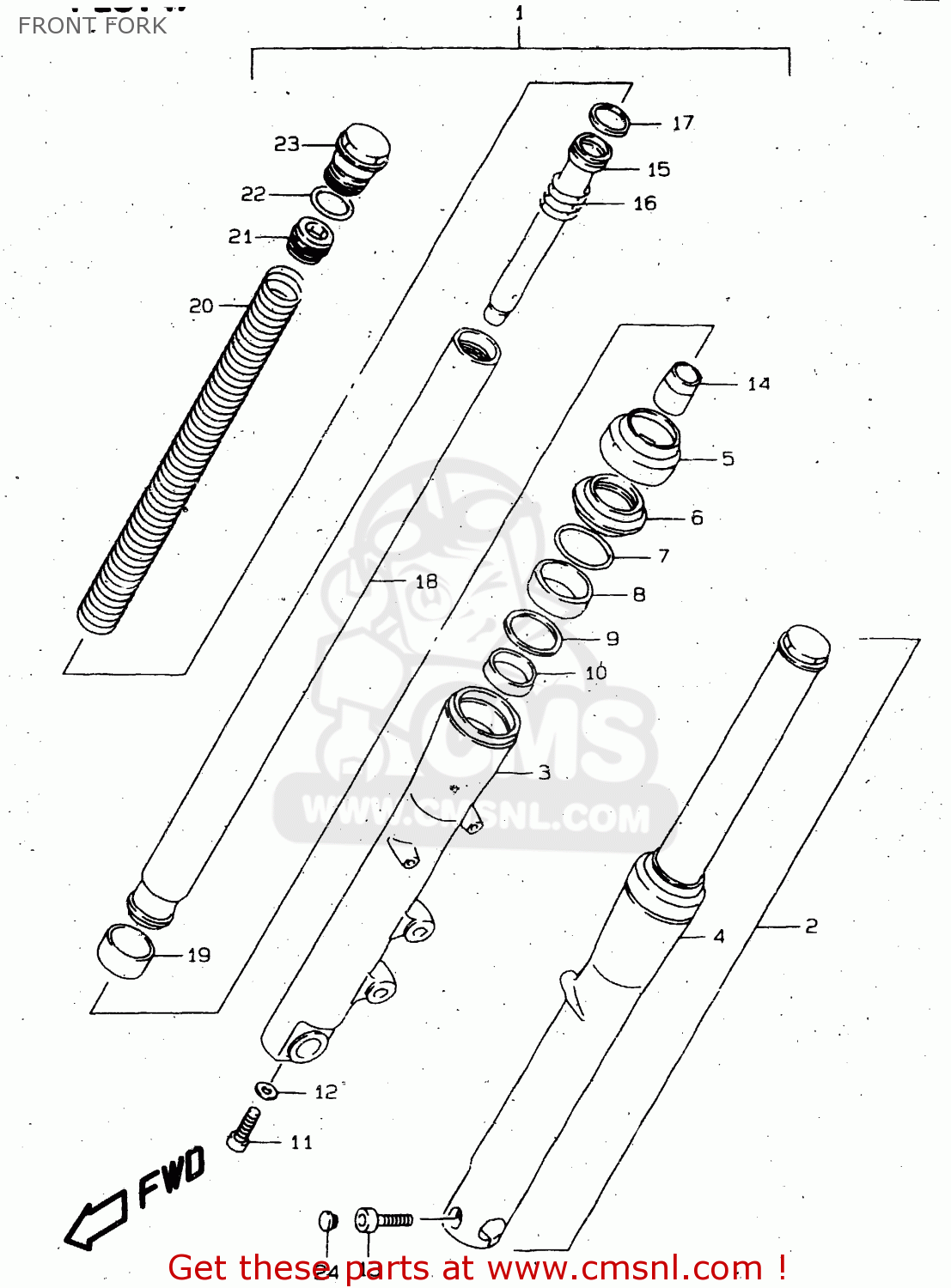

Front fork diagram VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

FRONT FORK VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
FRONT FORK VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
FRONT FORK VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
5110338B00
ref: 1
DAMPER ASSY,FR FORK,R
€ 858.50
2
5110438B00
ref: 2
DAMPER ASSY,FR FORK,L
€ 923.50
3
5113138B00
ref: 3
TUBE,OUTER,R
5113138B00
€ 470.00
4
5114138B00
ref: 4
TUBE,OUTER,L
5114138B00
€ 470.00
5
5157238B00
ref: 5
COVER,CASE
5157238B00
€ 31.00
6
5117315D00
ref: 6
DUST SEAL
5117315D00
€ 19.50
7
5155638B00
ref: 7
CIRCLIP,FORK OIL SEAL
5155638B00
€ 4.50
8
5115308D00
ref: 8
SEAL,OIL
5115308D00
€ 15.50
9
5116838B00
ref: 9
SPACER,SEAL
5116838B00
€ 5.00
10
5115248B31
ref: 10
BUSH,GUIDE
5115248B31
€ 20.00
11
5114748130
ref: 11
BOLT(8X27)
5114748130
€ 3.50
12
5114836011
ref: 12
GASKET (NAS)
5114836011
€ 4.00
13
0713008407
ref: 13
BOLT
0713008407
€ 3.50
14
5119538B00
ref: 14
PIECE,OIL LOCK
5119538B00
€ 27.50
15
5114638B00
ref: 15
CYLINDER
€ 92.00
16
5117732B00
ref: 16
SPRING,REBOUND
5117732B00
€ 9.50
17
5119632B00
ref: 17
RING,PISTON
5119632B00
€ 7.50
18
5111038B00
ref: 18
TUBE,INNER
€ 546.00
19
5112103D00
ref: 19
BUSH,SLIDE
5112103D00
€ 15.00
20
5117138B00
ref: 20
SPRING,FR FORK
€ 119.50
21
5135338B00
ref: 21
BOLT,FORK INNER
5135338B00
€ 27.50
22
5111738B00
ref: 22
O RING
5111738B00
€ 4.00
23
5135138B00
ref: 23
BOLT
5135138B00
€ 81.00
24
0925006009
ref: 24
CAP(OD:14.5)
0925006009
€ 3.50
