FRONT FENDER (MODEL T)

VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

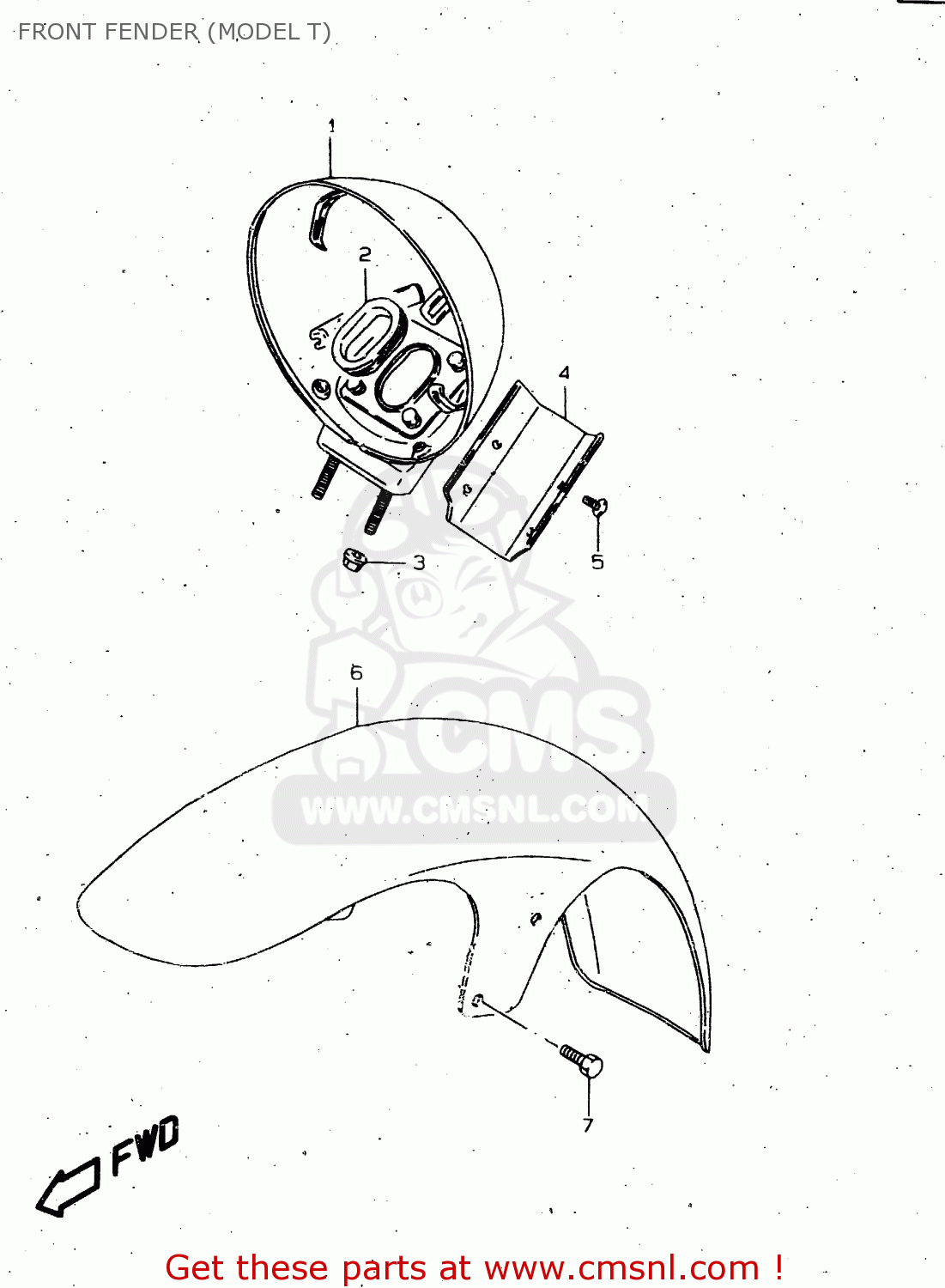

Front fender (model t) diagram VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

FRONT FENDER (MODEL T) VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

FRONT FENDER (MODEL T) VS1400GLP 1998 (W) (E02 E04 E17 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

5181038B00
ref: 1

HOUSING,HEADLAMP

€ 136.50

2

5181938B00
ref: 2

GROMMET

€ 6.50

3

0831931063
ref: 3

NUT

€ 2.50

4

5181538B00
ref: 4

COVER,HEADLAMP HSG

€ 9.50

5

0214204107
ref: 5

SCREW

€ 1.50

6

5311038B101ZV
ref: 6
FOR E6N

FENDER COMP,FRONT

€ 215.50

6

5311038B1033J
ref: 6
FOR E6L, E6M

FENDER COMP,FRONT

€ 177.00

7

0157006163
ref: 7

BOLT

€ 2.50

all assemblies

* COLOR CHART *

* COLOR CHART *
