CAMSHAFT - VALVE

DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

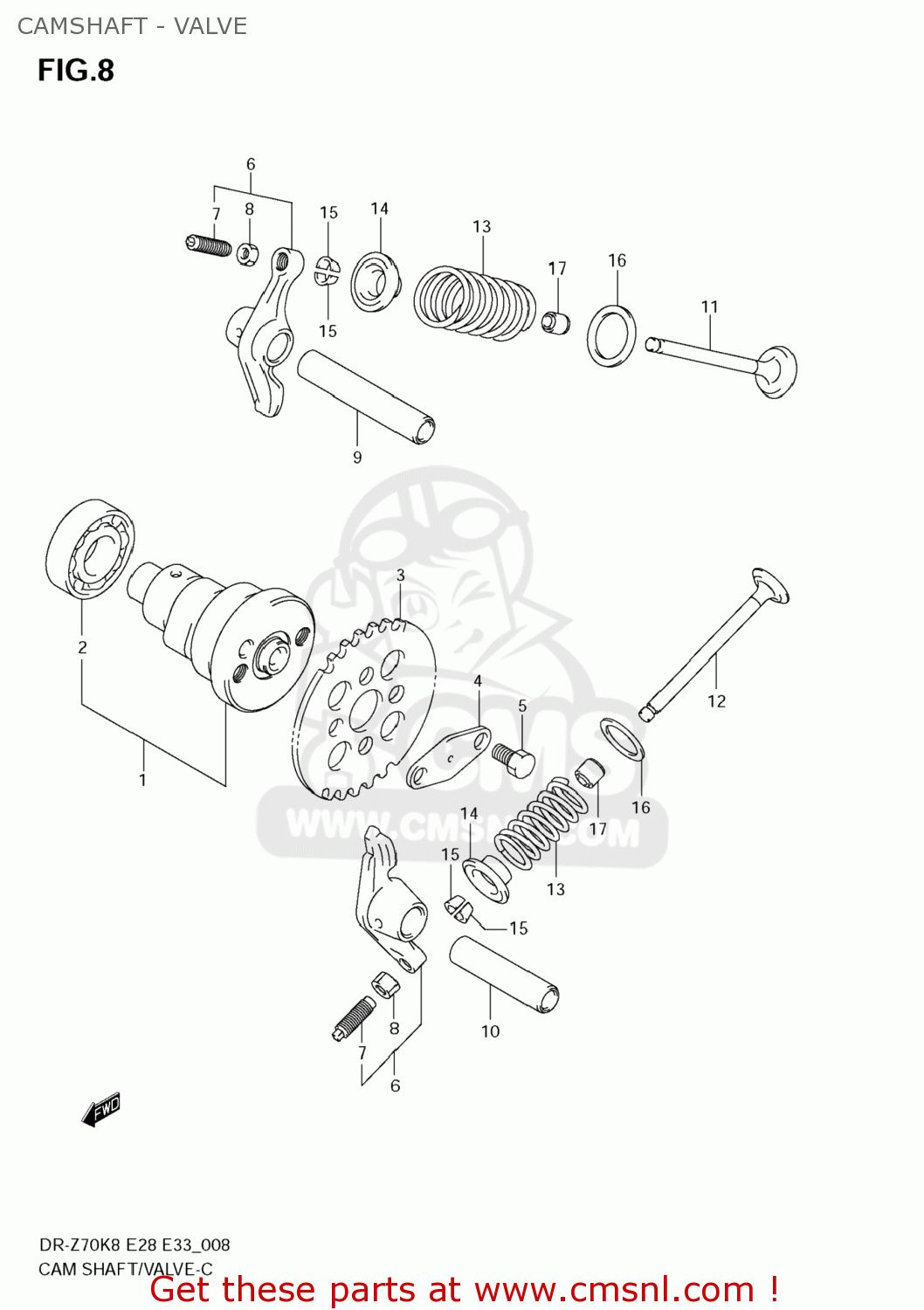

Camshaft - valve diagram DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

prices are in EUR

ref

part #

description

quantity

1271002A10
ref: 1

CAMSHAFT ASSY

€ 107.50

0926215013
ref: 2

BEARING(15X32X9)

€ 18.00

1274109405
ref: 3

SPROCKET,CAMSHAFT

€ 11.50

1271409401
ref: 4

WASHER,SPROCKET

€ 4.00

0911106032
ref: 5

BOLT(6X10.5)

€ 2.00

1284030A11
ref: 6

ARM,VALVE ROCKER

€ 28.00

1284249201
ref: 7

SCREW,TAPPET ADJUSTING

€ 5.50

1284327A00
ref: 8

NUT,TAPPET ADJUSTING

€ 3.00

1286109401
ref: 9

SHAFT,VALVE ROCKER ARM INTAKE

€ 8.50

1287109401
ref: 10

SHAFT,VALVE ROCKER ARM EXHAUST

€ 8.50

1291109D00
ref: 11

VALVE,INTAKE

€ 75.50

1291202A00
ref: 12

VALVE,EXHAUST

€ 76.00

1292136G00
ref: 13

SPRING SET,VALVE

€ 5.50

1293109420
ref: 14

RETAINER,VALVE SPRING

€ 4.00

1293227A00
ref: 15

COTTER VALVE

€ 2.50

1293409400
ref: 16

SEAT,VALVE SPRING OUTER

€ 2.50

0928905008
ref: 17

SEAL,OIL(5X10.5X8.4)

€ 6.00
