HANDLEBAR

DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

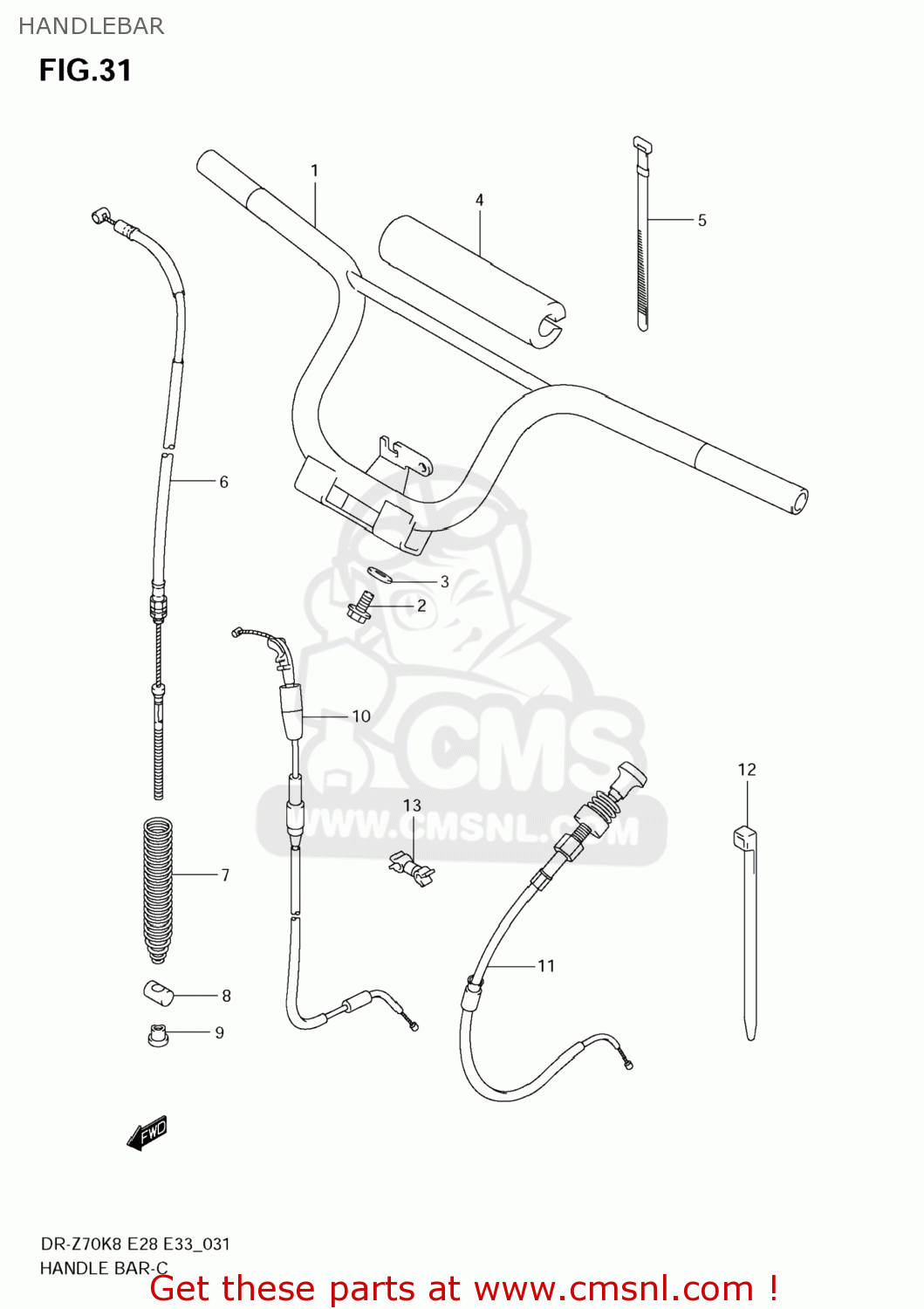

Handlebar diagram DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

prices are in EUR

ref

part #

description

quantity

HANDLEBAR(SILVER)

€ 127.50

015500816A
ref: 2

BOLT

€ 2.50

0916008127
ref: 3

WASHER(8.5X22X2)

€ 2.00

5617214H00
ref: 4

PAD,CROSS BAR

€ 25.00

0940714401
ref: 5

CLAMP

€ 3.00

5811014H00
ref: 6

CABLE,FR BRAKE

€ 26.50

5816214H00
ref: 7

SPRING,FR BRAKE CABLE

€ 4.50

0920911002
ref: 8

PIN(11X18)

€ 2.00

0915006010
ref: 9

NUT

€ 3.50

5830014H00
ref: 10

CABLE ASSY,THROTTLE

€ 30.00

5840014H00
ref: 11

CABLE ASSY,STARTER

€ 27.50

0940710404
ref: 12

CLAMP(L:100)

€ 4.00

0940800049
ref: 13

CLAMP

€ 2.00
