CYLINDER

DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

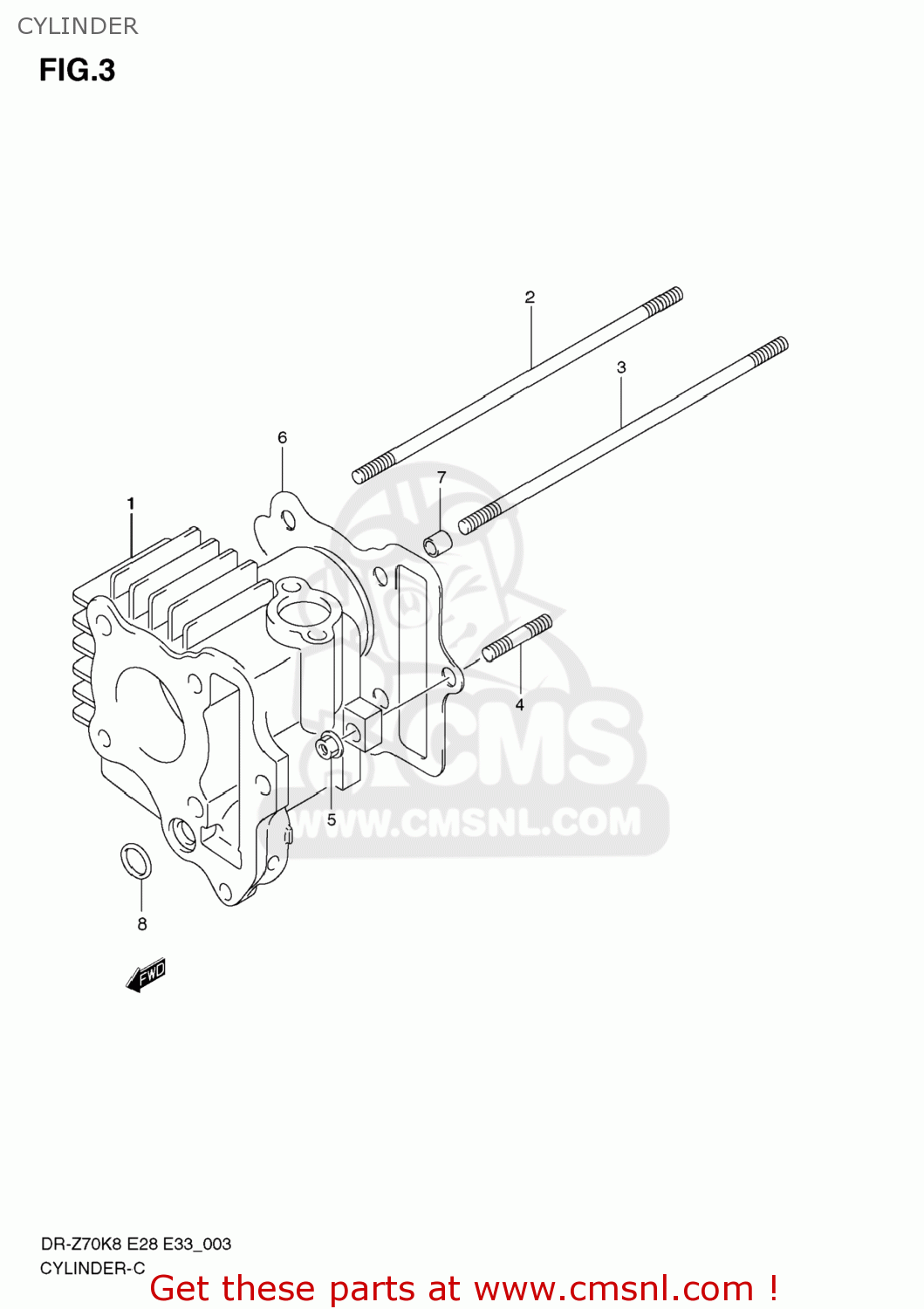

Cylinder diagram DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

CYLINDER DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

CYLINDER DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

prices are in EUR

ref

part #

description

quantity

1

1121102A100F0
ref: 1

CYLINDER

€ 150.50

2

0910806054
ref: 2

BOLT,STUD

€ 5.00

3

0910806055
ref: 3

BOLT,STUD

€ 3.50

4

0910806124
ref: 4

BOLT,STUD

€ 2.00

5

083161006B
ref: 5

NUT

€ 2.50

6

1124102A11
ref: 6

GASKET,CYLINDER (NAS)

€ 3.50

7

0920608001
ref: 7

PIN(6.2X8X11)

€ 2.00

8

0928012012
ref: 8

O RING(D:2.4,ID:11.8)

€ 5.00
