WIRING HARNESS

DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

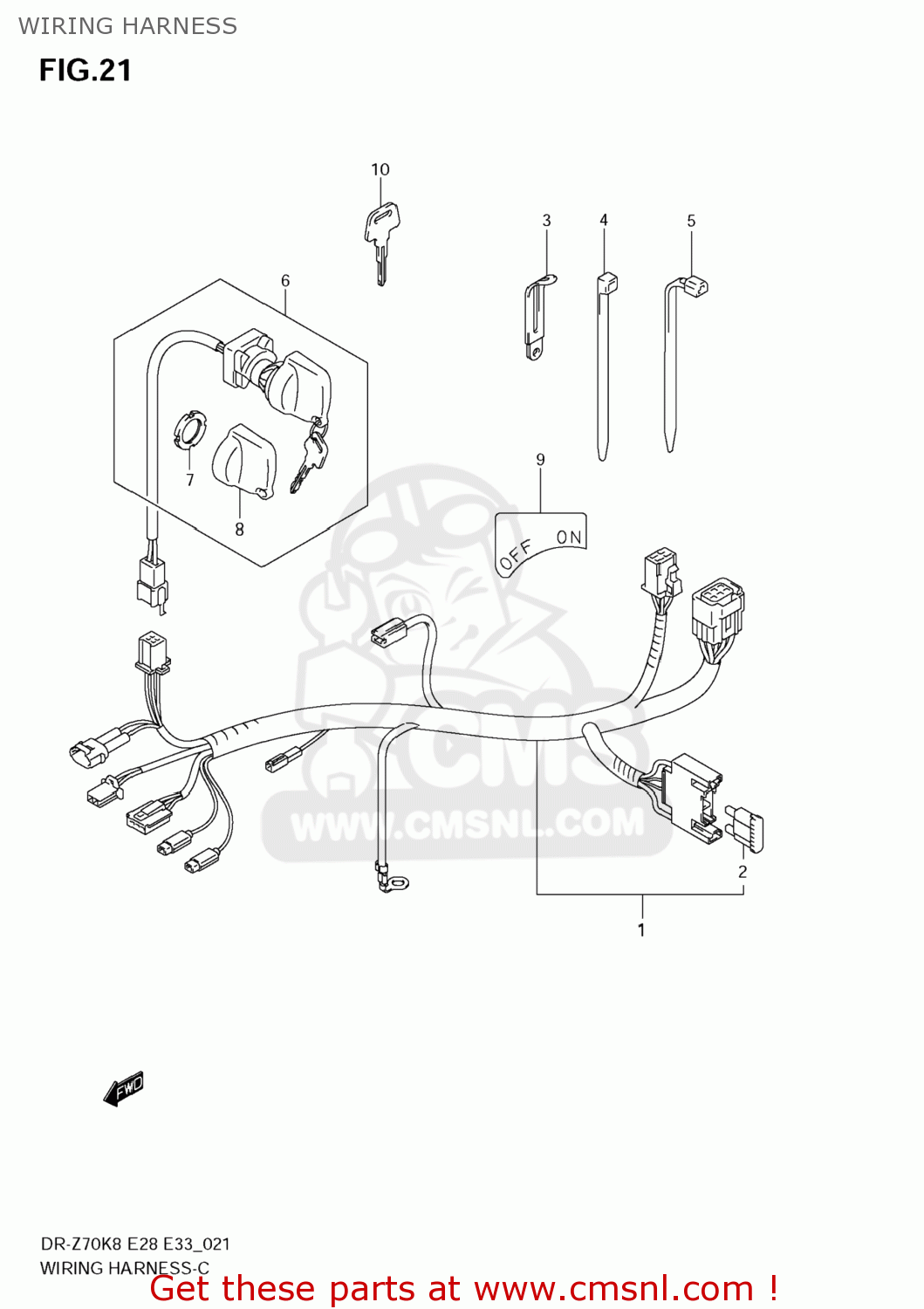

Wiring harness diagram DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

prices are in EUR

ref

part #

description

quantity

3661014H00
ref: 1

HARNESS,WIRING

€ 74.50

0948110101
ref: 2

FUSE(10A)

€ 2.50

0940406429
ref: 3

CLAMP(L:45)

€ 2.50

0940714407
ref: 4

CLAMP(L:145)

€ 4.00

0940725401
ref: 5

CLAMP(L:235)

€ 4.00

3711014H00
ref: 6

SWITCH ASSY,IGNITION

€ 74.50

3711224500
ref: 7

NUT,IGNITION SWITCH

€ 5.50

3714219B00
ref: 8

MASCOT,KEY

€ 4.00

3713909D30
ref: 9

PLATE CONTROL IDENTIFICATION

€ 3.00

10-1

3714609D00
ref: 10-1

KEY,BLANK(TYPE:C)

€ 16.00

10-2

3714609D10
ref: 10-2

KEY,BLANK(TYPE:D)

€ 16.00

10-3

3714609D20
ref: 10-3

KEY,BLANK(TYPE:E)

€ 16.00

10-4

3714609D30
ref: 10-4

KEY,BLANK(TYPE:F)

€ 16.00
