ELECTRICAL

DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

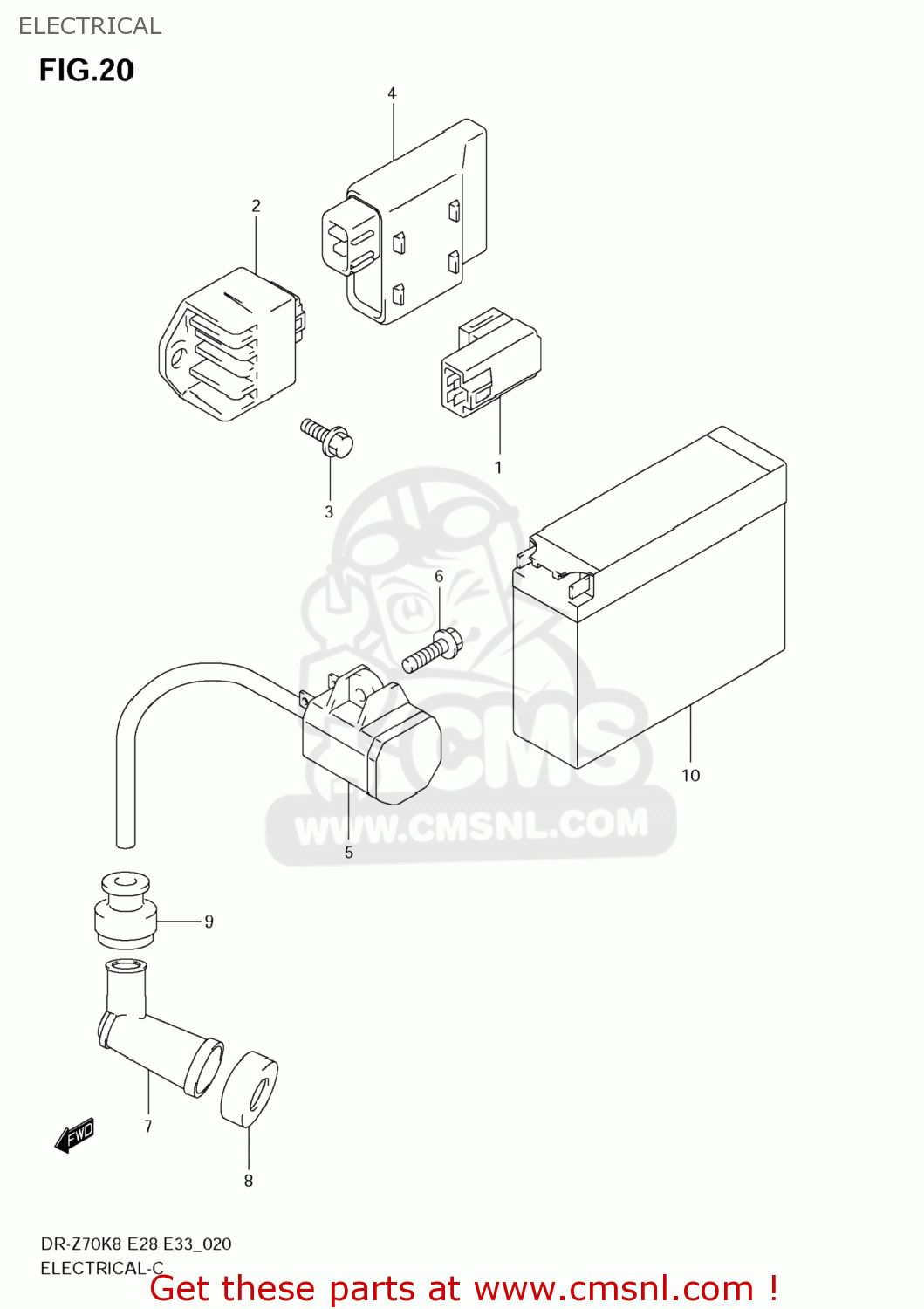

Electrical diagram DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

prices are in EUR

ref

part #

description

quantity

3180014H00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 25.00

3280047E00
ref: 2
32800-41H00

RECTIFIER ASSY

€ 71.00

021620616A
ref: 3
02162-0616B

SCREW

€ 1.50

3290014H00
ref: 4

CDI UNIT

€ 228.00

3341014H00
ref: 5

COIL ASSY,IGNITION

€ 60.50

021620620B
ref: 6

SCREW

€ 2.00

3351022010
ref: 7
33510-97313

CAP ASSY,SPARK PLUG

€ 16.50

3354138210
ref: 8

SEAL,SPARK PLUG

€ 7.00

3354238B00
ref: 9

SEAL,HIGH TENSION CORD

€ 4.50

3361039C20
ref: 10

BATTERY ASSY(YT4B-BS,12V2.4AH)

€ 150.00

all assemblies
