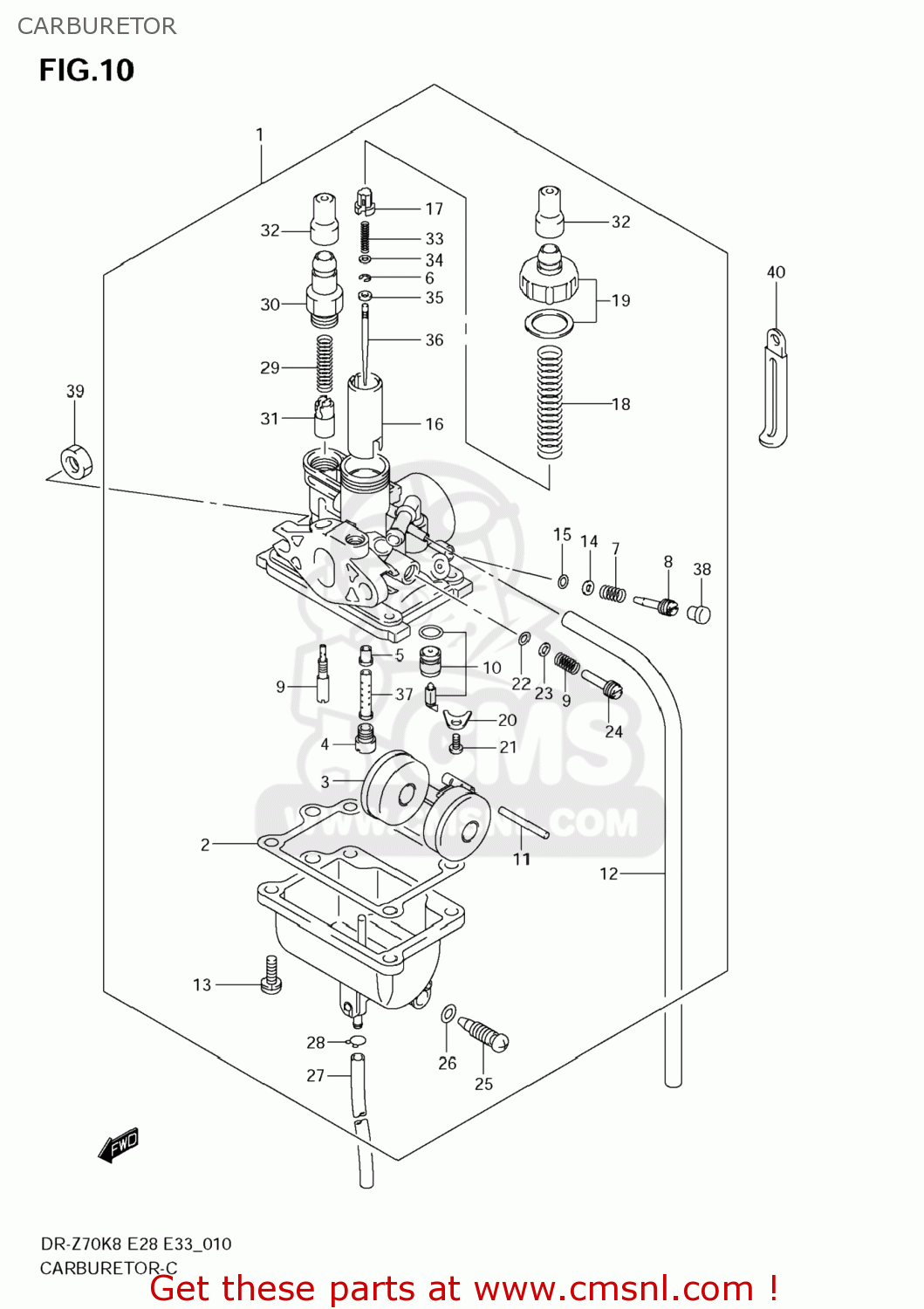

CARBURETOR

ref

part #

description

quantity

1-1

1320014H00
ref: 1-1
13200-14H01

CARBURETOR ASSY

€ 195.00

1-2

1320014H01
ref: 1-2

CARBURETOR ASSY

€ 195.00

2

1325102410
ref: 2

GASKET (NAS)

€ 4.50

3

1325002500
ref: 3

FLOAT

€ 16.50

4

0949155006
ref: 4

JET,MAIN(55)

€ 9.00

5

1334114H00
ref: 5

JET,NEEDLE

€ 27.50

6

1353398410
ref: 6

E RING

€ 3.50

7

1326835010
ref: 7

SPRING

€ 3.00

8

1348316A01
ref: 8

SCREW,THROTTLE STOP

€ 8.00

9

0949217012
ref: 9

JET,PILOT(17.5)

€ 12.00

10

1337036G00
ref: 10

VALVE ASSY,NEEDLE

€ 29.00

11

1325420010
ref: 11

PIN,FLOAT

€ 3.00

12

0935250903600
ref: 12

HOSE(5X9X600)

€ 28.50

13

1360104148
ref: 13

SCREW

€ 2.50

14

1329135010
ref: 14

WASHER

€ 2.50

15

1329533010
ref: 15

O RING

€ 4.50

16

1355136G00
ref: 16

VALVE,PISTON

€ 22.00

17

1341812F40
ref: 17

HOLDER

€ 3.50

18

1326836G00
ref: 18

SPRING

€ 3.50

19

1326136G00
ref: 19

CAP

€ 18.50

20

1337346710
ref: 20

PLATE,NEEDLE VALVE FITING

€ 4.50

21

0211203063
ref: 21
02112-0306B

SCREW

€ 2.00

22

1329529900
ref: 22

O RING,PILOT AIR SCREW

€ 4.00

23

1329129900
ref: 23

WASHER

€ 2.00

24-1

1326943G00
ref: 24-1

ADJUSTER

€ 6.50

24-2

1326943G00
ref: 24-2

ADJUSTER

€ 6.50

25

1324709G10
ref: 25

SCREW,DRAIN

€ 3.00

26

1327802330
ref: 26

O RING

€ 2.00

27

0935530705600
ref: 27

HOSE(3X7X600)

€ 13.50

28

1352998010
ref: 28

CLIP

€ 2.00

29

1341737200
ref: 29

SPRING

€ 3.00

30

1341814H00
ref: 30

HOLDER,GUIDE

€ 10.00

31

1341122G00
ref: 31

PLUNGER,STARTER

€ 7.50

32

1341626F00
ref: 32

CAP

€ 5.00

33

1348123F00
ref: 33

SPRING

€ 3.00

34

1338223F00
ref: 34

WASHER

€ 2.00

35

1338723F00
ref: 35

RING

€ 3.00

36

1338314H00
ref: 36

NEEDLE,JET

€ 10.00

37-1

1338514H00
ref: 37-1

PIPE

€ 8.00

37-2

1338514H10
ref: 37-2

PIPE

€ 8.00

38

1328105A00
ref: 38

PLUG

€ 3.50

39

0914006027
ref: 39

NUT

€ 1.50

40

0940406433
ref: 40

CLAMP(L:80)

€ 3.00

all assemblies
