REAR SWINGING ARM

DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

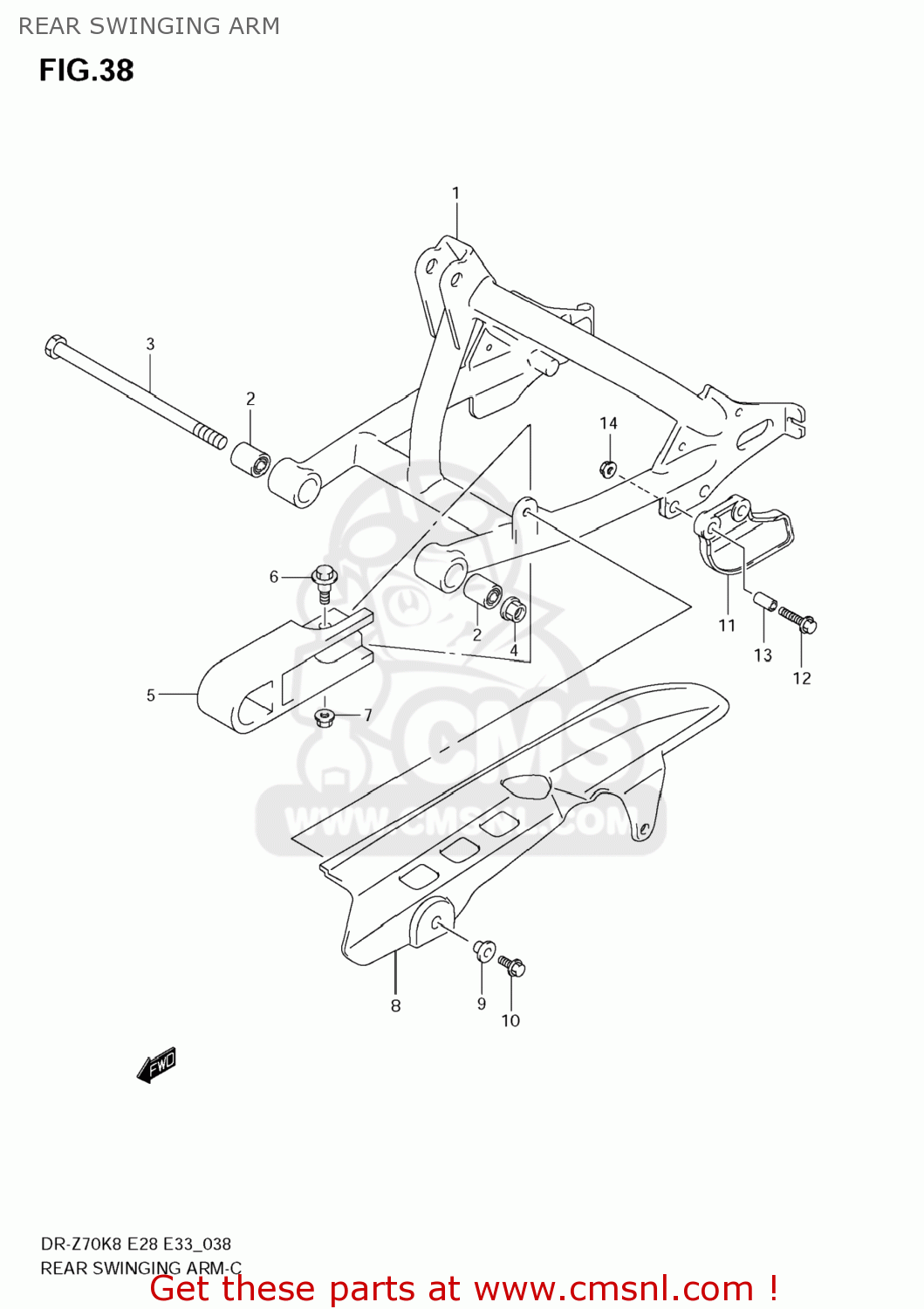

Rear swinging arm diagram DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

prices are in EUR

ref

part #

description

quantity

6100014H0013L
ref: 1

ACHTERVORK

€ 304.50

0931910043
ref: 2

BUSH(10X23X30)

€ 10.00

6121114H00
ref: 3

SHAFT,RR SWINGINGARM PIVOT

€ 7.00

083193110A
ref: 4

NUT

€ 3.00

6127314H00
ref: 5

BUFFER,CHAIN TOUCH DEFENSE

€ 16.00

0911106092
ref: 6

BOLT(6X19)

€ 2.50

083161006A
ref: 7

NUT

€ 2.50

6131114H00
ref: 8

CASE,CHAIN

€ 30.00

0916906040
ref: 9

WASHER

€ 2.00

015470612A
ref: 10

BOLT

€ 2.00

6134114H00
ref: 11

GUIDE,CHAIN

€ 10.00

0911606177
ref: 12

BOLT(6X25)

€ 1.50

0918006304
ref: 13

SPACER(6.1X8X15)

€ 3.00

083161006A
ref: 14

NUT

€ 2.50
