STARTER CLUTCH

DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

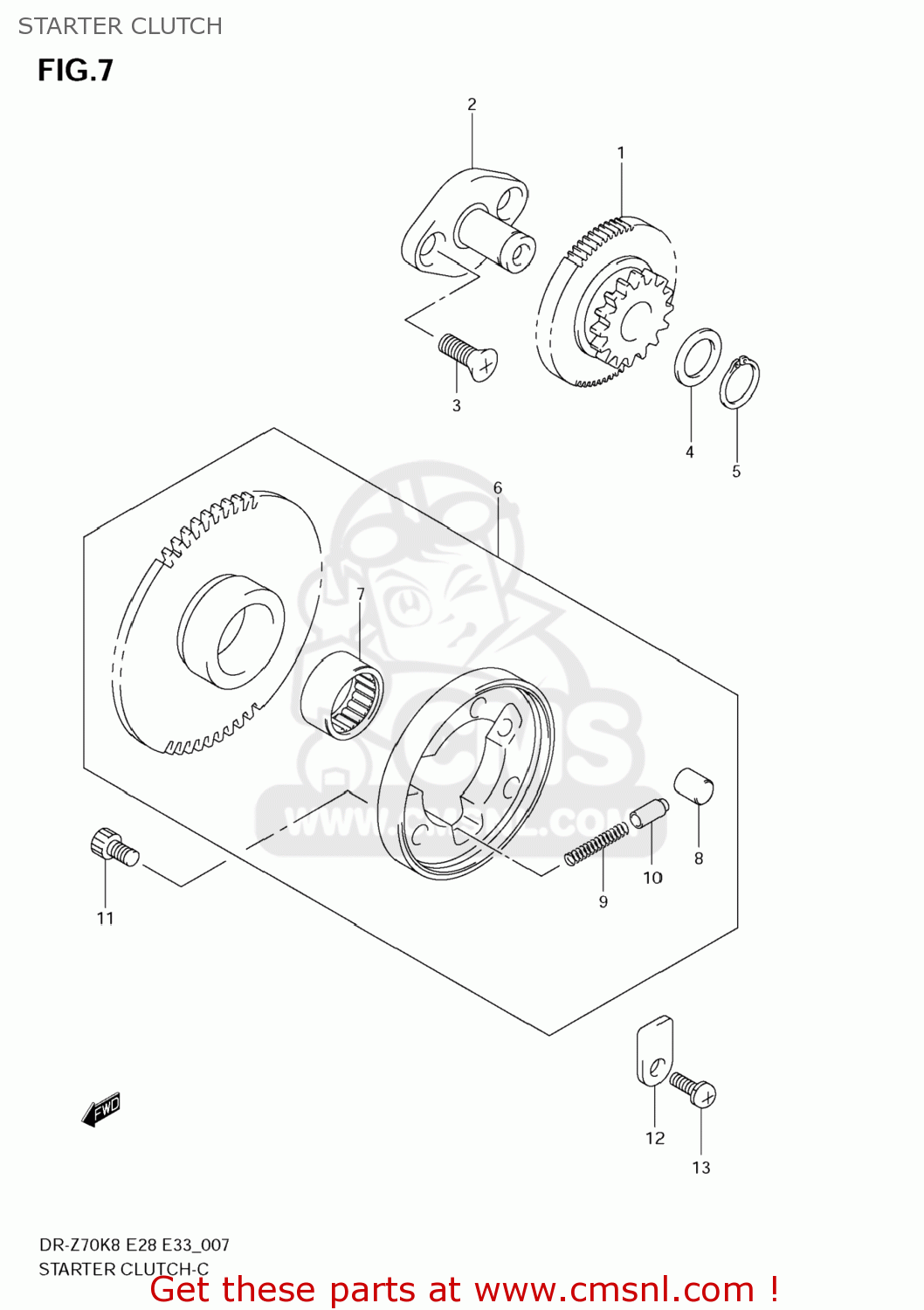

Starter clutch diagram DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

prices are in EUR

ref

part #

description

quantity

1261109410
ref: 1

GEAR,STARTER IDLE(NT:68/16)

€ 37.50

1261223F00
ref: 2

SHAFT,STARTER IDLE GEAR

€ 21.50

021220616A
ref: 3

SCREW

€ 2.00

0916013010
ref: 4

WASHER(13X20X1)

€ 2.00

0833131136
ref: 5
08331-3113A

CIRCLIP

€ 1.50

1260009854
ref: 6

CLUTCH SET,STA

€ 121.00

0926317025
ref: 7

BEARING(17X25X15)

€ 16.00

0926109002
ref: 8

PIN(9X10)

€ 2.00

0944003004
ref: 9

SPRING

€ 1.00

1263305300
ref: 10

PIECE,STARTER CLUTCH PUSH

€ 6.50

0910606075
ref: 11

BOLT(6X12)

€ 2.50

1262909410
ref: 12

PLATE,STARTER CLUTCH GEAR

€ 1.50

021123612A
ref: 13

SCREW

€ 2.00

all assemblies
