REFLECTOR (E28)

DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

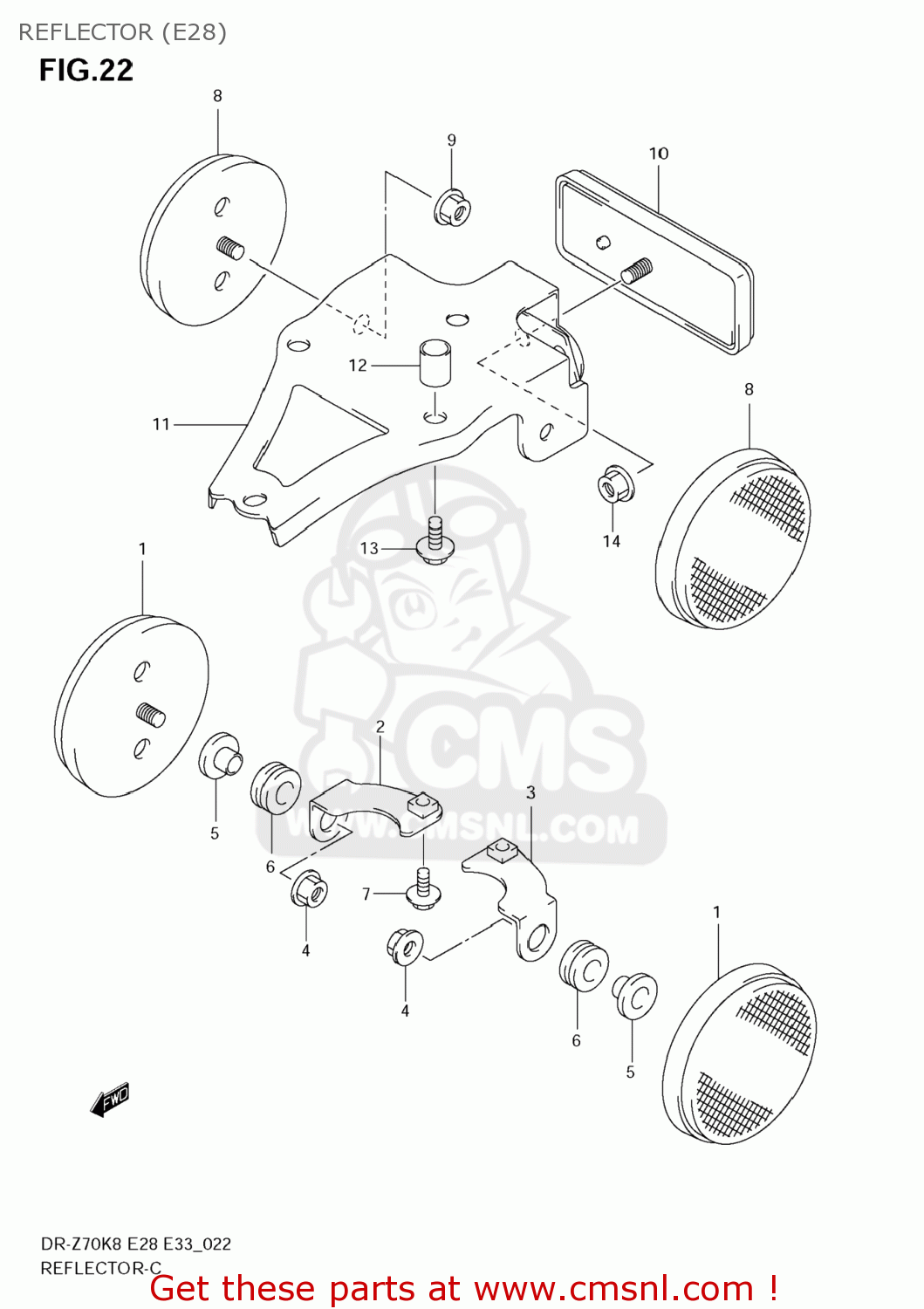

Reflector (e28) diagram DR-Z70 2009 (K9) USA (E03) DRZ70 DR Z70

prices are in EUR

ref

part #

description

quantity

3595014A20
ref: 1

REFLEX REFLECTOR

€ 12.00

3595614H00
ref: 2

BRACKET,FR SIDE RR,R

€ 5.50

3595714H00
ref: 3

BRACKET,FR SIDE RR,L

€ 5.50

0915905044
ref: 4
09159-05049

NUT

€ 1.50

0916906063
ref: 5

WASHER

€ 3.50

0932008066
ref: 6

CUSHION

€ 7.50

021620612A
ref: 7

SCREW

€ 2.50

3597014A20
ref: 8

REFLECTOR ASSY,RR SIDE

€ 11.00

083161005B
ref: 9

NUT

€ 2.50

3597007F01
ref: 10

REFLECTOR ASSY,RR

€ 20.50

3597414H00
ref: 11

BRACKET,SIDE & RR REFL

€ 8.50

0918006291
ref: 12

SPACER(6.5X10X13)

€ 2.00

021620625B
ref: 13

SCREW

€ 2.00

083161005B
ref: 14

NUT

€ 2.50
