BATTERY
DR125S 1985 (F) (E01 E02 E04 E18 E24)

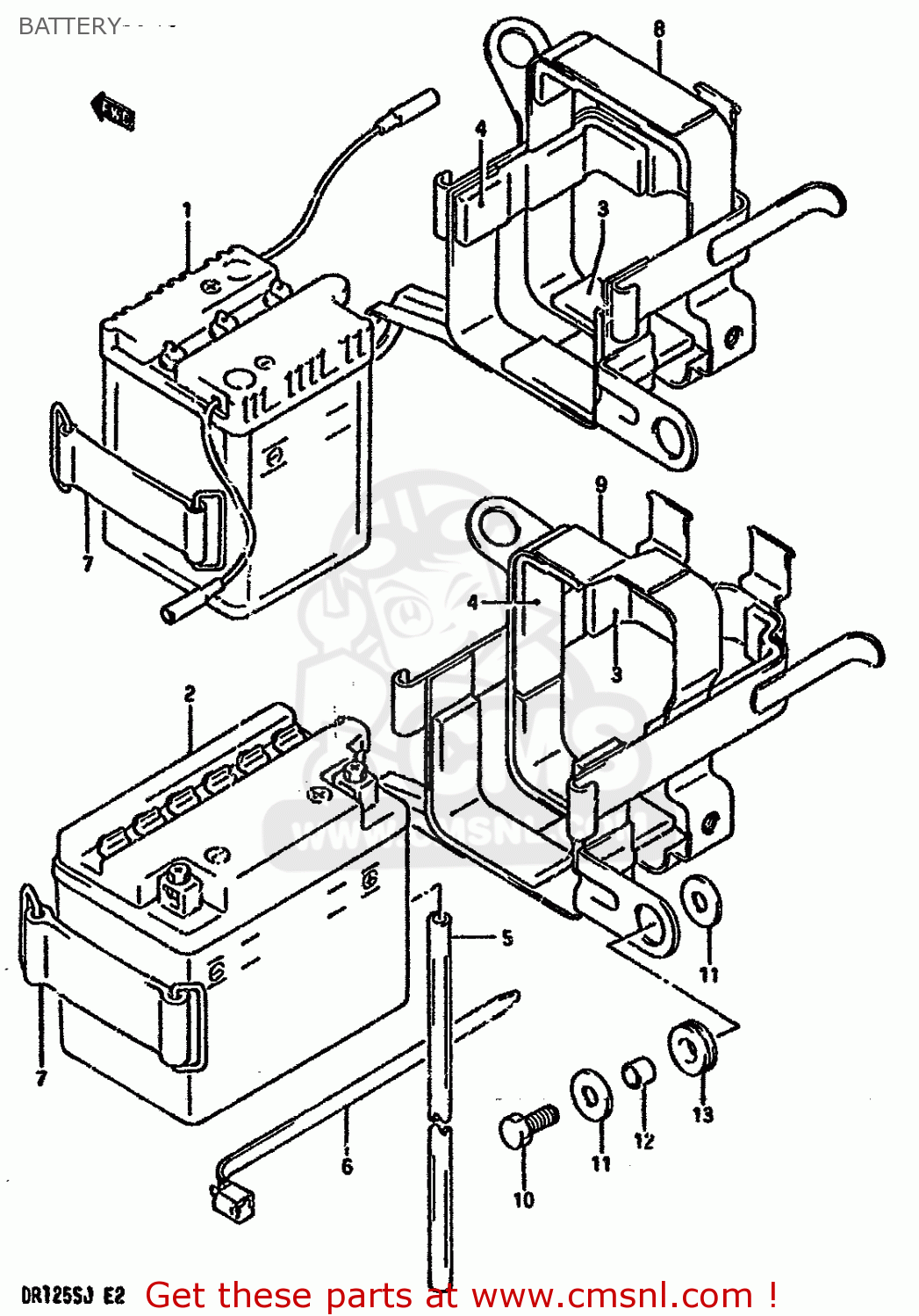

Battery diagram DR125S 1985 (F) (E01 E02 E04 E18 E24)
BATTERY DR125S 1985 (F) (E01 E02 E04 E18 E24)
×
prices are in EUR
ref
part #
description
quantity
1
3361003010
ref: 1
E1
BATTERY ASSY(6N4-2A4.2AH)
€ 42.00
2
3361002500
ref: 2
E2,E4,E15,E18,E21,E2
BATTERY ASSY(YB4L-B,12V4.2AH)
€ 26.50
3
3365201A00
ref: 3
20X130-20X40
PROTECTOR,BATTERY
€ 5.00
4-1
3365229100
ref: 4-1
E1
PROTECTOR,20X9
€ 5.00
4-2
3365229100
ref: 4-2
E2,E4,E15
PROTECTOR,20X9
€ 5.00
5
3368031003
ref: 5
E2,E4,E15,E18,E21,E2
HOSE,BATTERY EXHAUST
€ 4.50
6
0940718402
ref: 6
CLAMP(L:165)
€ 2.50
7-1
0946200033
ref: 7-1
E1
BAND
€ 6.50
7-2
0946200073
ref: 7-2
E2,E4,E15,E18,E21,E2
BAND
€ 8.50
8
4154044A10
ref: 8
E1
HOLDER COMP,BATTERY
€ 0.00
9
4154044A00
ref: 9
E2,E4,E15,E18,E21,E2
HOLDER,BATTERY
€ 0.00
10
0110706207
ref: 10
BOLT
€ 2.00
11
0916006027
ref: 11
WASHER (6.5X20X1.2)
€ 2.00
12
0918006109
ref: 12
SPACER (6X9X5)
€ 2.00
13
0932008030
ref: 13
CUSHION
€ 3.00
