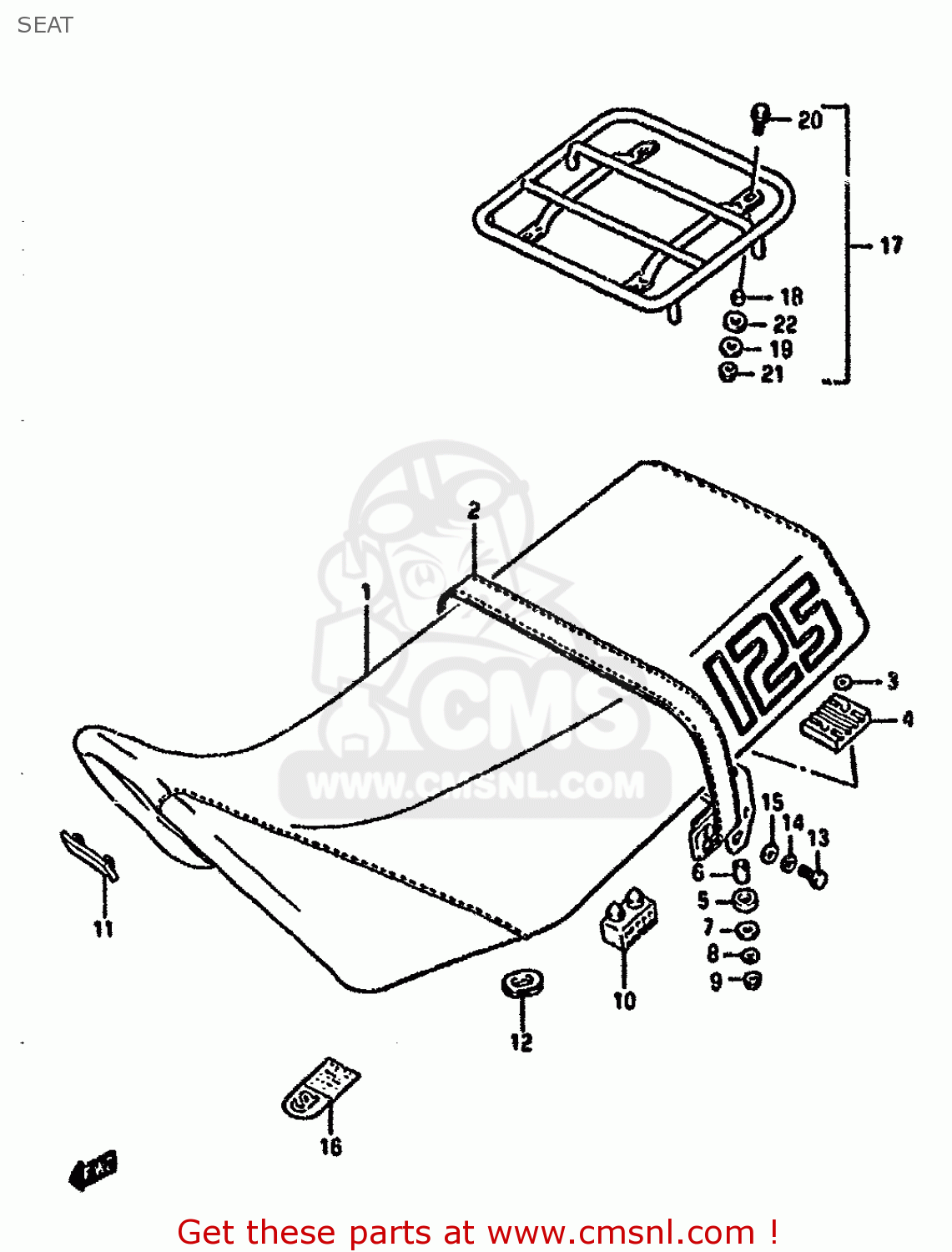

SEAT

ref

part #

description

quantity

1-1

4510044A0158D
ref: 1-1
MODEL F

SEAT ASSY (BLUE)

€ 139.50

1-2

4510044A404UZ
ref: 1-2
MODEL H/J

SEAT ASSEMBLY

€ 139.50

1-3

4510044A4058P
ref: 1-3
MODEL J FOR 34S

SEAT ASSY (BLACK)

€ 0.00

2-1

4518042A004UZ
ref: 2-1
MODEL H/J

BAND,SEAT

€ 12.00

2-2

4518042A0058P
ref: 2-2
MODEL J FOR 34S

BAND,SEAT GRIP (BLACK)

€ 0.00

3

0832221066
ref: 3

WASHER, LOWER

€ 2.00

4

4515023450
ref: 4

CUSHION,FR PLATE

€ 3.00

5

4514723450
ref: 5

CUSHION,SEAT FR

€ 1.50

6

4521923450
ref: 6

SPACER,SEAT SUPPORT

€ 2.50

7

0821206201
ref: 7

WASHER

€ 1.50

8

0832121066
ref: 8

WASHER,LOCK

€ 2.00

9

0831011066
ref: 9

NUT

€ 2.00

10

4514931300
ref: 10

CUSHION,SEAT(40X20X15)

€ 2.00

11

0932108009
ref: 11

CUSHION

€ 4.00

12

0932908003
ref: 12

CUSHION

€ 3.50

13

0110708165
ref: 13

BOLT

€ 2.00

14

0832121084
ref: 14

WASHER,LOCK,8.

€ 2.50

15

0832211084
ref: 15

WASHER

€ 1.50

16

1196782000
ref: 16
E2

LABEL,ASBESTOS WARNING

€ 2.00

17

4630013830
ref: 17
OPT

CARRIER SET,SUPPORT

€ 50.00

18

4635613A00
ref: 18
OPT

SPACER

€ 0.00

19

0916006056
ref: 19
OPT

WASHER(6.5X18X1)

€ 2.00

20

0151706205
ref: 20
OPT

BOLT

€ 2.50

21

0831616064
ref: 21
OPT

NUT 6MM

€ 2.50

22

0932010036
ref: 22
OPT

CUSHION

€ 2.50

all assemblies
