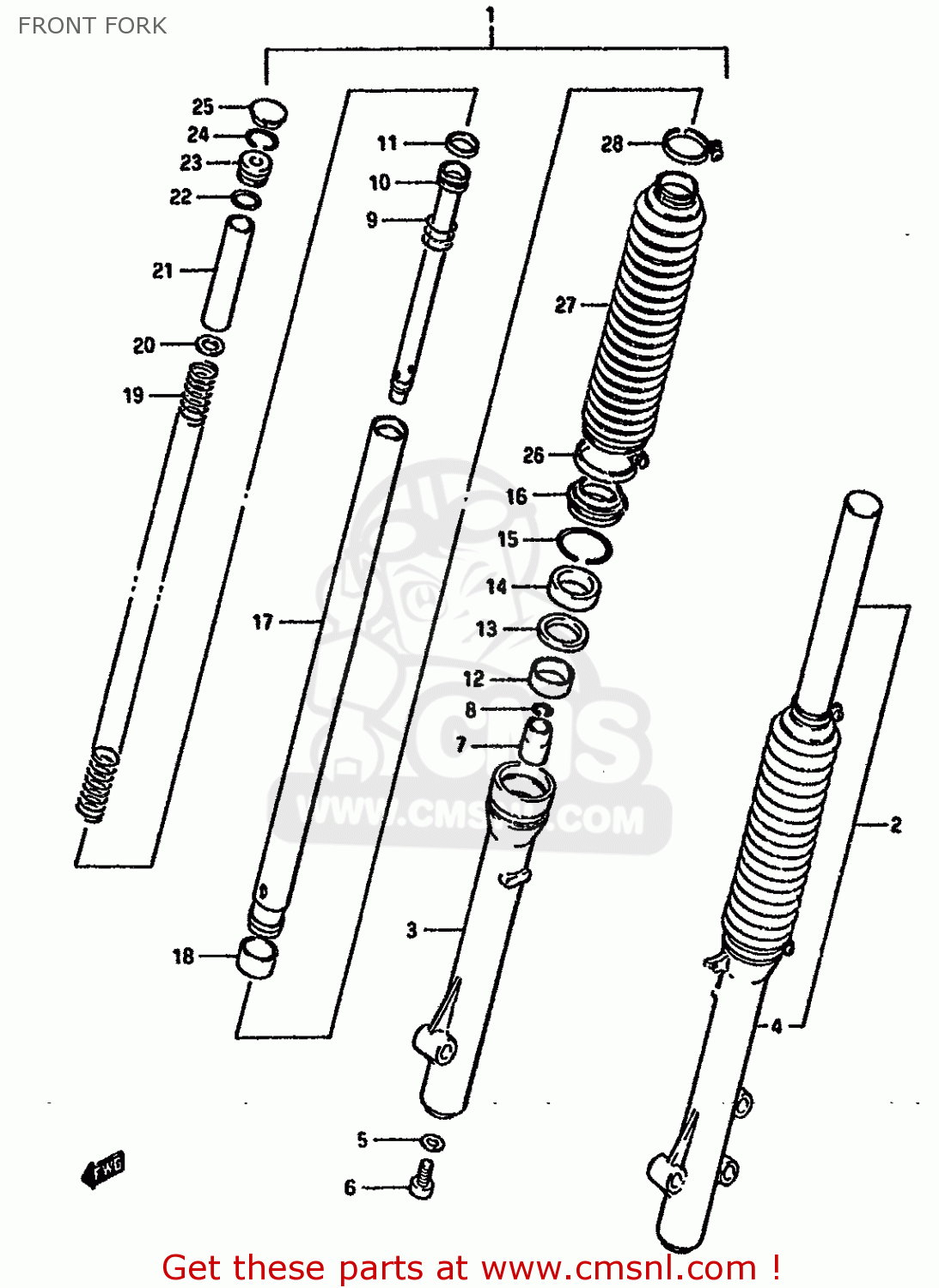

FRONT FORK

ref

part #

description

quantity

1

5110344A00
ref: 1

DAMPER ASSY,FR FORK,R

€ 625.00

2

5110444A00
ref: 2

DAMPER ASSEMBLY,LEFT

€ 627.00

3

5113101A01
ref: 3

TUBE,OUTER,R

€ 195.00

4

5114101A01
ref: 4

TUBE,OUTER,L

€ 175.00

5

5114836011
ref: 5

GASKET (NAS)

€ 4.00

6

5114748130
ref: 6

BOLT(8X27)

€ 3.50

7

5119501A30
ref: 7

PIECE,OIL LOCK

€ 0.00

8

5116901A30
ref: 8

RING,STOPPER

€ 1.50

9

5117701A00
ref: 9

SPRING,REBOUND

€ 2.50

10

5114644A00
ref: 10

CYLINDER,FRONT FORK

€ 0.00

11

5119645200
ref: 11

RING,PISTON

€ 5.50

12

5115233300
ref: 12

BUSH,GUIDE

€ 11.50

13

5116801A30
ref: 13

SPACER,SEAL

€ 5.00

14

5115320520
ref: 14

OIL SEAL,FRONT FORK

€ 14.00

15

5115631231
ref: 15

CIRCLIP,FORK OIL SEAL

€ 3.50

16

5117301A00
ref: 16

SEAL,DUST

€ 10.00

17

5111001A30
ref: 17

TUBE,INNER

€ 242.00

18

5112133300
ref: 18

PISTON

€ 10.50

19

5117144A00
ref: 19

SPRING

€ 0.00

20

5119220510
ref: 20

SPRING,JOINT

€ 2.00

21

5117644A00
ref: 21

SPACER

€ 0.00

22

5118131030
ref: 22

O RING

€ 3.50

23

5117547400
ref: 23

SPRING SEAT B

€ 5.50

24

5116947400
ref: 24

RING,STOPPER

€ 2.50

25

5118931230
ref: 25

CAP

€ 6.50

26

5157601A00
ref: 26

BAND

€ 7.50

27-1

5157101A00019
ref: 27-1
MODEL F FOR 19F,14C

BOOT

€ 32.50

27-2

5157101A0019F
ref: 27-2
MODEL F/H

BOOT

€ 37.50

27-3

5157101A00019
ref: 27-3
MODEL J FOR 34S

BOOT

€ 32.50

27-4

5157101A0034S
ref: 27-4
MODEL J FOR 14L,21C

BOOT

€ 37.50

28

5157501A00
ref: 28

BAND

€ 6.50
