CYLINDER

DR125S 1985 (F) (E01 E02 E04 E18 E24)

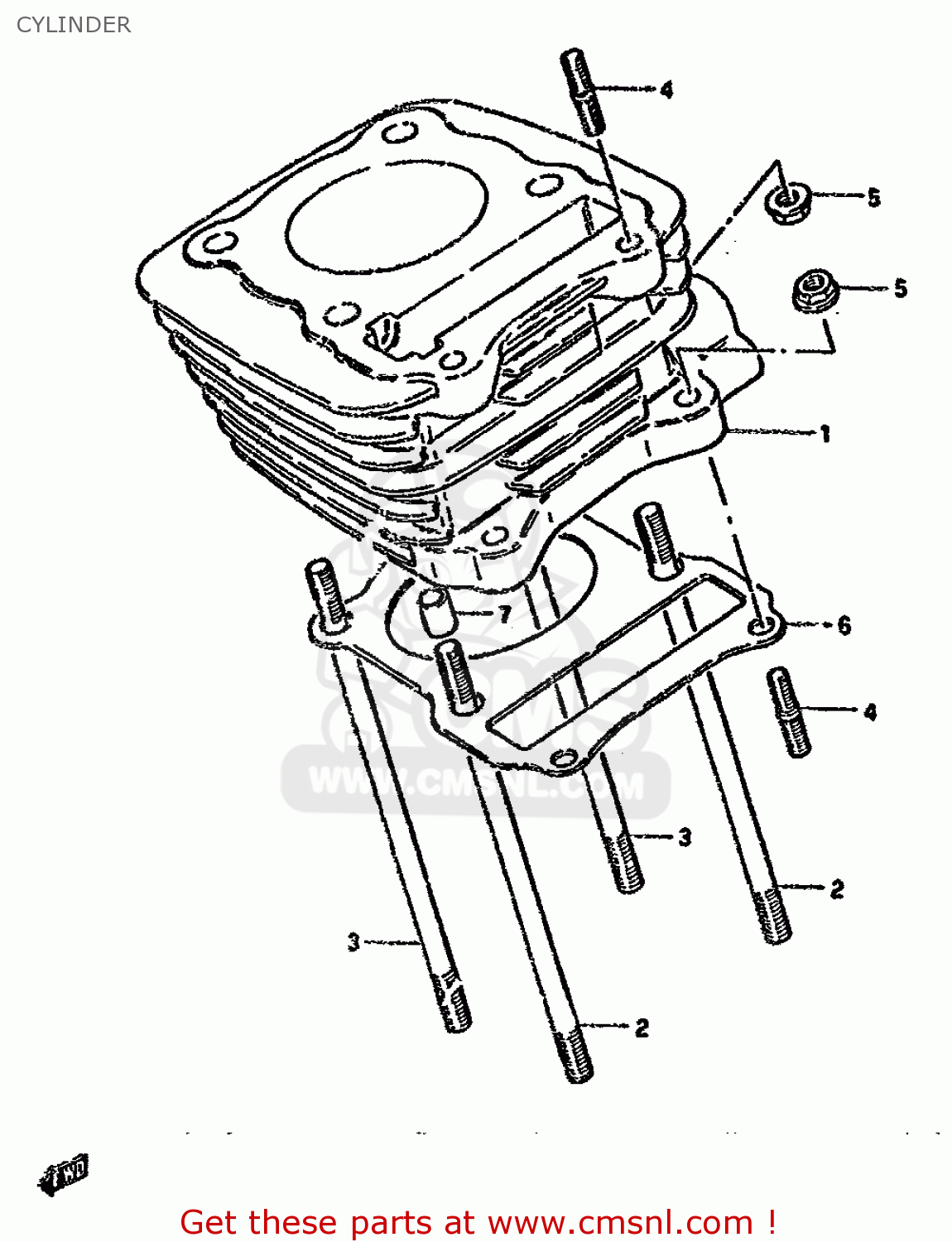

Cylinder diagram DR125S 1985 (F) (E01 E02 E04 E18 E24)

CYLINDER DR125S 1985 (F) (E01 E02 E04 E18 E24)

CYLINDER DR125S 1985 (F) (E01 E02 E04 E18 E24)

prices are in EUR

ref

part #

description

quantity

1-1

1121005211
ref: 1-1
MODEL F

CYLINDER

€ 263.50

1-2

1121044A00
ref: 1-2
MODEL H/J

CYLINDER

€ 263.50

2

0910808062
ref: 2

BOLT,STUD

€ 4.50

3

0910808089
ref: 3

BOLT,STUD

€ 6.00

4

0142106255
ref: 4

STUD 6X25

€ 2.00

5

0831616064
ref: 5

NUT 6MM

€ 2.50

6

1124105200
ref: 6

GASKET,CYLINDER (MCA)

€ 4.50

7

0421111149
ref: 7

PIN

€ 2.00
