STAND-REAR BRAKE
DR125S 1985 (F) (E01 E02 E04 E18 E24)

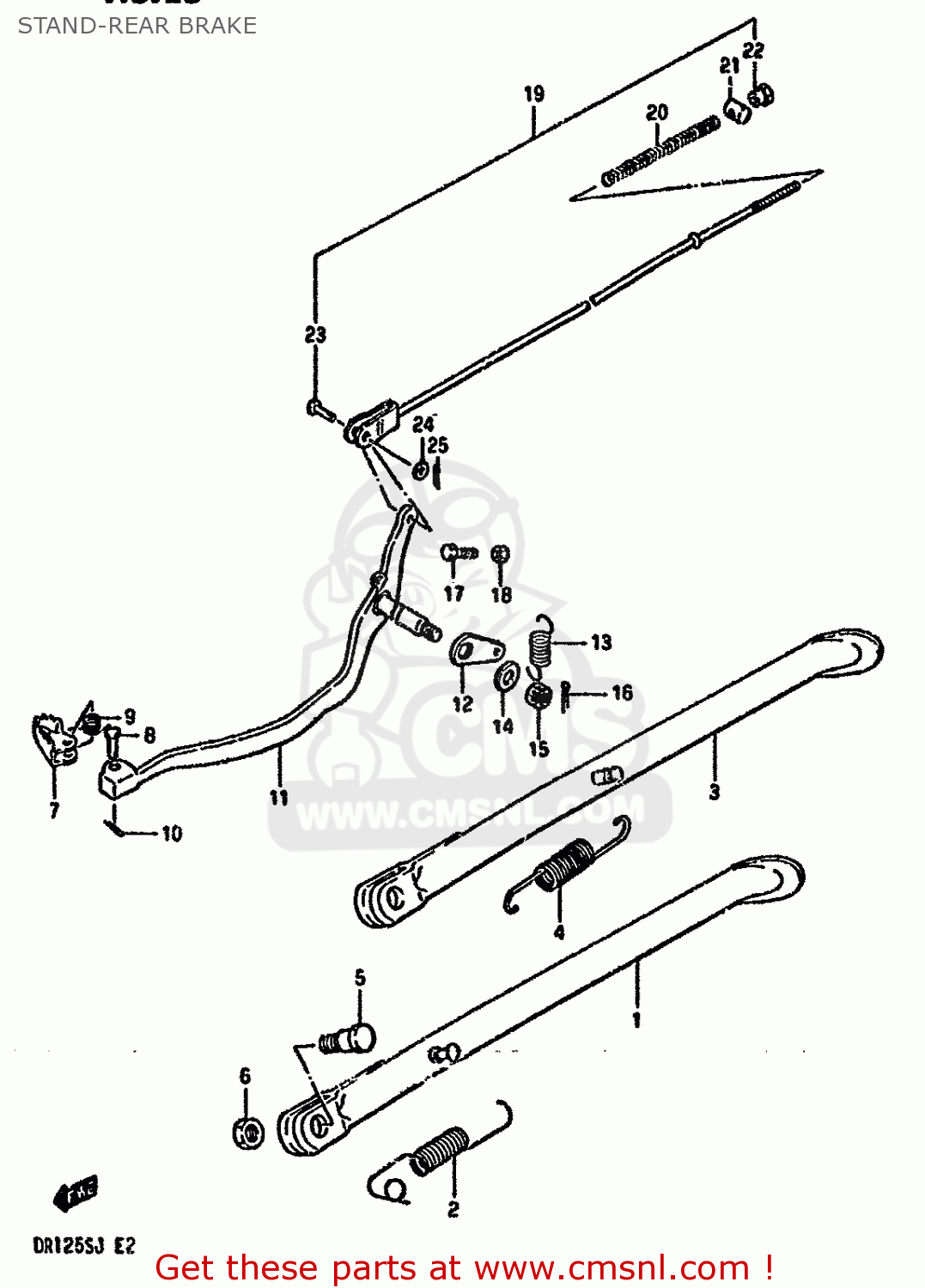

Stand-rear brake diagram DR125S 1985 (F) (E01 E02 E04 E18 E24)
STAND-REAR BRAKE DR125S 1985 (F) (E01 E02 E04 E18 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
4231044A00019
ref: 1-1
MODEL F FOR 19F,14C
STAND,PROP
€ 206.00
1-2
4231044A0019F
ref: 1-2
MODEL F FOR 10V,21C,
STAND,SIDE
€ 206.00
1-3
4231044A0013L
ref: 1-3
MODEL H
STAND,SIDE
€ 206.00
1-4
4231044A00019
ref: 1-4
MODEL J E4 FOR 34S
STAND,PROP
€ 206.00
1-5
4231044A0034S
ref: 1-5
MODEL J E4 FOR 14L,2
STAND,PROP
€ 0.00
2
0944317007
ref: 2
SPRING
€ 4.50
3-1
4231044A20019
ref: 3-1
MODEL F,E18 FOR 19F,
STAND, PROP (BLACK)
€ 27.50
3-2
4231044A2019F
ref: 3-2
MODEL F,E18 FOR 10V,
STAND,PROP (BLUE)
€ 27.50
3-3
4231044A2013L
ref: 3-3
MODEL H E2,E15,E18
STAND,PROP (SILVER)
€ 27.50
3-4
4231044A20019
ref: 3-4
MODEL J E2,E15 FOR 3
STAND, PROP (BLACK)
€ 27.50
3-5
4231044A2034S
ref: 3-5
MODEL J E2,E15 FOR 1
STAND,PROP(BLUE)
€ 27.50
4
0944314056
ref: 4
E15,E18,MODEL H/J E2
SPRING
€ 4.00
5-1
0911110019
ref: 5-1
MODEL F
BOLT L:30
€ 4.50
5-2
0911110038
ref: 5-2
MODEL H/J
BOLT L:30
€ 4.50
6
0831022107
ref: 6
NUT
€ 2.50
7
4311014130
ref: 7
PEDAL,BRAKE
€ 6.00
8
0920006038
ref: 8
PIN
€ 2.00
9
0944411004
ref: 9
SPRING
€ 3.00
10
0411120158
ref: 10
PIN
€ 1.50
11
4312044A10
ref: 11
ARM,BRAKE PEDAL
€ 34.00
12
4312838200
ref: 12
ARM,BRAKE RETURN SPRING
€ 3.50
13
0944314002
ref: 13
SPRING
€ 2.50
14
0821108202
ref: 14
WASHER
€ 1.50
15
0831441088
ref: 15
NUT 8MM
€ 2.50
16
0411120208
ref: 16
PIN 20X20
€ 1.50
17
0910006009
ref: 17
BOLT(6X23)
€ 1.50
18
0831011067
ref: 18
NUT 6MM
€ 2.50
19
4330044A02
ref: 19
ROD ASSEMBLY,REAR BRAKE
€ 20.00
20
0944009004
ref: 20
SPRING
€ 2.00
21
0920913005
ref: 21
PIN
€ 3.50
22
0915006009
ref: 22
NUT (6MM)
€ 3.50
23
0920006013
ref: 23
PIN(L:13.5)
€ 2.00
24
0832221067
ref: 24
WASHER
€ 2.00
25
0411120208
ref: 25
PIN 20X20
€ 1.50
