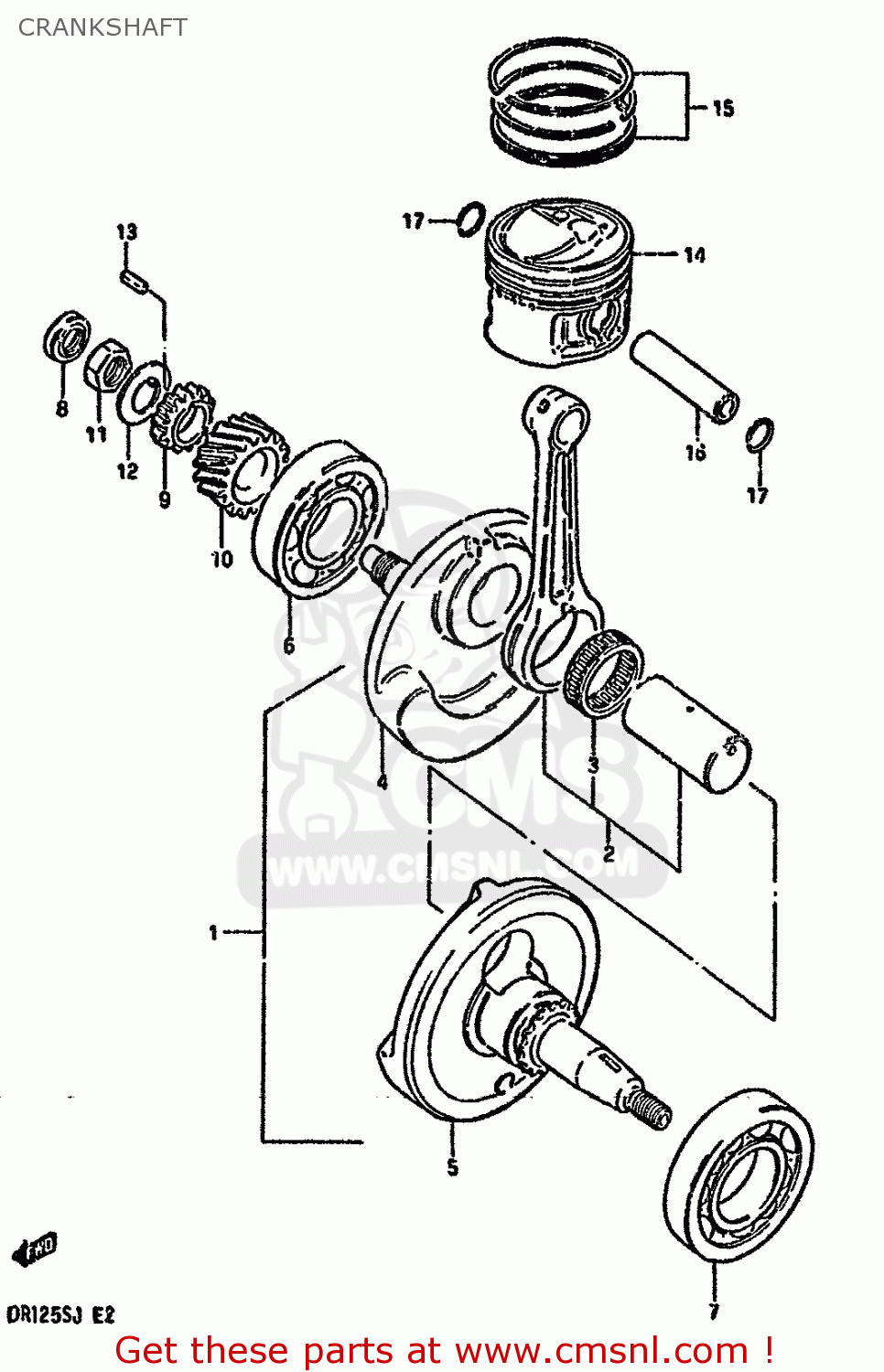

CRANKSHAFT

ref

part #

description

quantity

1

1220005224
ref: 1

CRANKSHAFT ASSEMBLY

€ 312.50

2

1220005851
ref: 2

CRANKSHAFT ASSEMBLY

€ 163.00

3

09263280220B0
ref: 3

BEARING

€ 24.50

4

1222105201
ref: 4

CRANKSHAFT

€ 150.50

5

1226105202
ref: 5

CRANKSHAFT,LEFT

€ 156.00

6

0926228014
ref: 6

BEARING(28X68X18)

€ 40.00

7

0926235038
ref: 7
FROM 09262-35034

BEARING(35X72X17)

€ 38.00

8

0928212001
ref: 8

OIL SEAL

€ 9.00

9

1632105200
ref: 9

GEAR,OIL PUMP DRIVE

€ 18.00

10

2111105200
ref: 10

GEAR,PRIMARY DRIVE

€ 33.00

11

0914016019
ref: 11

NUT

€ 4.00

12

0916616012
ref: 12

WASHER

€ 1.50

13

0942104004
ref: 13

KEY

€ 3.50

14-1

1211105202
ref: 14-1

PISTON (STD)

€ 39.50

14-2

1211105202050
ref: 14-2
OPT

PISTON (OS:0.5)

€ 70.00

14-3

1211105202100
ref: 14-3
OPT

PISTON (OS:1.0)

€ 77.00

15-1

1214005211
ref: 15-1

RING SET,PISTON

€ 37.50

15-2

1214005211050
ref: 15-2
OPT

RING SET,PISTON (OS:0.5)

€ 88.00

15-3

1214005211100
ref: 15-3
OPT

RING SET,PISTON (OS:1.0)

€ 39.50

16

1215105220
ref: 16

PIN,PISTON

€ 6.50

17

0938114001
ref: 17

RING,SNAP 14MM

€ 1.50
