DR125S 1985 (F) (E01 E02 E04 E18 E24)
Electrical diagram DR125S 1985 (F) (E01 E02 E04 E18 E24)

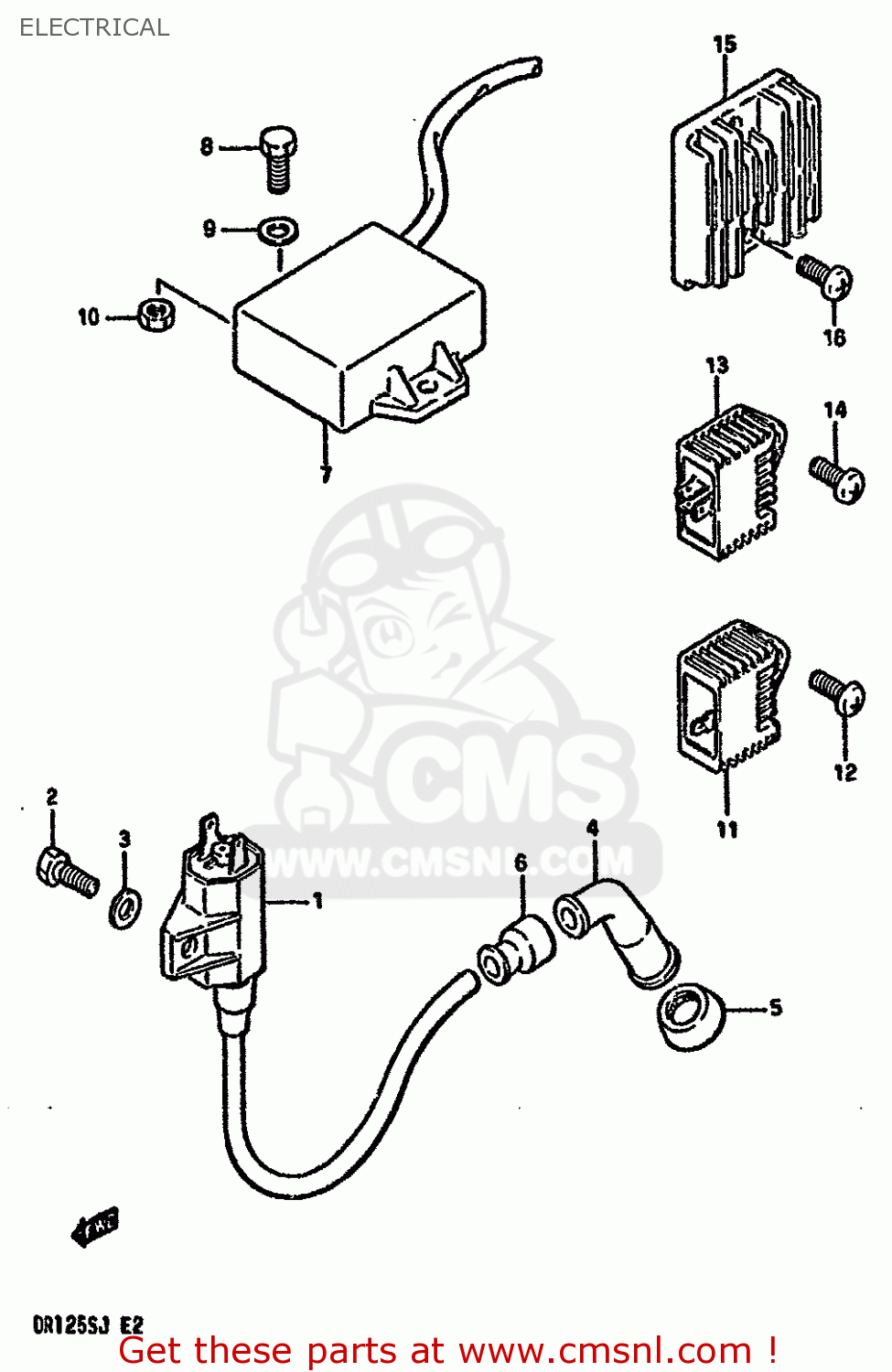

ELECTRICAL DR125S 1985 (F) (E01 E02 E04 E18 E24)
×
prices are in EUR
ref
part #
description
quantity
1
3341042A00
ref: 1
COIL ASSEMBLY,IGNITION
€ 80.50
2
0110706166
ref: 2
BOLT
€ 2.00
3
0832221066
ref: 3
WASHER, LOWER
€ 2.00
4
3351043010
ref: 4
CAP,SPARK PLUG
€ 11.50
5
3354124510
ref: 5
SEAL,SPARK PLUG CAP
€ 7.00
6-1
3354298000
ref: 6-1
MODEL F/H
SEAL,SPARK PLU
€ 4.50
6-2
3354238B00
ref: 6-2
MODEL J
SEAL,HIGH TENSION CORD
€ 4.50
7
3290044A00
ref: 7
CDI UNIT
€ 250.50
8
0110706166
ref: 8
BOLT
€ 2.00
9
0832221066
ref: 9
WASHER, LOWER
€ 2.00
10
0831011066
ref: 10
NUT
€ 2.00
11
3250044A00
ref: 11
MODEL F/H
REGULATOR ASSY,VOLTAGE
€ 0.00
12
0211206166
ref: 12
SCREW
€ 2.00
13
3280038200
ref: 13
E1
RECTIFIER ASSY,REGULATOR
€ 72.50
14
0211206166
ref: 14
E1
SCREW
€ 2.00
15
3280042A00
ref: 15
E2,E4,E15,E18,E21,E2
RECTIFIER ASSY
€ 148.50
16
0211206166
ref: 16
E2,E4,E15,E18,E21,E2
SCREW
€ 2.00
