FOOTREST
DR125S 1985 (F) (E01 E02 E04 E18 E24)

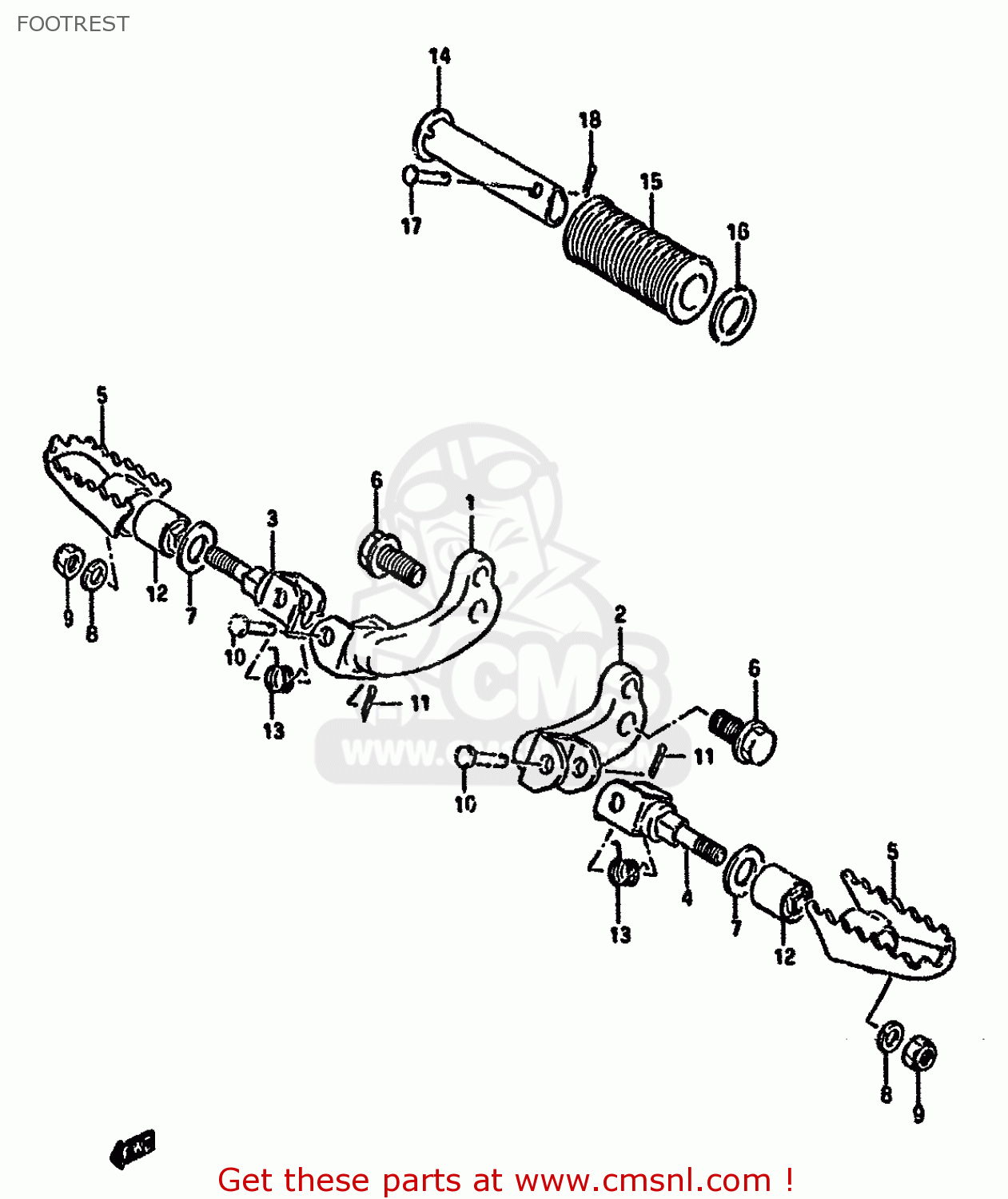

Footrest diagram DR125S 1985 (F) (E01 E02 E04 E18 E24)
FOOTREST DR125S 1985 (F) (E01 E02 E04 E18 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
4351044A01019
ref: 1-1
MODEL F FOR 19F,14C
BAR,FRONT FOOTREST
€ 26.00
1-2
4351044A0119F
ref: 1-2
MODEL F FOR 10V,21C,
BAR,FRONT FOOTREST
€ 26.00
1-3
4351044A0213L
ref: 1-3
MODEL H
BAR,FRONT FOOTREST
€ 26.00
1-4
4351044A03019
ref: 1-4
MODEL J FOR 34S
BAR,FR FOOTREST,R
€ 26.00
1-5
4351044A0334S
ref: 1-5
MODEL J FOR 14L,21C
BAR,FRONT FOOTREST,RIGHT
€ 0.00
2-1
4352044A01019
ref: 2-1
MODEL F FOR 19F,14C
BAR,FRONT FOOTREST,LEFT
€ 24.00
2-2
4352044A0119F
ref: 2-2
MODEL F FOR 10V,21C,
BAR,FRONT FOOTREST,LEFT
€ 24.00
2-3
4352044A0213L
ref: 2-3
MODEL H
BAR,FRONT FOOTREST,LEFT
€ 24.00
2-4
4352044A03019
ref: 2-4
MODEL J FOR 34S
BAR,FR FOOTREST,L
€ 24.00
2-5
4352044A0334S
ref: 2-5
MODEL J FOR 14L,21C
BAR,FR FOOTREST,L
€ 15.00
3-1
4353044A01019
ref: 3-1
MODEL F FOR 19F,14C
BRACKET,FRONT FOOTREST
€ 24.50
3-2
4353044A0119F
ref: 3-2
MODEL F FOR 10V,21C,
BRACKET,FRONT FOOTREST
€ 24.50
3-3
4353044A0113L
ref: 3-3
MODEL H
BRACKET,FRONT FOOTREST
€ 24.50
3-4
4353044A01019
ref: 3-4
MODEL J FOR 34S
BRACKET,FRONT FOOTREST
€ 24.50
3-5
4353044A0134S
ref: 3-5
MODEL J FOR 14L,21C
BRACKET,FRONT FOOTREST
€ 24.50
4-1
4354044A01019
ref: 4-1
MODEL F FOR 19F,14C
HOLDER COMP,FRONT FOOT
€ 24.50
4-2
4354044A0119F
ref: 4-2
MODEL F FOR 10V,21C,
HOLDER COMP,FRONT FOOT
€ 24.50
4-3
4354044A0113L
ref: 4-3
MODEL H
HOLDER COMP,FRONT FOOT
€ 24.50
4-4
4354044A01019
ref: 4-4
MODEL J FOR 34S
HOLDER COMP,FRONT FOOT
€ 24.50
4-5
4354044A0134S
ref: 4-5
MODEL J FOR 14L,21C
HOLDER COMP,FRONT FOOT
€ 24.50
5-1
4355044A01019
ref: 5-1
MODEL F FOR 19F,14C
FOOTREST,FR
€ 17.50
5-2
4355044A0119F
ref: 5-2
MODEL F FOR 10V,21C,
FOOTREST,FRONT
€ 17.50
5-3
4355044A0113L
ref: 5-3
MODEL H
FOOTREST,FRONT
€ 17.50
5-4
4355044A01019
ref: 5-4
MODEL J FOR 34S
FOOTREST,FR
€ 17.50
5-5
4355044A0134S
ref: 5-5
MODEL J FOR 14L,21C
FOOTREST,FR
€ 0.00
6-1
0151712255
ref: 6-1
MODEL F/J
BOLT
€ 3.00
6-2
0152712258
ref: 6-2
MODEL H
BOLT
€ 2.50
7
0916010087
ref: 7
WASHER
€ 2.00
8
0832121104
ref: 8
WASHER,LOCK
€ 3.00
9-1
0915910036
ref: 9-1
MODEL F/J
NUT
€ 3.00
9-2
0915910027
ref: 9-2
MODEL H
NUT
€ 3.00
10
0920008002
ref: 10
PIN
€ 2.00
11
0411120158
ref: 11
PIN
€ 1.50
12
0931910053
ref: 12
BUSH
€ 17.50
13
0944814037
ref: 13
SPRING
€ 2.50
14
4361003001
ref: 14
BAR,FOOTREST RUBBER
€ 5.50
15
4361233200
ref: 15
RUBBER,PILLION FOOTREST
€ 4.50
16
0916019006
ref: 16
WASHER (19.5X32X2)
€ 2.00
17
0920006010
ref: 17
PIN
€ 2.50
18
0411120208
ref: 18
PIN 20X20
€ 1.50
