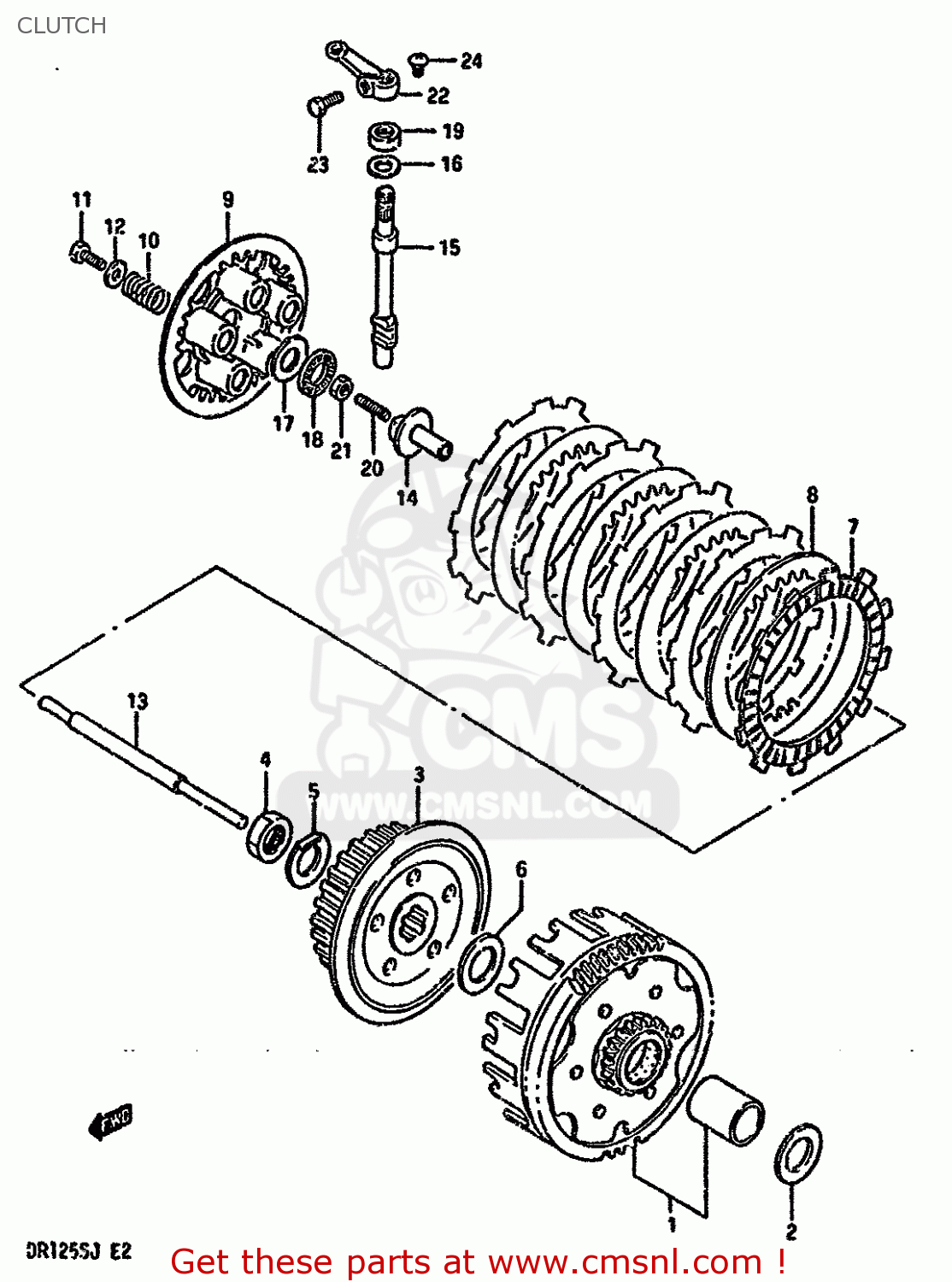

CLUTCH

ref

part #

description

quantity

1-1

2120044811
ref: 1-1
MODEL F/H,NT:59

GEAR ASSEMBLY,PRIMARY DRIVE

€ 166.00

1-2

2120044812
ref: 1-2
MODEL J,NT:59

GEAR ASSY,PRI DRIVEN(NT:59)

€ 166.00

2

0821120353
ref: 2

WASHER

€ 2.50

3

2141144A00
ref: 3

HUB,CLUTCH SLEEVE

€ 47.00

4

0914016014
ref: 4

NUT

€ 4.50

5

0916916003
ref: 5

WASHER

€ 2.00

6

0821120352
ref: 6

WASHER

€ 3.00

7

2144119A00
ref: 7

PLATE,CLUTCH DRIVE (MCA)

€ 12.00

8

2145119A00
ref: 8

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

9

2146214102
ref: 9

PLATE,CLUTCH PRESSURE

€ 16.00

10

0944015014
ref: 10

SPRING

€ 4.00

11

0910005002
ref: 11

BOLT(5X16)

€ 2.00

12

0916005017
ref: 12

WASHER (5.5X16X1.2)

€ 2.50

13

2311005202
ref: 13

ROD,CLUTCH PUSH

€ 11.00

14

2312142A00
ref: 14

PIECE,CLUTCH PUSH

€ 17.00

15

2312205200
ref: 15

CAMSHAFT,CLUTCH RELEASE

€ 31.00

16

0821110201
ref: 16

WASHER,THRUST

€ 2.00

17

0916015015
ref: 17

WASHER

€ 4.00

18

0926315003
ref: 18

BEARING(15X28X2)

€ 7.00

19

0928210007
ref: 19

OIL SEAL

€ 7.50

20

0913406010
ref: 20

SCREW(6X25)

€ 3.00

21

0831022067
ref: 21

NUT 6MM

€ 2.50

22

2327146000
ref: 22

ARM,CLUTCH RELEASE

€ 14.50

23

0110706166
ref: 23

BOLT

€ 2.00

24

0214206108
ref: 24

SCREW

€ 2.00

all assemblies
