TRANSMISSION
DR125S 1985 (F) (E01 E02 E04 E18 E24)

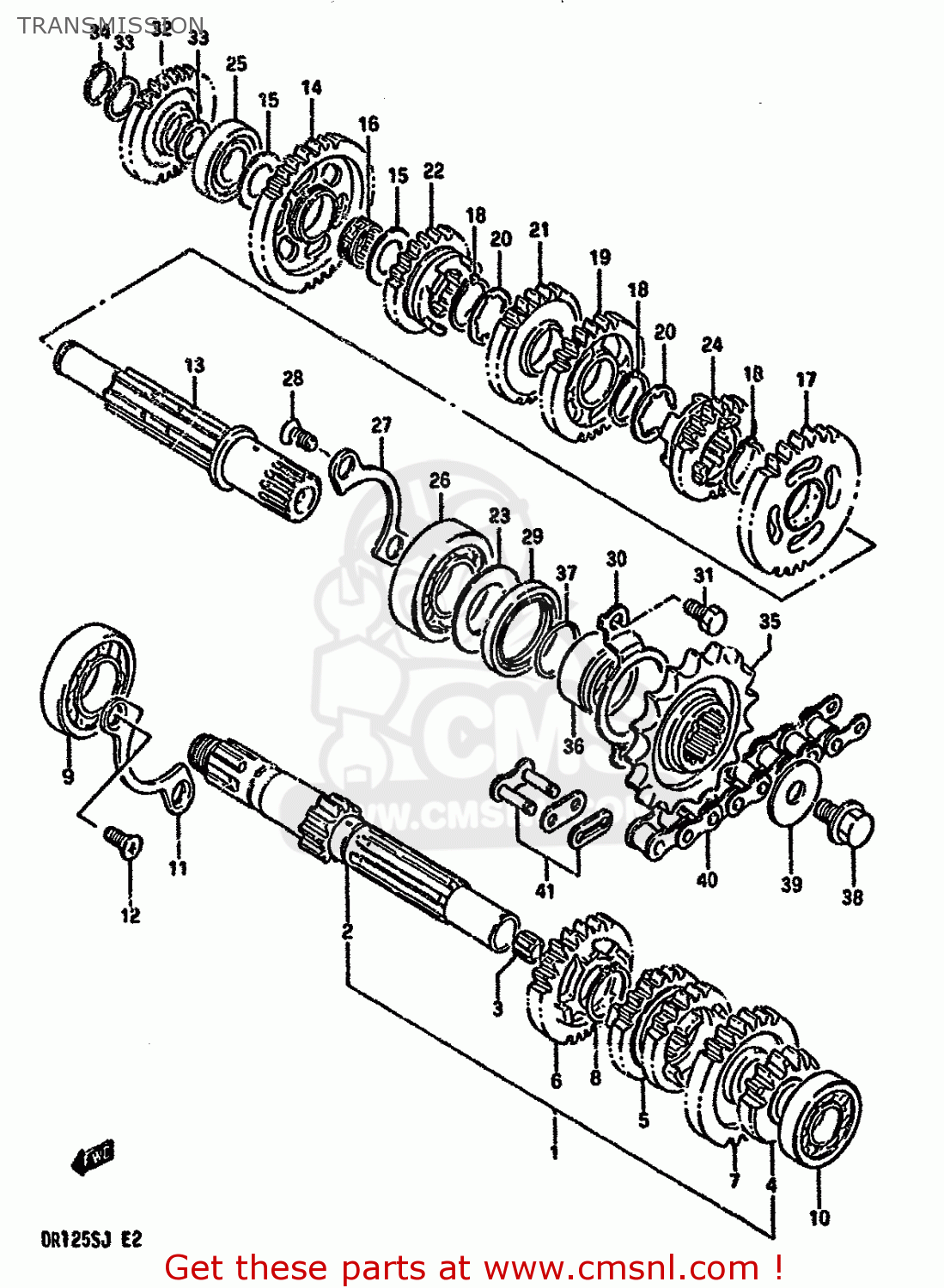

Transmission diagram DR125S 1985 (F) (E01 E02 E04 E18 E24)
TRANSMISSION DR125S 1985 (F) (E01 E02 E04 E18 E24)
×
prices are in EUR
ref
part #
description
quantity
1
2412044A00
ref: 1
SHAFT ASSEMBLY,COUNTER
€ 0.00
2
2412105201
ref: 2
SHAFT,COUNTER
€ 97.00
3
2412538201
ref: 3
BUSH
€ 3.50
4
2422105201
ref: 4
GEAR,SECOND DRIVE
€ 46.00
5
2423105202
ref: 5
GEAR,THIRD & FOURTH DRIVE,N
€ 61.50
6
2425105211
ref: 6
GEAR,FIFTH DRIVE
€ 50.00
7
2426044A00
ref: 7
GEAR,SIXTH DRIVE
€ 66.50
8
0938020009
ref: 8
CIRCLIP
€ 2.00
9
0926220062
ref: 9
BEARING
€ 28.00
10
0812360020
ref: 10
BEARING, LH
€ 16.00
11
2474105200
ref: 11
RETAINER,DRIVE SHAFT BEARING
€ 3.50
12
0212206128
ref: 12
SCREW
€ 3.00
13
2413044A00
ref: 13
SHAFT,DRIVE
€ 114.50
14
2431105200
ref: 14
GEAR,FIRST DRIVEN
€ 53.00
15
0821115251
ref: 15
WASHER
€ 2.00
16
0926315023
ref: 16
BEARING(15X19X7.8)
€ 10.50
17
2432005201
ref: 17
GEAR,SECOND DRIVEN
€ 40.50
18
0938020009
ref: 18
CIRCLIP
€ 2.00
19
2433105201
ref: 19
GEAR,THIRD DRIVEN
€ 50.00
20
0916720011
ref: 20
WASHER,LOCK
€ 2.50
21
2434105201
ref: 21
GEAR,FOURTH DRIVEN
€ 50.00
22
2435105210
ref: 22
GEAR,FIFTH DRIVEN
€ 50.50
23
2435942A00
ref: 23
WASHER,OIL SEALING
€ 3.00
24
2436105210
ref: 24
GEAR,SIXTH DRIVEN
€ 66.50
25
0926415001
ref: 25
BEARING(15X36X12)
€ 39.00
26
0926222018
ref: 26
BEARING(22X50X14)
€ 17.50
27
2474105200
ref: 27
RETAINER,DRIVE SHAFT BEARING
€ 3.50
28
0212206128
ref: 28
SCREW
€ 3.00
29
0928330053
ref: 29
SEAL,OIL(30X40X6)
€ 8.00
30
2475142A01
ref: 30
RETAINER,DRIVESHAFT O
€ 2.50
31
0110706106
ref: 31
BOLT
€ 2.00
32
2626005201
ref: 32
GEAR,KICK STARTER IDLE(NT:26)
€ 35.50
33
0821115201
ref: 33
WASHER
€ 2.00
34
0833131159
ref: 34
CIRCLIP,15MM
€ 2.00
35
2751144A00
ref: 35
SPROCKET,ENGINE
€ 35.50
36
2753142A00
ref: 36
SPACER,ENGINE SPROCKET
€ 12.00
37
0928021008
ref: 37
O RING(D:2.5,ID:21)
€ 2.00
38
0151708125
ref: 38
BOLT
€ 3.50
39
0821108283
ref: 39
WASHER
€ 2.50
40
2760020511
ref: 40
CHAIN ASSEMBLY,DRIVE
€ 46.50
41-1
2762046911
ref: 41-1
JOINT SET,CHAIN
€ 4.50
41-2
2762005220
ref: 41-2
JOINT ASSEMBLY,CHAIN
€ 7.00
