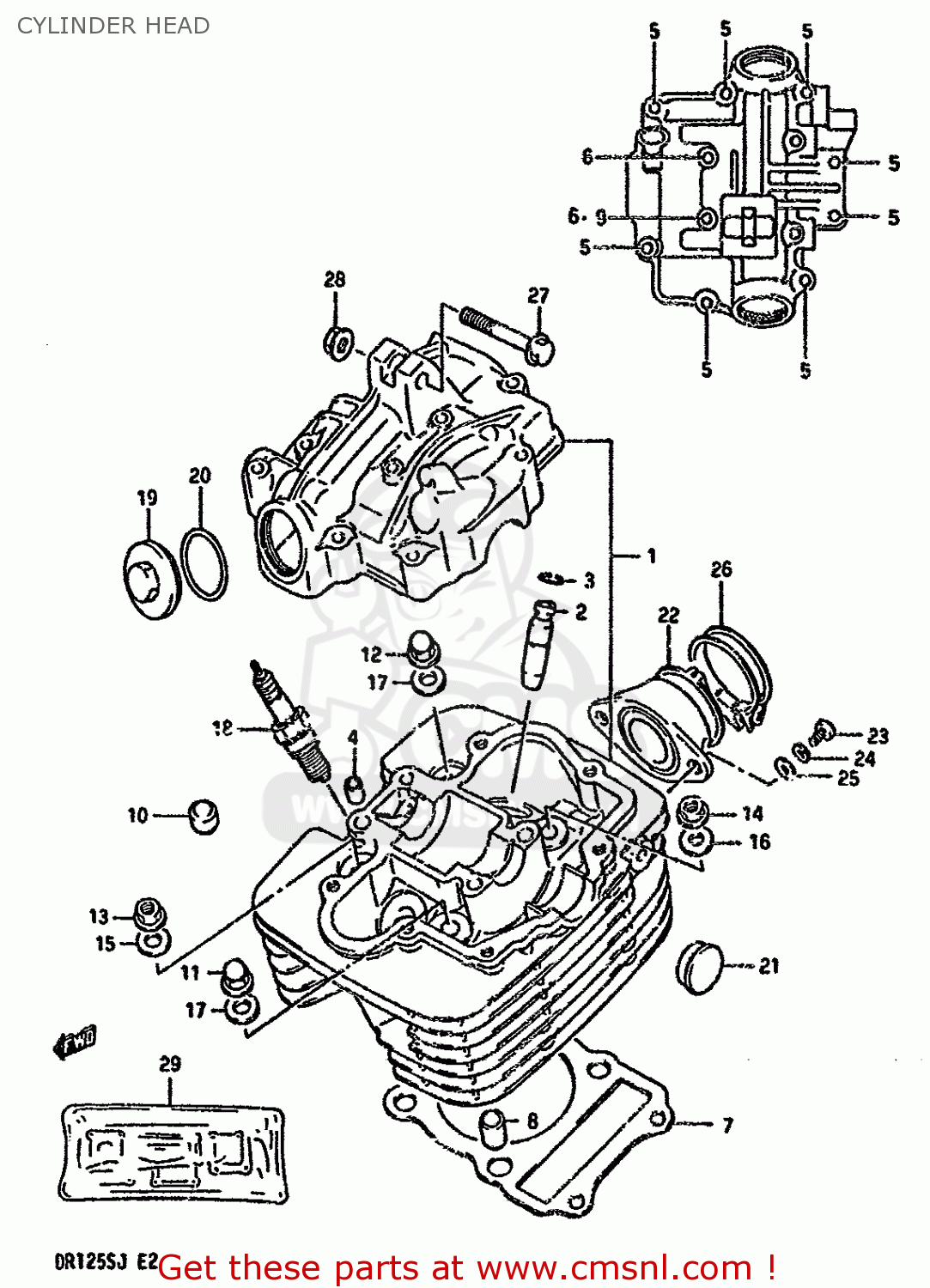

CYLINDER HEAD

ref

part #

description

quantity

1-1

1110044A00
ref: 1-1
MODEL F

HEAD ASSY,CYLINDER

€ 307.00

1-2

1110044A10
ref: 1-2
MODEL H/J

HEAD ASSEMBLY,CYLINDER

€ 278.00

2

1111505270
ref: 2

GUIDE,VALVE

€ 18.50

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0920608001
ref: 4

PIN(6.2X8X11)

€ 2.00

5

0151706354
ref: 5

BOLT 6X35

€ 2.50

6

0151706605
ref: 6

BOLT ,6X60

€ 2.50

7

1114105201
ref: 7

GASKET,CYLINDER HEAD (NAS)

€ 7.50

8

0421111169
ref: 8

PIN

€ 2.00

9

0916806023
ref: 9
FROM 09168-06015

GASKET(5.8X13X1.2) (NAS)

€ 2.00

10

1115145000
ref: 10

PAD,CYLINDER HEAD

€ 3.00

11

0915908047
ref: 11

NUT

€ 7.00

12

0915908064
ref: 12

NUT (8MM)

€ 7.00

13

0831616085
ref: 13

NUT 8MM

€ 3.00

14

0831616088
ref: 14

NUT

€ 2.50

15

0916008053
ref: 15

WASHER (8.5X19X2.3)

€ 2.00

16

0916008039
ref: 16

WASHER(8.5X19X2.3)

€ 2.00

17

0916808012
ref: 17

GASKET (NAS)

€ 4.50

18-1

0948200144
ref: 18-1
E1,E24

SPARK PLUG D8EA

€ 3.50

18-2

0948200145
ref: 18-2
E1,E24

SPARK PLUG X24ES-U

€ 3.50

18-3

0948200149
ref: 18-3
E2,E4,E15,E18,E21

SPARK PLUG DR8ES-L

€ 3.50

18-4

0948200223
ref: 18-4
E2,E4,E15,E18,E21

PLUG,SPARK(X24ESR-U)

€ 3.50

19-1

1117505260
ref: 19-1
MODEL F

CAP,INSPECTION

€ 13.00

19-2

1117542A00
ref: 19-2
MODEL H/J

CAP,INSPECTION

€ 9.50

20

0928030001
ref: 20

O RING(D:3,ID:29.5)

€ 2.00

21

0924122002
ref: 21

PLUG(OD:22.5)

€ 5.50

22

1311044A00
ref: 22

PIPE,INTAKE

€ 20.50

23

0211206164
ref: 23

SCREW

€ 2.00

24

0832121064
ref: 24

WASHER,LOCK

€ 2.00

25

0832221064
ref: 25

WASHER

€ 2.00

26

0940244208
ref: 26

CLAMP

€ 5.50

27-1

0910308082
ref: 27-1
MODEL F/J

BOLT 8X50

€ 7.00

27-2

0910308081
ref: 27-2
MODEL H

BOLT(8X50)

€ 3.50

28-1

0831931085
ref: 28-1
MODEL F/J

NUT

€ 2.50

28-2

0831931087
ref: 28-2
MODEL H

NUT

€ 2.50

29

1140005891
ref: 29
OPT

GASKET SET

€ 44.00
