AIR CLEANER

DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

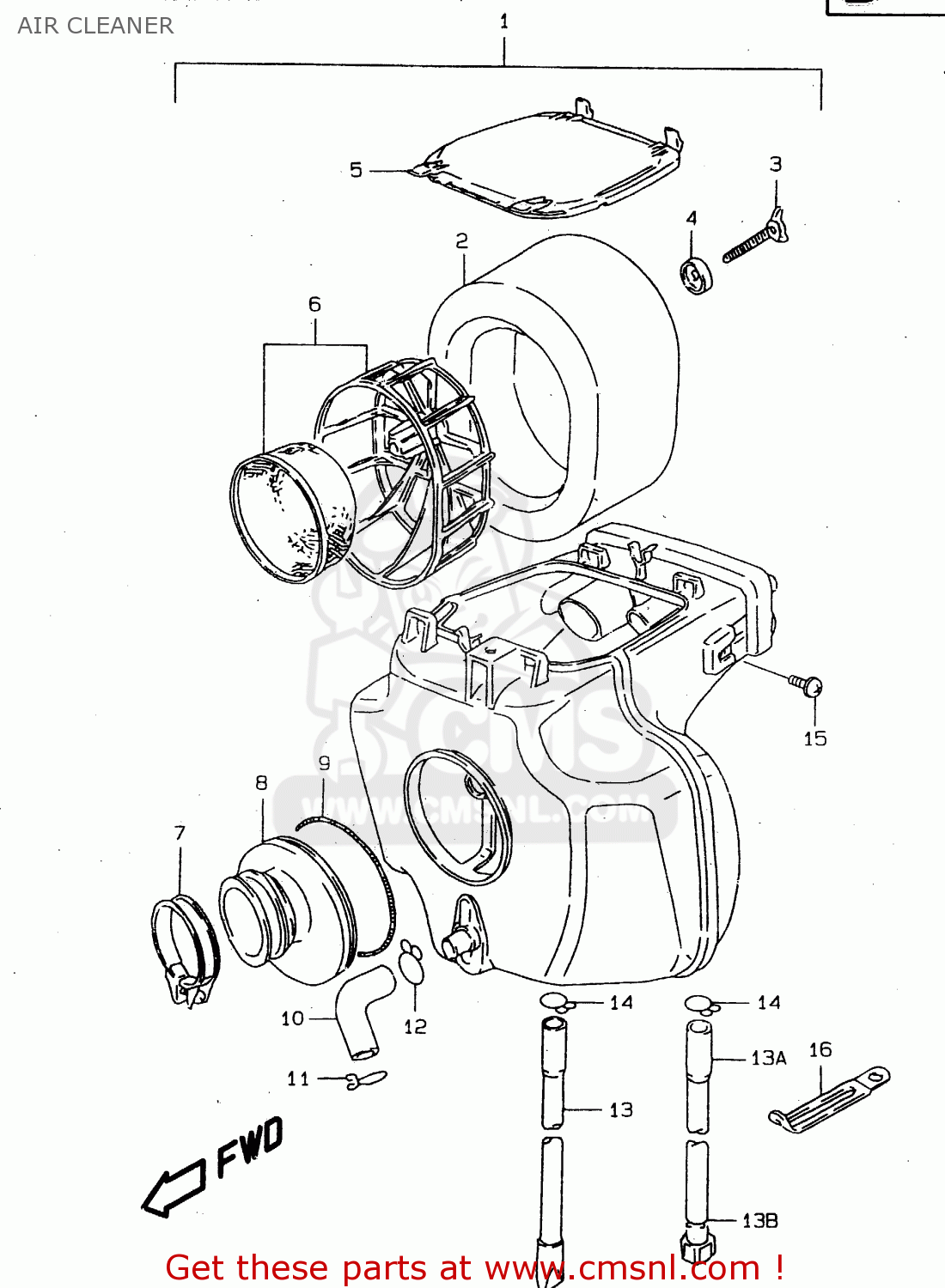

Air cleaner diagram DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

AIR CLEANER DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
AIR CLEANER DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
AIR CLEANER DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1
1370044A20
ref: 1
CLEANER ASSEMBLY,AIR
€ 133.50
1
1370044A30
ref: 1
E18, E22
CLEANER ASSY, AIR
€ 127.50
2
1378042A01
ref: 2
FILTER
1378042A01
€ 20.50
3
1383142A00
ref: 3
BOLT,WING
1383142A00
€ 4.00
4
1379616700
ref: 4
WASHER,FILTER HOLDER
1379616700
€ 2.50
5
1374042A00
ref: 5
CAP
1374042A00
€ 16.50
6
1379042A00
ref: 6
HOLDER
1379042A00
€ 54.50
7
0940256208
ref: 7
CLAMP
0940256208
€ 3.50
8
1388144A20
ref: 8
TUBE,AIR CLEANER OUTLET
1388144A20
€ 18.50
9
1382638300
ref: 9
CLAMP,AIR CLEANER SIDE
1382638300
€ 3.00
10
1385342A00
ref: 10
TUBE,BREATHER
1385342A00
€ 8.00
10
1385044A30
ref: 10
E18, E22
TUBE,BREATHER
€ 0.00
11
0940114301
ref: 11
CLIP
0940114301
€ 2.00
12
0940114301
ref: 12
CLIP
0940114301
€ 2.00
13
1387011278
ref: 13
MODEL R
DRAIN TUBE
€ 13.50
13A
1387011458
ref: 13A
MODEL S/T/V/W/X
TUBE,DRAIN
1387011458
€ 13.50
13B
0940111101
ref: 13B
MODEL S/T/V/W/X
CLIP
0940111101
€ 2.50
14
0940113409
ref: 14
CLIP
0940113409
€ 2.50
15
0211236163
ref: 15
SCREW
0211236163
€ 2.50
16
0940406433
ref: 16
MODEL R/S
CLAMP(L:80)
0940406433
€ 3.00
