SPEEDOMETER

DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

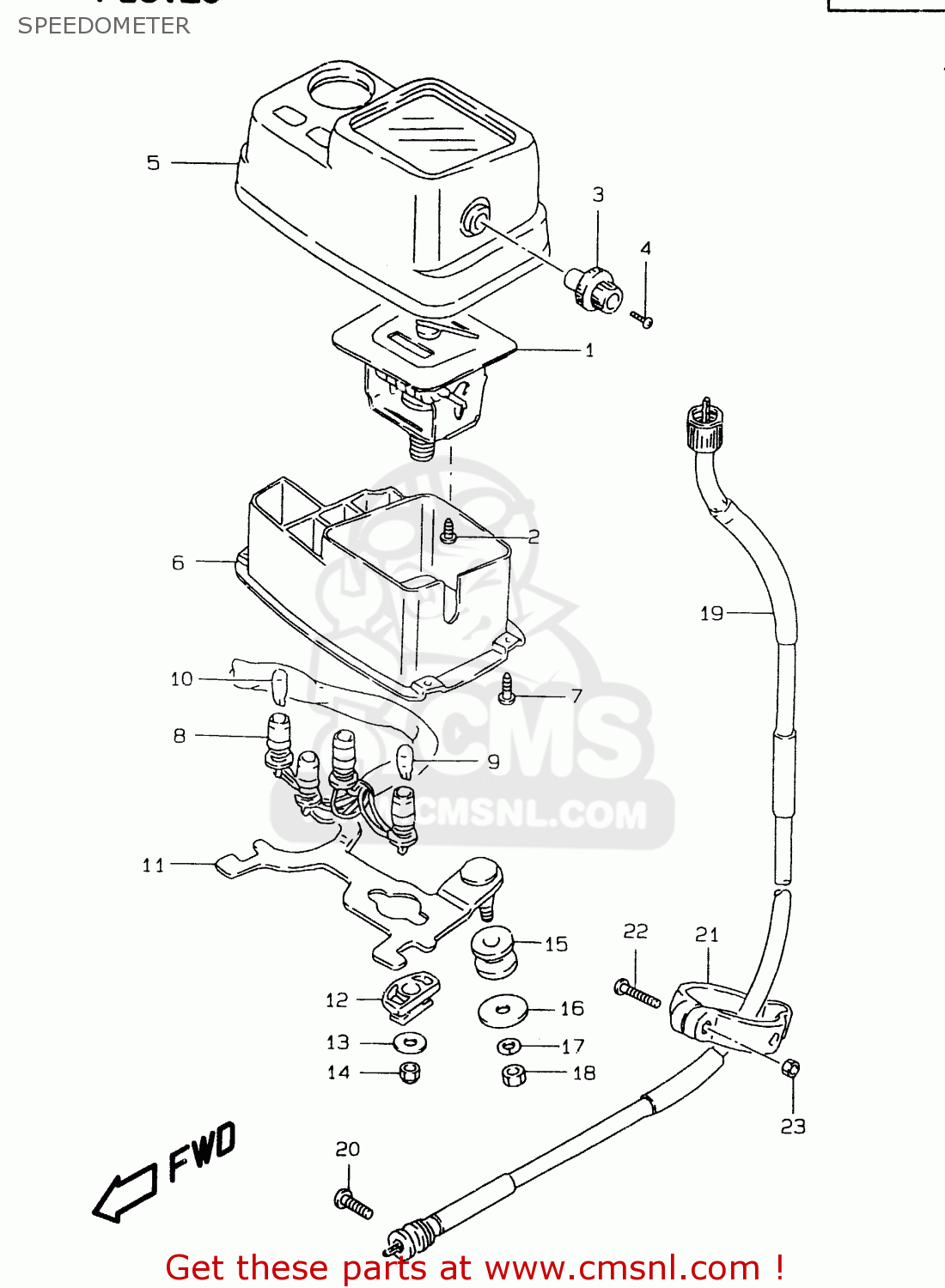

Speedometer diagram DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

SPEEDOMETER DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
SPEEDOMETER DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
SPEEDOMETER DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1
3412044A90
ref: 1
SPEEDOMETER
3412044A90
€ 392.00
2
0211274123
ref: 2
SCREW
€ 2.50
3
3412414A10
ref: 3
KNOB,TRIP
3412414A10
€ 8.50
4
3498113A00
ref: 4
MODEL R
ROTOR,SPEED
3498113A00
€ 2.00
4
0913902003
ref: 4
MODEL S/T/V/W/X
SCREW(2X6)
0913902003
€ 2.00
5
3415014A10
ref: 5
MODEL R, <-34150-14A
HOOD,METER
3415014A10
€ 48.00
5
3415014A70
ref: 5
MODEL R/S E4, E34
HOOD,METER
3415014A70
€ 51.00
5
3415044AD0
ref: 5
MODEL T/V/W/X
HOOD,METER
3415044AD0
€ 34.50
6
3411114A10
ref: 6
CASE,METER
3411114A10
€ 36.50
7
3418314A00
ref: 7
MODEL R
SCREW
€ 1.50
7
3418412B00
ref: 7
MODEL S/T/V/W/X
SCREW
3418412B00
€ 1.50
8
3417344A90
ref: 8
SOCKET ASSY
€ 0.00
9
0947112028
ref: 9
BULB(12V3.4W,T10)
0947112028
€ 3.50
10
0947112077
ref: 10
BULB(12V1.7W,T10,WB121)
0947112077
€ 1.00
11
3495044A00
ref: 11
BRACKET,METER
3495044A00
€ 40.00
12
3418914A10
ref: 12
CUSHION
3418914A10
€ 5.00
13
0916005017
ref: 13
WASHER (5.5X16X1.2)
0916005017
€ 2.50
14
0831000057
ref: 14
NUT
0831000057
€ 2.50
15
3495615100
ref: 15
CUSHION
3495615100
€ 4.00
16
0916006006
ref: 16
MODEL R/S/T
WASHER
0916006006
€ 2.00
16
0916006132
ref: 16
MODEL V/W/X
WASHER(6.5X18X1.6)
0916006132
€ 2.00
17
0832101063
ref: 17
LOCK WASHER
0832101063
€ 2.00
18
0831000063
ref: 18
NUT 6MM
0831000063
€ 2.00
19
3491044A20
ref: 19
CABLE ASSY,SPEEDOMETER
3491044A20
€ 42.50
20
0211205163
ref: 20
SCREW
0211205163
€ 2.00
21
3493801A00
ref: 21
CLAMP,SPEEDOMETER CABLE
3493801A00
€ 7.50
22
0211205163
ref: 22
SCREW
0211205163
€ 2.00
23
0831000053
ref: 23
NUT
€ 2.50
