WIRING HARNESS

DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

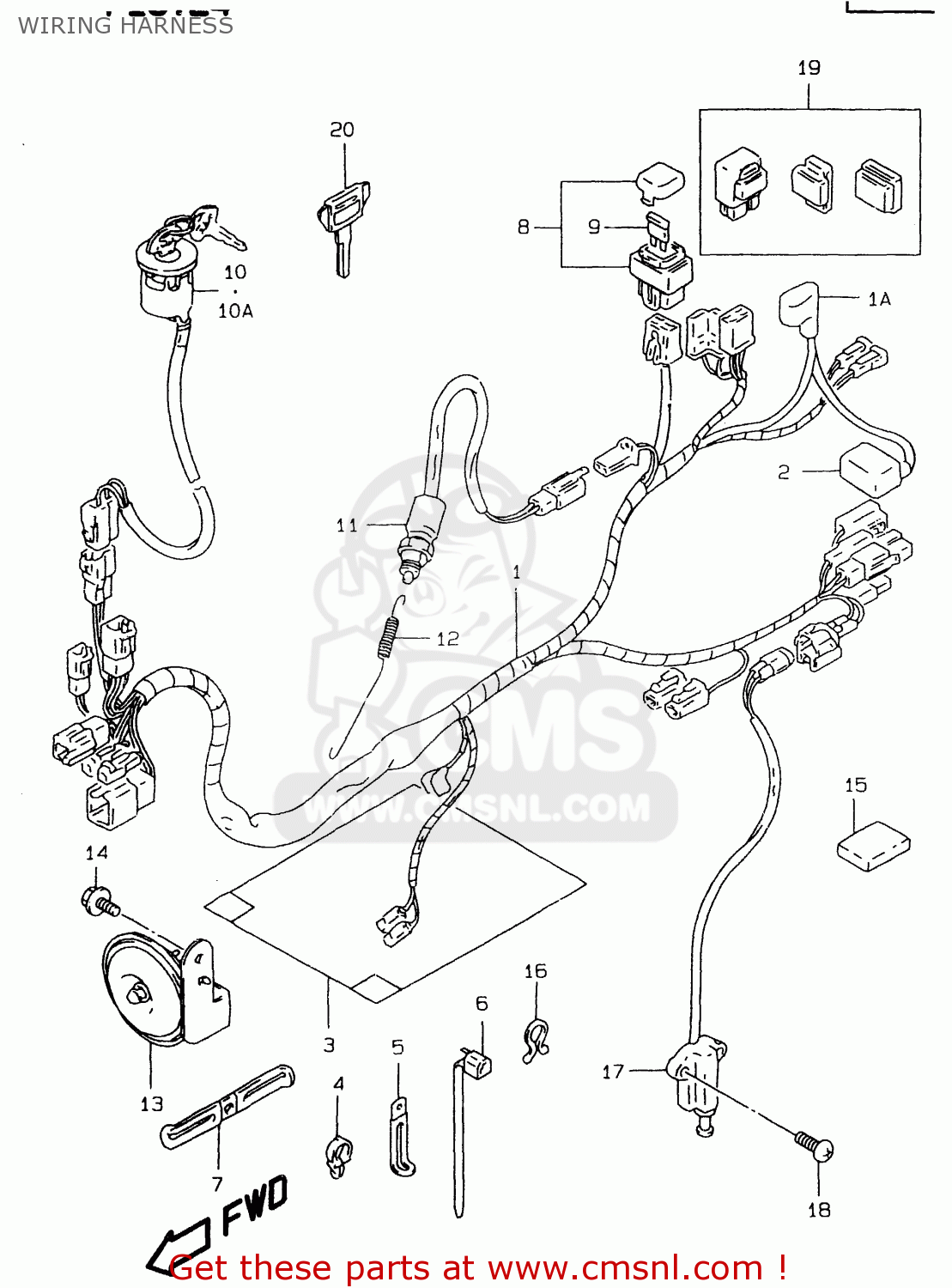

Wiring harness diagram DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

WIRING HARNESS DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
WIRING HARNESS DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
WIRING HARNESS DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1
3661042A01
ref: 1
MODEL R/S/T E1, E4
HARNESS, WIRING
€ 0.00
1
3661042A50
ref: 1
MODEL R/S/T E22
HARNESS,WIRING
€ 0.00
1
3661042AA0
ref: 1
MODEL V/W/X
HARNESS, WIRING
€ 261.50
1A
3186110D00
ref: 1A
CAP,STARTER RELAY
3186110D00
€ 4.00
2
3362410D00
ref: 2
CAP,BATTERY PLUS
€ 4.00
3
3661815D20
ref: 3
<-36618-15D02
COVER,WIRING HARNESS
3661815D20
€ 12.00
4
0940312404
ref: 4
CLAMP
€ 1.50
5
0940406434
ref: 5
CLAMP(L:80 T:1.0)
0940406434
€ 3.00
5
0940406433
ref: 5
<-09404-06426
CLAMP(L:80)
0940406433
€ 3.00
5
0940406432
ref: 5
<-09404-06206, <-094
CLAMP(L:65)
0940406432
€ 2.50
6
0940714403
ref: 6
<-09407-11401
CLAMP(L:125)
0940714403
€ 2.50
6
0940718402
ref: 6
CLAMP(L:165)
0940718402
€ 2.50
6
0940725402
ref: 6
<-09407-20404
CLAMP(L:250)
0940725402
€ 4.50
6
0940725401
ref: 6
CLAMP(L:235)
0940725401
€ 4.00
7
3665105301
ref: 7
CLAMP,STARTER MOTOR LEAD
3665105301
€ 5.00
8
3674009301
ref: 8
MODEL R
BOX ASSEMBLY,FUSE
€ 18.00
8
3674024B01
ref: 8
MODEL S/T/V/W/X
BOX ASSY,FUSE
3674024B01
€ 18.00
9
0948120101
ref: 9
FUSE(20A)
0948120101
€ 2.00
10
3711044A01
ref: 10
MODEL R/S/T/V
SWITCH ASSEMBLY,IGNITION
€ 70.00
10A
3711044A20
ref: 10A
MODEL W/X
SWITCH ASSY,IGNITION
3711044A20
€ 70.00
11
3774031D00
ref: 11
SWITCH ASSY,STOP LAMP
3774031D00
€ 20.50
12
0944306064
ref: 12
SPRING
0944306064
€ 3.50
13
3850044B00
ref: 13
<-38500-44B10
HORN ASSY
3850044B00
€ 48.00
14
0155006123
ref: 14
BOLT
0155006123
€ 2.50
15
3692014D00
ref: 15
PROTECTOR,WIRING HARNESS
3692014D00
€ 5.50
16
0940800012
ref: 16
CLIP(ID:11.5)
0940800012
€ 2.00
17
3784044X50
ref: 17
E4, E18, E22, E34
SWITCH ASSY,SIDE STAND
3784044X50
€ 75.50
18
0214206203
ref: 18
E4, E18, E22, E34
SCREW
0214206203
€ 2.00
19
3874024X50
ref: 19
E4, E18, E22, E34
RELAY ASSY
3874024X50
€ 37.50
20
3714603A00
ref: 20
OPT
KEY,BLANK(TYPE:C)
3714603A00
€ 6.00
20
3714603A10
ref: 20
OPT
KEY,BLANK(TYPE:D)
3714603A10
€ 6.00
20
3714603A20
ref: 20
OPT
KEY,BLANK(TYPE:E)
3714603A20
€ 6.00
20
3714603A30
ref: 20
OPT
KEY,BLANK(TYPE:F)
3714603A30
€ 6.00
