TURN SIGNAL LAMP

DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

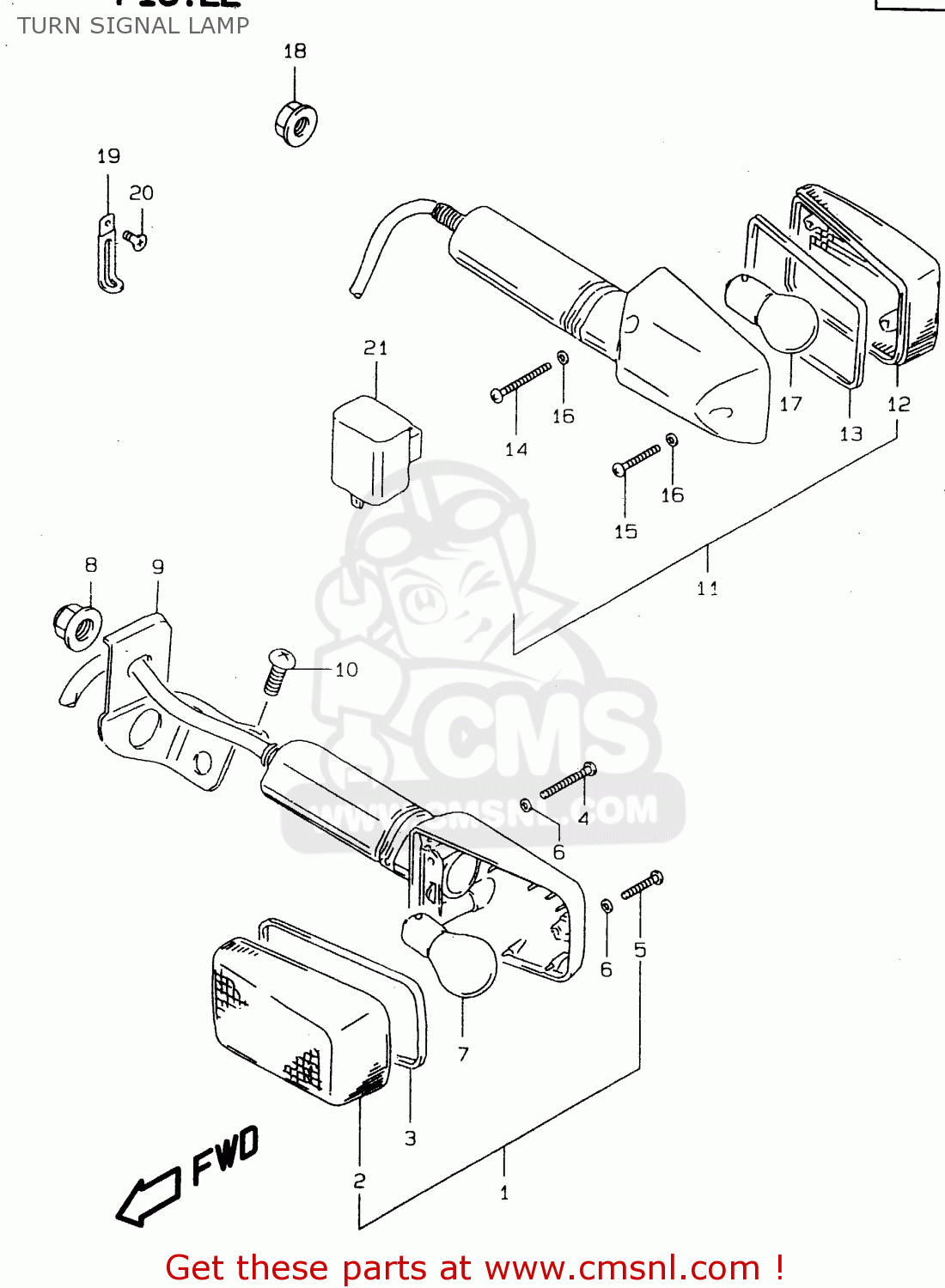

Turn signal lamp diagram DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

TURN SIGNAL LAMP DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
TURN SIGNAL LAMP DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
TURN SIGNAL LAMP DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1
3560129E30
ref: 1
LAMP ASSY,FR TURN SIGNAL
3560129E30
€ 57.50
1
3560129EC0
ref: 1
E18, E22
LAMP ASSY,FR TURN SIGNAL
3560129EC0
€ 78.00
2
3561217C20
ref: 2
LENS
3561217C20
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
3561327A00
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
3562327A00
€ 1.50
5
3572540511
ref: 5
SCREW
3572540511
€ 1.50
6
3562727A02
ref: 6
GASKET (NAS)
3562727A02
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
0947112045
€ 5.00
8
0831610103
ref: 8
NUT
0831610103
€ 2.00
9
3567044A01
ref: 9
BRACKET,FR TURN,R
3567044A01
€ 13.50
9
3568044A01
ref: 9
BRACKET,FR TURN,L
€ 13.50
10
0214205083
ref: 10
SCREW
0214205083
€ 2.00
11
3560329E90
ref: 11
<-35603-29E60
LAMP ASSY,RR TURNSIGNAL,R
3560329E90
€ 62.00
12
3565217C20
ref: 12
LENS
3565217C20
€ 6.50
13
3561327A00
ref: 13
GASKET (NAS)
3561327A00
€ 3.00
14
3562327A00
ref: 14
SCREW(3X30)
3562327A00
€ 1.50
15
3572540511
ref: 15
SCREW
3572540511
€ 1.50
16
3562727A02
ref: 16
GASKET (NAS)
3562727A02
€ 1.50
17
0947112045
ref: 17
BULB(12V21W)
0947112045
€ 5.00
18
0831610103
ref: 18
NUT
0831610103
€ 2.00
19
0940406432
ref: 19
<-09404-04402
CLAMP(L:65)
0940406432
€ 2.50
20
0354104103
ref: 20
SCREW
0354104103
€ 1.50
21
3861031X50
ref: 21
RELAY ASSY,TURNSIGNAL
3861031X50
€ 54.50
21
3861006F00
ref: 21
E18, E22, <-38610-45
RELAY ASSY,TURNSIGNAL
3861006F00
€ 67.50
