FRAME COVER (MODEL W/X)

DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

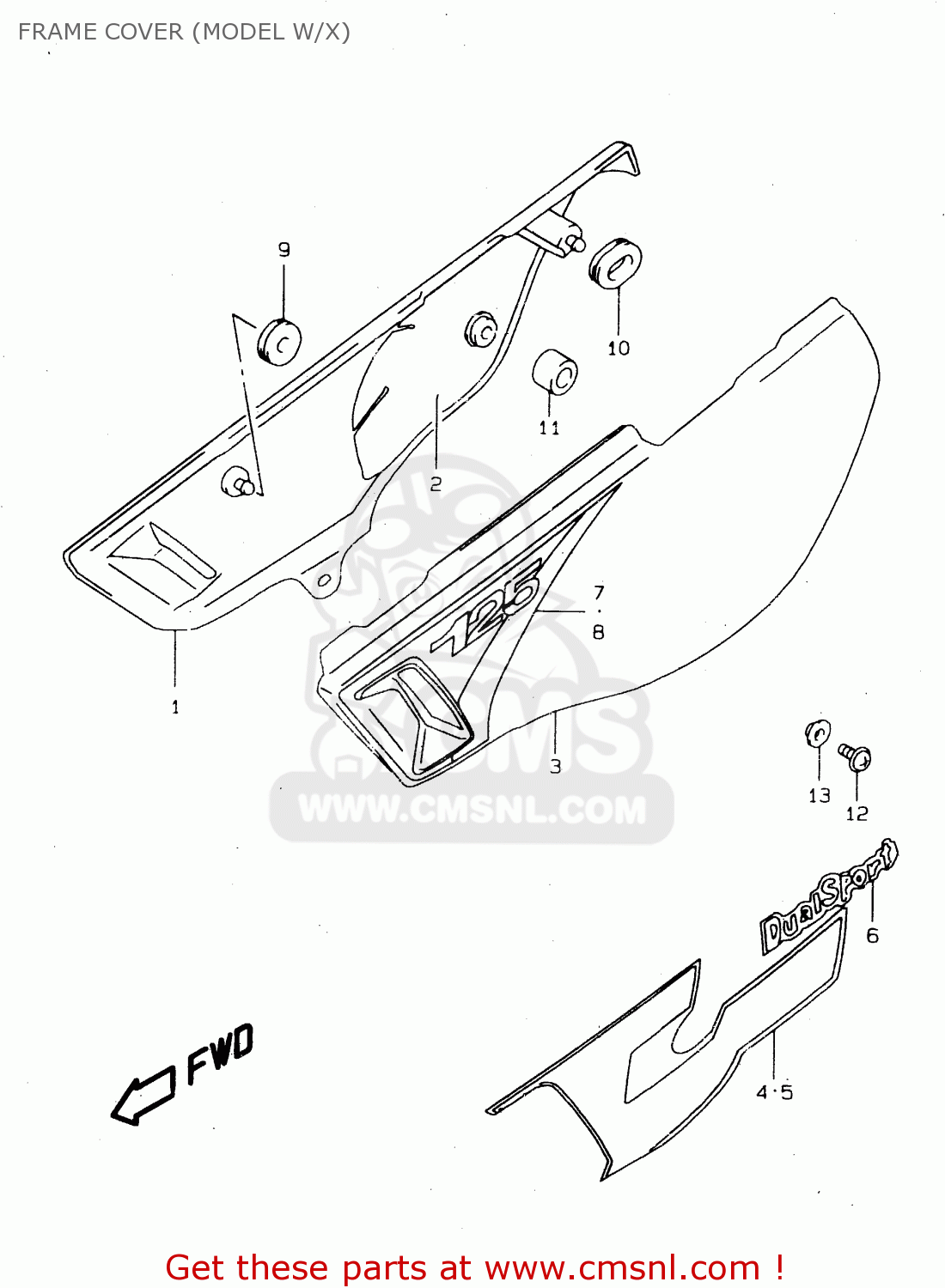

Frame cover (model w/x) diagram DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

FRAME COVER (MODEL W/X) DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
FRAME COVER (MODEL W/X) DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
FRAME COVER (MODEL W/X) DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1
4711144AA030H
ref: 1
FOR E3D, L3E, L9V
COVER,FRAME,R(WHITE)
4711144AA030H
€ 61.50
1
4711144AA0019
ref: 1
FOR 019
COVER, FRAME RH (BLACK)
€ 59.50
2
4716644AA0
ref: 2
SHIELD,FRAME COVER,R
€ 14.50
3
4721144AA030H
ref: 3
FOR E3D, L3E, L9V
COVER,FRAME,L(WHITE)
4721144AA030H
€ 42.00
3
4721144AA0019
ref: 3
FOR 019
COVER FRAME,L(
€ 40.50
4
6813544AC0J6Z
ref: 4
MODEL W FOR E3D
TAPE,FRAME COVER,RIGHT
€ 0.00
4
6813544AC0G0L
ref: 4
MODEL W FOR 019
TAPE,FRAME COVER,R
€ 29.00
5
6814544AC0J6Z
ref: 5
MODEL W FOR E3D
TAPE,FRAME COVER,LEFT
€ 0.00
5
6814544AC0G0L
ref: 5
MODEL W FOR 019
TAPE,FRAME COVER,L
€ 29.00
6
6813144A70J7B
ref: 6
MODEL W FOR E3D
EMBLEM,FRAME COVER
€ 0.00
6
6813144A70J7C
ref: 6
MODEL W FOR 019
EMBLEM,FRAME COVER
€ 16.50
7
6813544AD0L2Y
ref: 7
MODEL X FOR 019, L9V
TAPE,FRAME COVER,R
€ 24.50
7
6813544AD0L5C
ref: 7
MODEL X FOR L3E
TAPE,FRAME COVER,R
€ 23.50
8
6814544AD0L2Y
ref: 8
MODEL X FOR 019, L9V
TAPE, LH
€ 23.50
8
6814544AD0L5C
ref: 8
MODEL X FOR L3E
TAPE, LH
€ 23.00
9
0932008018
ref: 9
CUSHION
0932008018
€ 4.00
10
0932008029
ref: 10
CUSHION
0932008029
€ 2.50
11
0932110027
ref: 11
CUSHION
0932110027
€ 5.50
12
0913606017
ref: 12
SCREW(6X16)
0913606017
€ 2.50
13
0916906028
ref: 13
WASHER
0916906028
€ 2.00
