FRONT DAMPER

DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

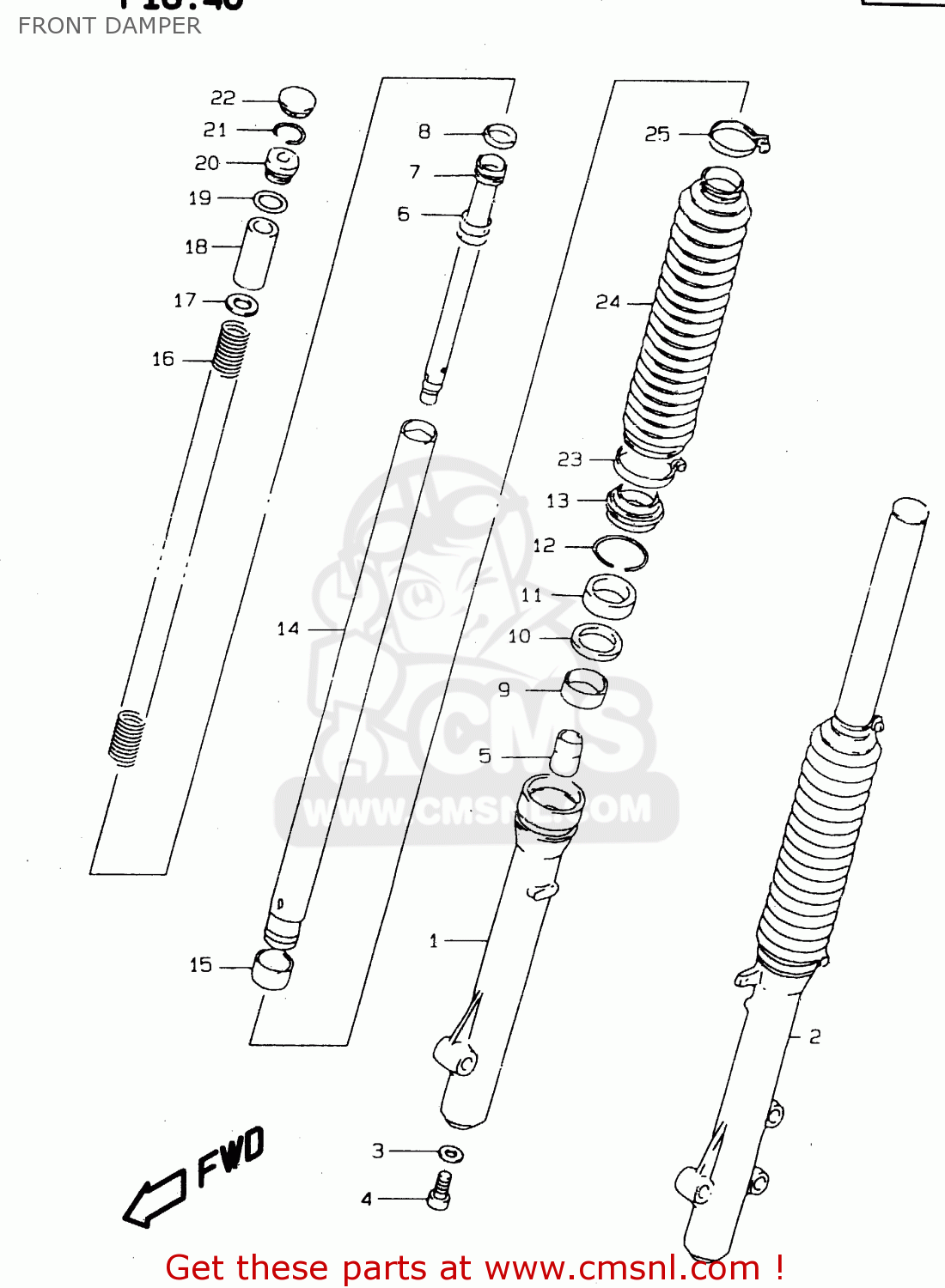

Front damper diagram DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

FRONT DAMPER DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
FRONT DAMPER DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
FRONT DAMPER DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
0
5110342AA0
ref: 0
DAMPER ASSY,FR FORK,R
€ 506.00
0
5110442AA0
ref: 0
DAMPER ASSY,FR FORK,L
5110442AA0
€ 506.00
1
5113101A01
ref: 1
TUBE,OUTER,R
5113101A01
€ 195.00
2
5114101A01
ref: 2
TUBE,OUTER,L
€ 175.00
3
5114836011
ref: 3
GASKET (NAS)
5114836011
€ 4.00
4
5114742AA0
ref: 4
BOLT,CENTER (8X18)
€ 3.00
5
5119543530
ref: 5
PIECE,OIL LOCK
5119543530
€ 12.50
6
5117701A00
ref: 6
SPRING,REBOUND
5117701A00
€ 2.50
7
5114642AA0
ref: 7
CYLINDER
€ 45.50
8
5119645200
ref: 8
RING,PISTON
5119645200
€ 5.50
9
5115233300
ref: 9
BUSH,GUIDE
5115233300
€ 11.50
10
5116830B00
ref: 10
SPACER,SEAL
5116830B00
€ 5.00
11
5115319D10
ref: 11
SEAL,OIL 35X48X11
5115319D10
€ 14.00
12
5115601A00
ref: 12
RING,OIL SEAL STOPPER
5115601A00
€ 3.50
13
5117301A00
ref: 13
SEAL,DUST
5117301A00
€ 10.00
14
5111001A30
ref: 14
TUBE,INNER
5111001A30
€ 242.00
15
5112133300
ref: 15
PISTON
5112133300
€ 10.50
16
5117142AA0
ref: 16
SPRING,MAIN
5117142AA0
€ 29.50
17
5119220510
ref: 17
SPRING,JOINT
5119220510
€ 2.00
18
5117642AA0
ref: 18
SPACER,SPRING
€ 5.50
19
5118131030
ref: 19
O RING
5118131030
€ 3.50
20
5117547400
ref: 20
SPRING SEAT B
5117547400
€ 5.50
21
5116947400
ref: 21
RING,STOPPER
5116947400
€ 2.50
22
5118931230
ref: 22
CAP
5118931230
€ 6.50
23
5157642AA0
ref: 23
BAND,BOOT LWR
5157642AA0
€ 5.00
24
5157101A0034S
ref: 24
MODEL R
BOOT
5157101A0034S
€ 37.50
24
5157101A0038K
ref: 24
MODEL S
BOOT
€ 0.00
24
5157101A00163
ref: 24
MODEL T
BOOT
5157101A00163
€ 40.00
24
5157101A00163
ref: 24
MODEL V FOR E3D, 019
BOOT
5157101A00163
€ 40.00
24
5157101A00163
ref: 24
MODEL W FOR E3D
BOOT
5157101A00163
€ 40.00
24
5157101A001LU
ref: 24
MODEL W FOR 019
BOOT(GRAY)
€ 37.50
24
5157101A00163
ref: 24
MODEL X FOR L3E
BOOT
5157101A00163
€ 40.00
24
5157101A001LU
ref: 24
MODEL X FOR 019, L9V
BOOT(GRAY)
€ 37.50
25
5157501A00
ref: 25
BAND
5157501A00
€ 6.50
