FUEL COCK

DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

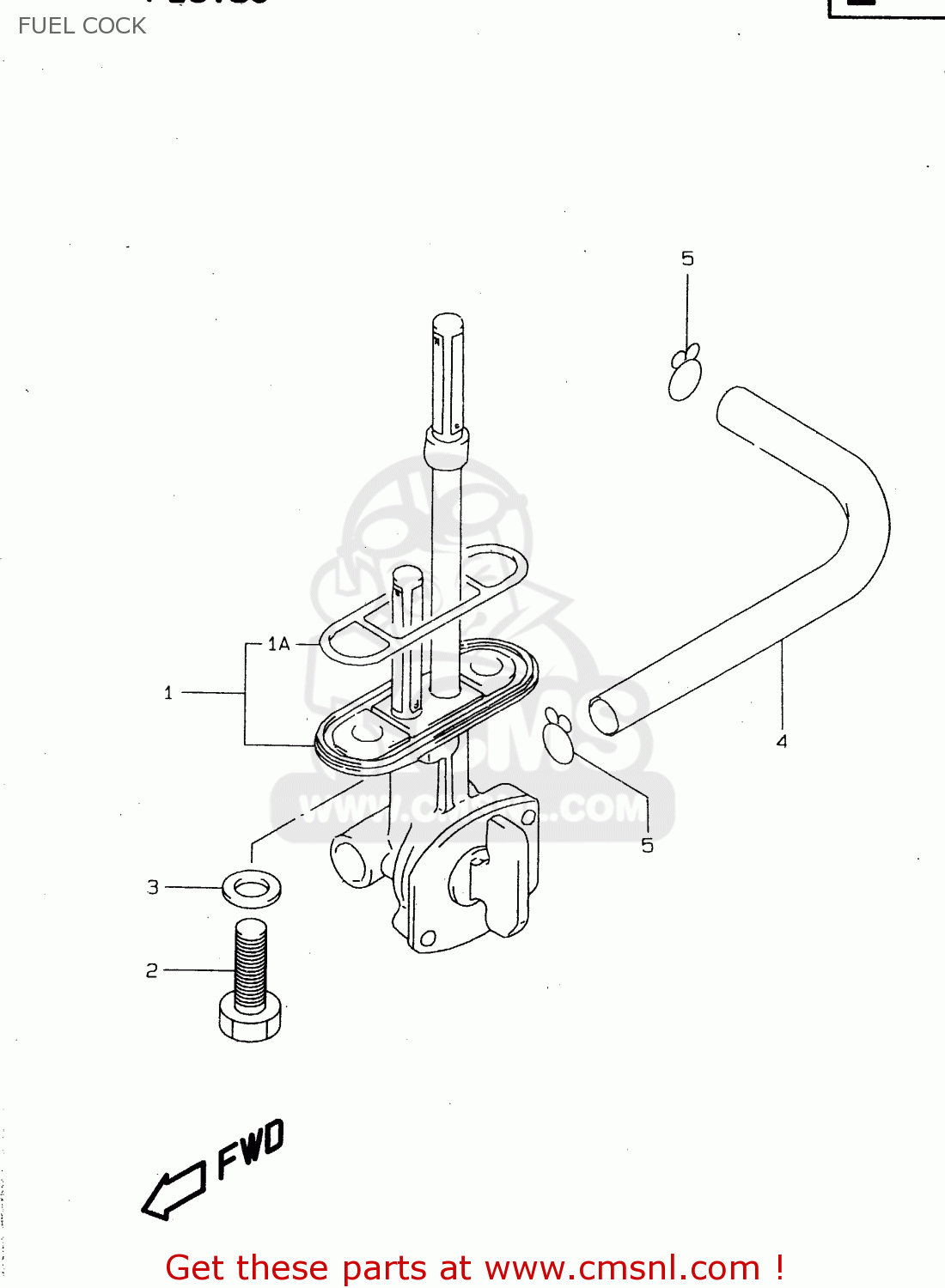

Fuel cock diagram DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

FUEL COCK DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

FUEL COCK DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

prices are in EUR

ref

part #

description

quantity

1

4430044AA0
ref: 1

COCK ASSY, FUEL

€ 77.50

1A

4434887420
ref: 1A

GASKET,JOINT (NAS)

€ 5.00

2

0912806006
ref: 2
MODEL R/S

BOLT(6X20)

€ 2.00

2

0912806057
ref: 2
MODEL T/V/W/X

BOLT(6X20)

€ 2.00

3

0916806026
ref: 3

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

4

0935250823600
ref: 4
L:600->160

HOSE(5X8.2X600)

€ 13.00

5

0940108401
ref: 5

CLIP

€ 1.50
