REAR COMBINATION LAMP

DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

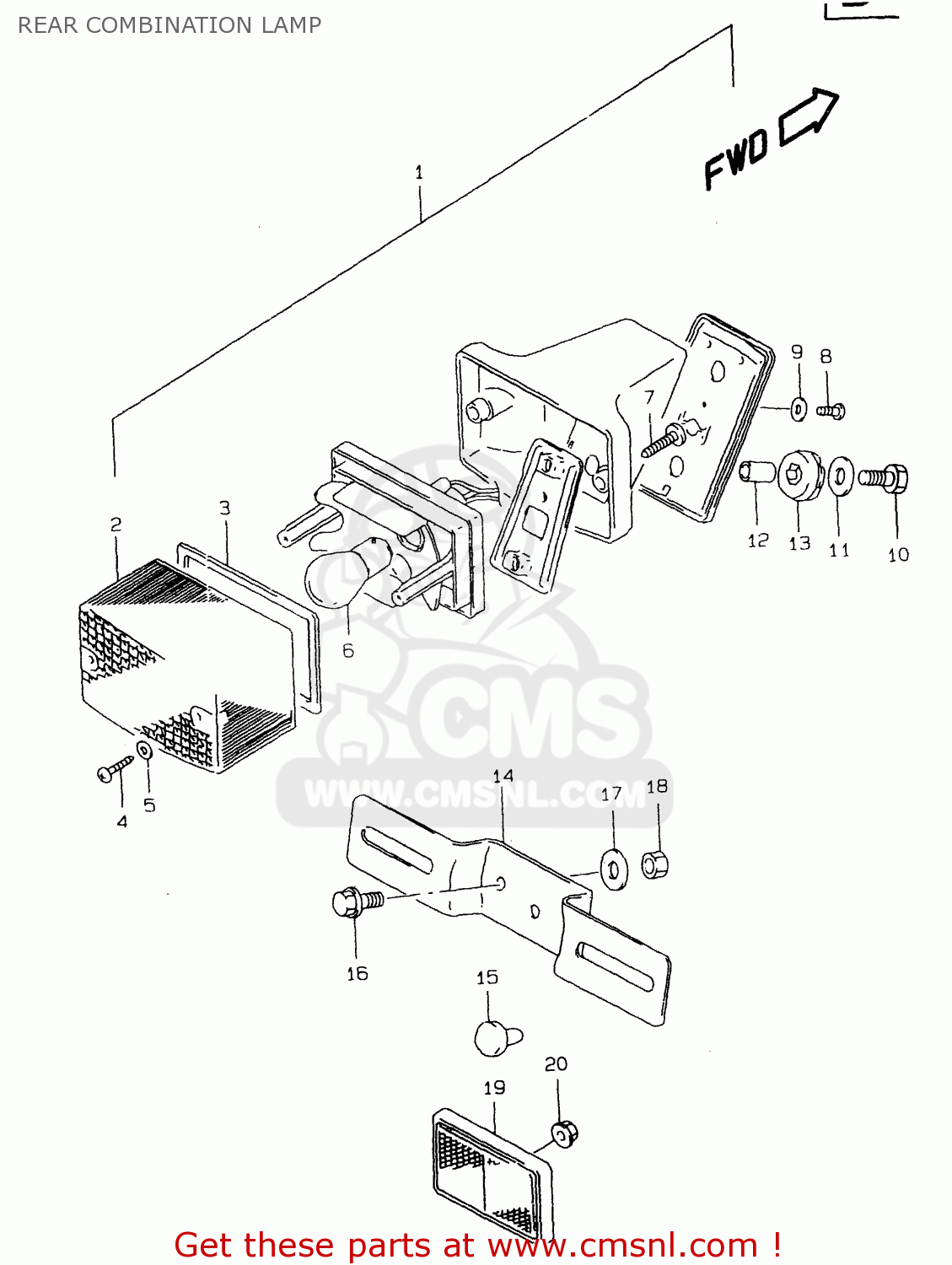

Rear combination lamp diagram DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

REAR COMBINATION LAMP DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
REAR COMBINATION LAMP DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
REAR COMBINATION LAMP DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1
3571042A10
ref: 1
<-35710-42A20
LAMP ASSY,RR COMBINATION
€ 132.00
2
3571236A70
ref: 2
LENS
3571236A70
€ 19.00
3
3571313600
ref: 3
GASKET,RR COMBI LAMP LENS (NAS)
3571313600
€ 3.50
4
0321104203
ref: 4
SCREW
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947112128
ref: 6
E1
BULB(12V21/5W,BF141-49642A)
0947112128
€ 6.00
6
0947112083
ref: 6
E4, E18, E22, E34
BULB(12V21/5W)
0947112083
€ 6.00
7
0321105255
ref: 7
SCREW
€ 2.50
8
0211203107
ref: 8
SCREW
0211203107
€ 1.50
9
0832201037
ref: 9
WASHER
0832201037
€ 2.00
10
0150006253
ref: 10
BOLT
0150006253
€ 2.50
11
0916006057
ref: 11
MODEL R/S/T
WASHER
€ 2.00
11
0916006109
ref: 11
MODEL V/W/X
WASHER(6.5X18X1.6)
0916006109
€ 2.00
12
0918006270
ref: 12
<-09180-06270
SPACER(6.5X9X17.5)
€ 0.00
13
0932009015
ref: 13
CUSHION
0932009015
€ 2.50
14
3592714D30
ref: 14
BRACKET,LICENSE PLATE
€ 0.00
15
0932106026
ref: 15
E1, E18, E22
CUSHION
0932106026
€ 3.50
15
0932106030
ref: 15
E4, E34
CUSHION
0932106030
€ 3.00
16
0155006163
ref: 16
BOLT
0155006163
€ 2.50
17
0916006057
ref: 17
MODEL R/S/T
WASHER
€ 2.00
17
0916006109
ref: 17
MODEL V/W/X
WASHER(6.5X18X1.6)
0916006109
€ 2.00
18
0831000063
ref: 18
NUT 6MM
0831000063
€ 2.00
19
3597014A00
ref: 19
RR ASSY,RR
3597014A00
€ 15.50
20
0831610053
ref: 20
NUT
0831610053
€ 2.50
