FUEL TANK (MODEL X)

DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

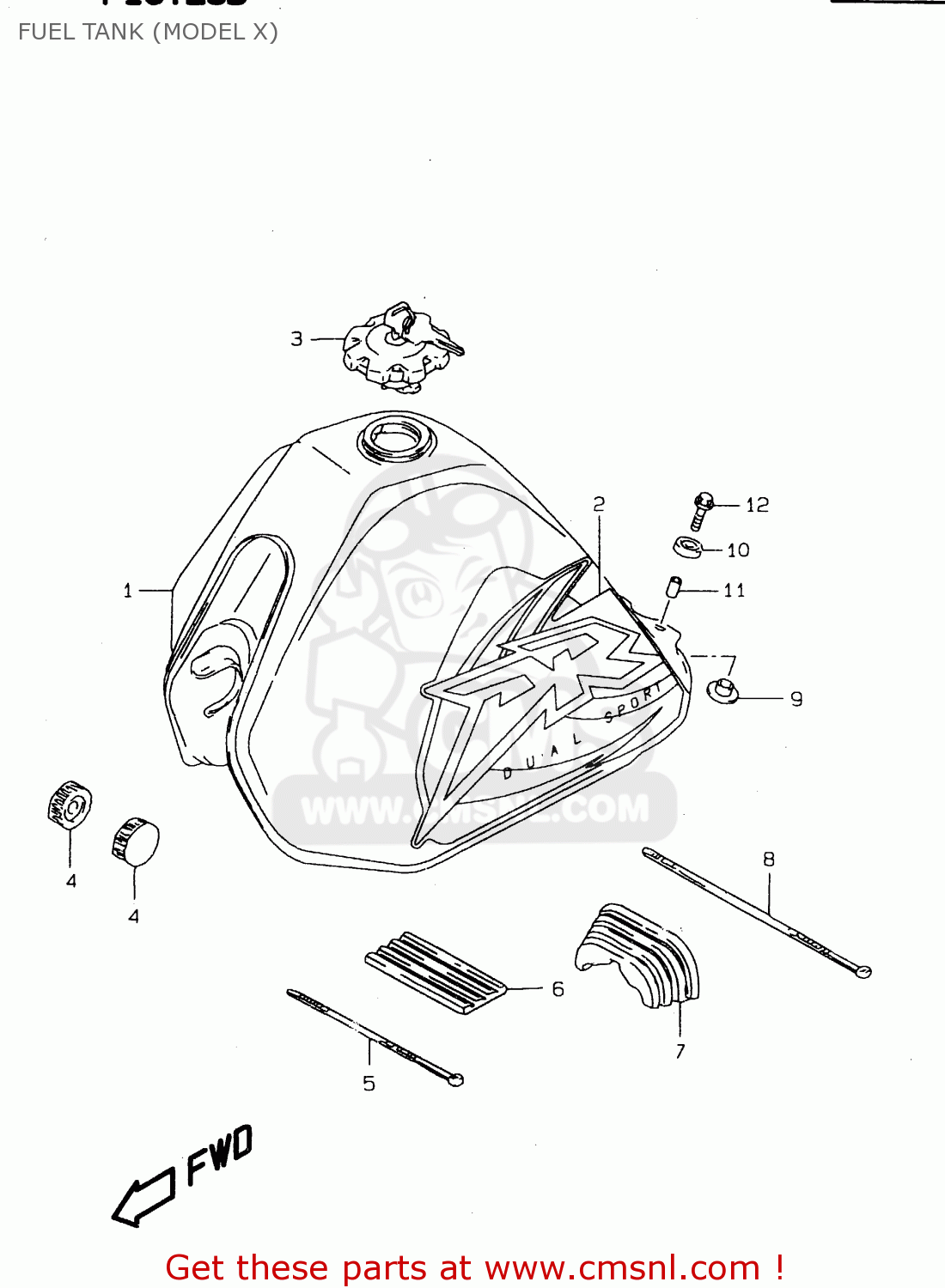

Fuel tank (model x) diagram DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

FUEL TANK (MODEL X) DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
FUEL TANK (MODEL X) DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
FUEL TANK (MODEL X) DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1
4910044AC0019
ref: 1
FOR 019
TANK ASSY, FUEL (BLACK)
€ 677.50
1
4910044AC030H
ref: 1
FOR L3E
TANK ASSEMBLY,FUEL
4910044AC030H
€ 677.50
1
4910044AC022U
ref: 1
FOR L9V
TANK ASSY,FUEL(MAROON)
€ 483.00
1
4910044AG0019
ref: 1
E18, E22 FOR 019
TANK ASSY, FUEL (BLACK)
€ 0.00
1
4910044AG030H
ref: 1
E18, E22 FOR L3E
TANK ASSY, FUEL (WHITE)
€ 677.50
1
4910044AG022U
ref: 1
E18, E22 FOR L9V
TANK ASSY, FUEL (MAROON)
€ 814.00
2
6811044AL0Y8R
ref: 2
FOR 019
TAPE SET,FUEL TANK
€ 134.50
2
6811044AL0Y8P
ref: 2
FOR 30H
TAPE SET,FUEL TANK
€ 141.00
2
6811044AL0Y9R
ref: 2
FOR 22U
TAPE SET,FUEL TANK
€ 0.00
3
4420012851
ref: 3
CAP SET,FUEL TANK
€ 126.00
4
0932910016
ref: 4
CUSHION
0932910016
€ 3.00
5
0940725402
ref: 5
CLAMP(L:250)
0940725402
€ 4.50
6
4454114500
ref: 6
CUSHION,FUEL TANK UPR FR
4454114500
€ 4.50
7
4454214A00
ref: 7
CUSHION,FUEL TANK RR
4454214A00
€ 8.50
8
0940730402
ref: 8
CLAMP(L:300)
0940730402
€ 3.50
9
0932010020
ref: 9
CUSHION
0932010020
€ 4.00
10
0932014013
ref: 10
CUSHION
0932014013
€ 3.00
11
0918006271
ref: 11
SPACER(6.5X9X18)
0918006271
€ 2.00
12
0157006303
ref: 12
BOLT
€ 2.00
