STARTER CLUTCH

DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

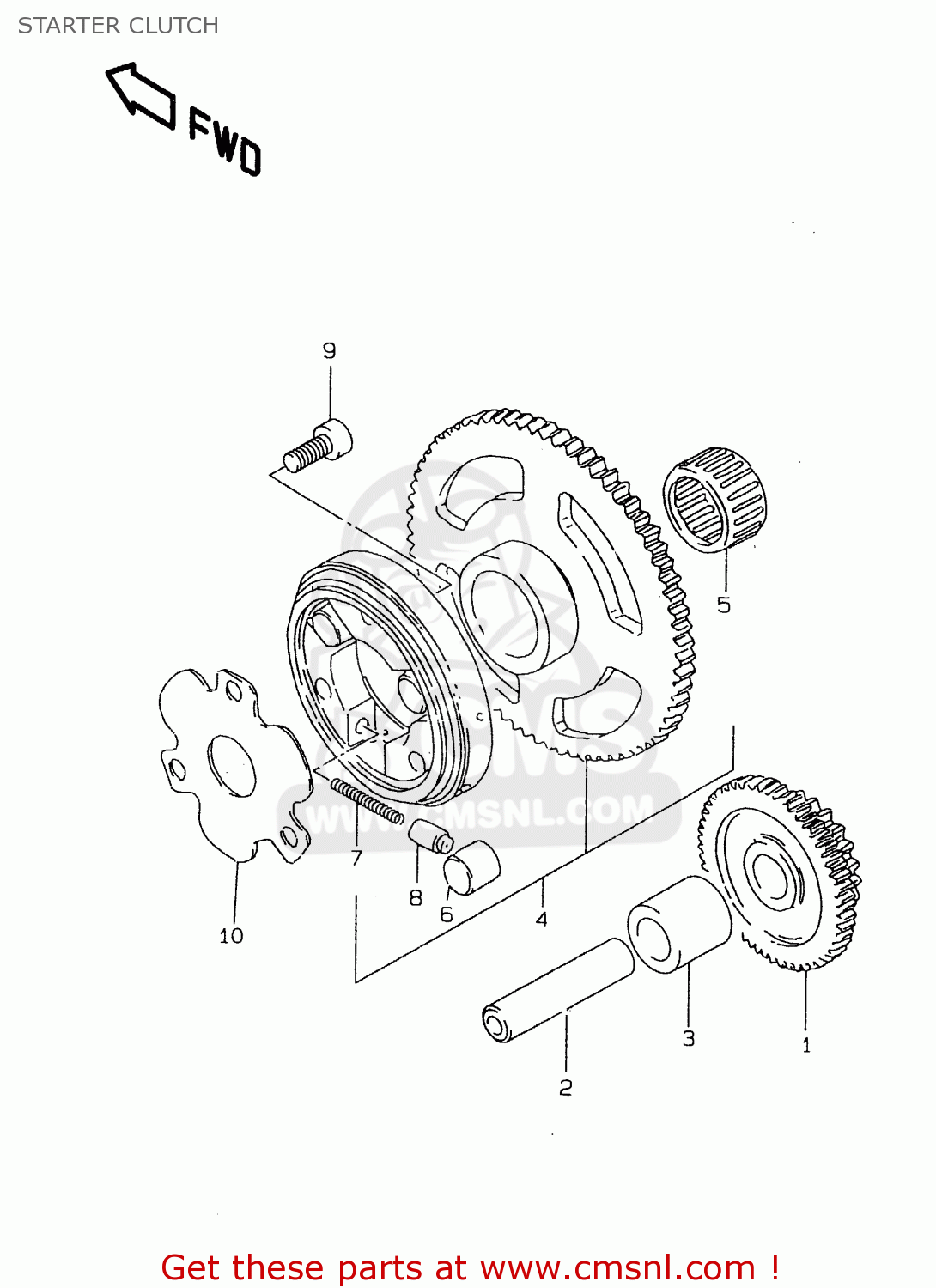

Starter clutch diagram DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

prices are in EUR

ref

part #

description

quantity

1261105300
ref: 1

GEAR,STARTER IDLER

€ 50.00

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

0918013006
ref: 3

SPACER(13X19X19)

€ 3.50

1260005872
ref: 4
MODEL R/S/T/V

CLUTCH SET,STARTER

€ 132.50

1260005874
ref: 4
MODEL W/X

CLUTCH SET,STARTER

€ 132.50

0926322031
ref: 5

BEARING(22X28X16)

€ 18.00

0926110003
ref: 6

ROLLER(10X11)

€ 2.50

0944003004
ref: 7

SPRING

€ 1.00

1263305300
ref: 8

PIECE,STARTER CLUTCH PUSH

€ 6.50

0713006163
ref: 9

BOLT,OIL FILLE

€ 3.00

1264905300
ref: 10

SHIM,STARTER CLUTCH HUB

€ 5.50
