FRONT FENDER (MODEL X)

DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

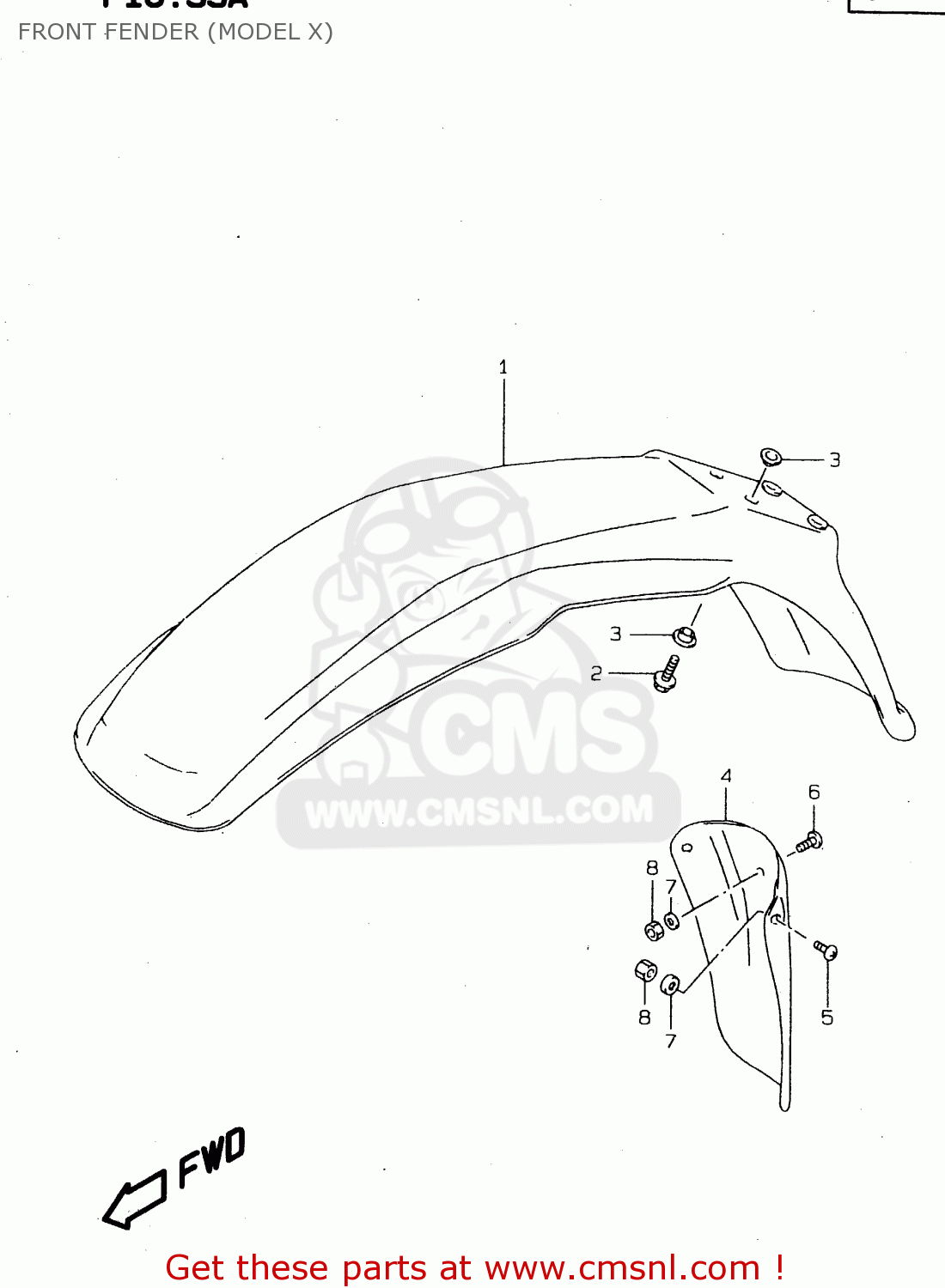

Front fender (model x) diagram DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

prices are in EUR

ref

part #

description

quantity

5311144A00019
ref: 1
FOR 019

FENDER,FR

€ 60.50

5311144A0030H
ref: 1
FOR L3E, L9V

FENDER,FR

€ 72.00

5311144A10019
ref: 1
E18, E22 FOR 019

FENDER,FRONT(B

€ 76.00

5311144A1030H
ref: 1
E18, E22 FOR L3E, L9

FENDER,FR

€ 60.50

0155006163
ref: 2

BOLT

€ 2.50

0916906054
ref: 3

WASHER

€ 2.00

5331014A40
ref: 4
E18, E22

MUDFLAP, FRONT FENDER

€ 0.00

0214206167
ref: 5
E18, E22

SCREW

€ 2.00

0214206207
ref: 6
E18, E22

SCREW

€ 2.00

0916006129
ref: 7
E18, E22

WASHER(6.5X16X1)

€ 2.00

0831610063
ref: 8
E18, E22

NUT

€ 2.50
