REAR WHEEL

DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

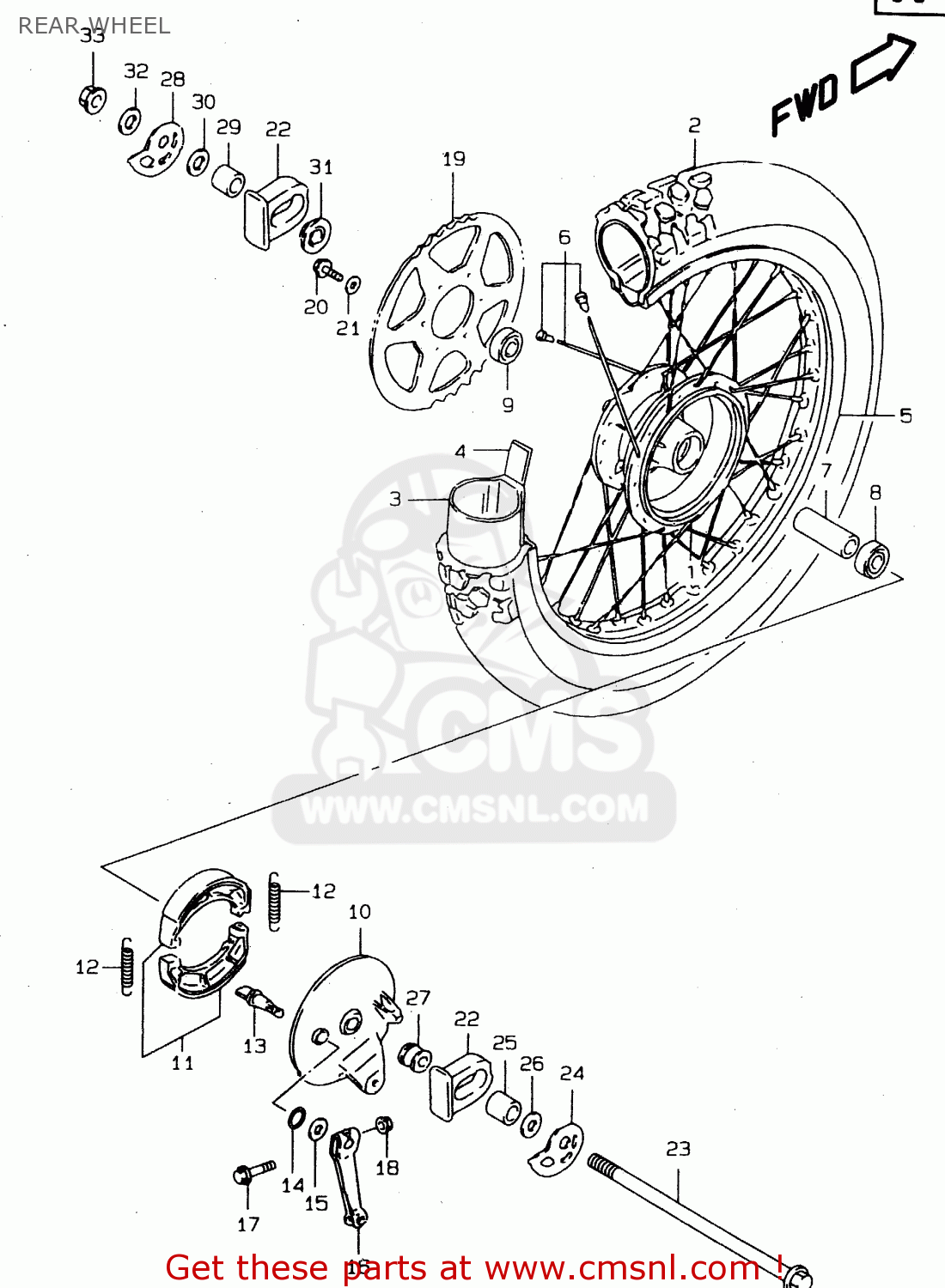

Rear wheel diagram DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

REAR WHEEL DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
REAR WHEEL DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
REAR WHEEL DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1
6411044A01
ref: 1
MODEL R
HUB,RR WHEEL
6411044A01
€ 298.00
1
6411044A10
ref: 1
MODEL S/T/V/W/X
HUB,RR WHEEL
€ 200.50
2
6511044AA0
ref: 2
TIRE,RR(90/90-18 51P)
€ 173.50
3
6520044AA0
ref: 3
TUBE ASSY,INNER
6520044AA0
€ 35.00
4
6526133030
ref: 4
PROTECTOR,INNER TUBE
6526133030
€ 5.50
5
6531144AA0
ref: 5
RIM,RR WHEEL(18X1.85 FE)
6531144AA0
€ 117.50
6
6532044AA0
ref: 6
SPOKE SET,RR WHEEL
6532044AA0
€ 43.50
7
0918015013
ref: 7
SPACER(15.3X21.7X107.5)
0918015013
€ 7.50
8
0814362027
ref: 8
BEARING
0814362027
€ 12.50
9
0812363027
ref: 9
BEARING
0812363027
€ 19.00
10
6421048000
ref: 10
MODEL R
PANEL,RR BRAKE ANCHOR
6421048000
€ 83.50
10
6421044A00
ref: 10
MODEL S/T/V/W/X
PANEL,RR BRAKE ANCHOR
6421044A00
€ 128.50
11
5440007870
ref: 11
SHOE SET,BRAKE (NAS)
5440007870
€ 35.00
12
0944307001
ref: 12
SPRING(L:34)
0944307001
€ 2.50
13
5444129305
ref: 13
CAM,BRAKE
5444129305
€ 13.00
14
0928014011
ref: 14
O RING(D:2.5,ID:13.8)
0928014011
€ 3.50
15
0916014055
ref: 15
WASHER(14.5X22X1.6)
0916014055
€ 2.50
16
6445130501
ref: 16
LEVER,RR BRAKE CAM
6445130501
€ 15.00
17
0155006403
ref: 17
BOLT
0155006403
€ 2.00
18
0831610063
ref: 18
NUT
0831610063
€ 2.50
19
6451144A02
ref: 19
SPROCKET,RR(NT:53)
6451144A02
€ 65.50
20
0910308048
ref: 20
BOLT(8X30)
0910308048
€ 3.50
21
0916408020
ref: 21
WASHER
0916408020
€ 2.50
22
6147044A00
ref: 22
CAP,RR SWINGING ARM
€ 7.50
23
6471144A11
ref: 23
AXLE,RR
6471144A11
€ 30.00
24
6141142A00
ref: 24
ADJUSTER,CHAIN,R
6141142A00
€ 7.00
25
6141344A00
ref: 25
SPACER,CHAIN ADJUSTER
6141344A00
€ 5.00
26
0916015002
ref: 26
WASHER(15.5X26X2.3)
0916015002
€ 2.00
27
6474105200
ref: 27
SPACER,RR AXLE,R
6474105200
€ 6.50
28
6142142A00
ref: 28
ADJUSTER,CHAIN,L
6142142A00
€ 7.00
29
6141344A00
ref: 29
SPACER,CHAIN ADJUSTER
6141344A00
€ 5.00
30
0916015002
ref: 30
WASHER(15.5X26X2.3)
0916015002
€ 2.00
31
6475005202
ref: 31
SPACER,RR AXLE,L
6475005202
€ 8.00
32
0916014033
ref: 32
WASHER
€ 3.00
33
0831931148
ref: 33
NUT
0831931148
€ 9.00
